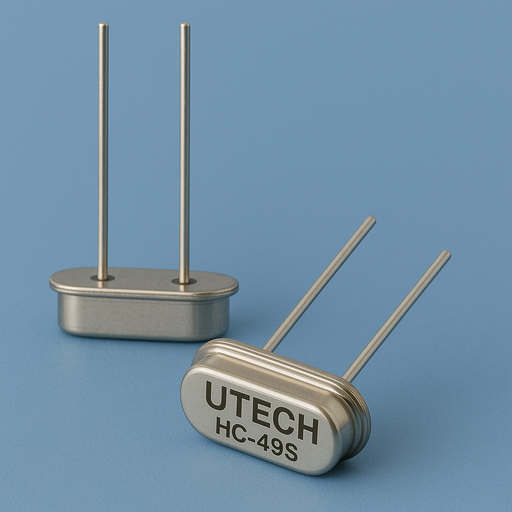

Bauform: HC-49/S
Frequency: 25,000000 MHz
Mode: fund.
Load Capacitance: 18 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±50 ppm
ESR max.: 20 Ohm
Operating Temp.: -20 / +70 °C

'-
UTECH Electronics Technology Co., Ltd.
-
Case Size: SMD6035-M4
Frequency: 12,000000 MHz
Mode: fund. AT
Load Capacitance: 16 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±30 ppm
Aging: ±2ppm max 1st year
ESR max.: 60 Ohm
Operating Temp.: -40°C/+85 °C
-
Package Unit: 1000pcs/reel

UTECH Electronics Technology Co., Ltd.

Case Size: SMD6035-C2 (2PAD)
Frequency: 12,000000 MHz
Mode: fund. AT
Load Capacitance: 18.0 pF
Tolerance at +25 °C: ±20 ppm
Tolerance over Temp.: ±30 ppm
Aging: ±2ppm max 1st year
ESR max.: 60 Ohm
Operating Temp.: -40°C/+85 °C

Package Unit: 1000pcs/reel

'-
UTECH Electronics Technology Co., Ltd.
Bauform: SMD6035-M2 (2PAD)
Frequency: 14.745600 MHz
Mode: fund. AT
Load Capacitance: xx pF
Tolerance at +25 °C: ±xx ppm
Tolerance over Temp.: ±xx ppm
Aging max.: ±3 ppm / 1 year
ESR max.: 60 Ohm
Operating Temp.: -20°C/+70°C

UTECH Electronics Technology Co., Ltd.

Marking:
Y24
Logo / Date code

Case Size: SMD6035-M4
Frequency: 10,368000 MHz
Mode: fund. AT
Load Capacitance: 10.0 pF Tolerance at +25 °C: ±10 ppm -
Tolerance over Temp.: ±10 ppm
> +-5 ppm max. over 0°C/+55°C
> +-10 ppm max. over +55°C/+65°C

Condition of unwanted responce: RN/Rr>2,5
Shunt Capacitance: C0 = 1,16 pF ± 20%
Motional Capacitance: C1 = 3,6 fF ± 15%
Pulling Sensitivity: S = 14,5 ppm/pF ± 20%
Aging: ±3ppm after 1 year, ± 5 ppm after 8 years
ESR max.: 60 Ohm
Operating Temp.: -10°C/+70 °C

Other Requirements: V42310-Z100-A1/-A6

Package Unit: 1000pcs/reel

SUZHOU UTECH TECHNOLOGY CO.,LTD
TR1000

'-
UTECH Electronics Technology Co., Ltd.
-
Case Size: SMD6035-M4 | QRS6
Frequency: 12.000000 MHz
Mode: fund. AT
Load Capacitance: 20 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging: ±3ppm max 1 year
ESR max.: 60 Ohm
Operating Temp.: -40°C/+85°C
-
Package Unit: 1000pcs/reel

UTECH TECHNOLOGY CO.,LTD

Case Size: SMD6035-M4 (4PAD)
Frequency: 16.000000 MHz
Mode: fund. AT
Load Capacitance: 20.0 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±100 ppm
Aging max.: ±5 ppm / 1 year
ESR max.: 50 Ohm
Operating Temp.: -40°C/+125°C

Package Unit: 1000pcs/reel

RoHS: Pb free - 2011/65/EU (RoHS 2) compliant

'-
UTECH Electronics Technology Co., Ltd.
Bauform: SMD6035-M4 (4PAD)
Frequency: 16.000000 MHz
Mode: fund. AT
Load Capacitance: 20 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging max.: ±3 ppm / 1 year
ESR max.: 60 Ohm
RoHS: Pb free - 2011/65/EU (RoHS 2) compliant
Operating Temp.: -40°C/+85°C
Package Unit: 1000pcs/reel

'-
UTECH Electronics Technology Co., Ltd.
-
Case Size: SMD6035-M4 (4PAD)
Frequency: 20.000000 MHz
Mode: fund. AT
Load Capacitance: 12 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging max.: ±3 ppm / 1 year
ESR max.: 60 Ohm
Operating Temp.: -40°C/+85°C
RoHS: Pb free - 2011/65/EU (RoHS 2) compliant
-
Package Unit: 1000pcs/reel

'-
UTECH Electronics Technology Co., Ltd.
-
Case Size: SMD6035-M4
Frequency: 20.736000 MHz
Mode: fund. AT
Load Capacitance: 15 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±10 ppm
Aging: ±3ppm max 1 year
ESR max.: 80 Ohm
Operating Temp.: -20°C/+70°C
-
Package Unit: 1000pcs/reel

Bauform: SMD3225-M4
Frequency: 26,000000 MHz
Mode: fund.
Load Capacitance: 12 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±17 ppm
ESR max.: 60 Ohm
Operating Temp.: -40 / +85 °C

UTECH Electronics Technology Co., Ltd.

Case Size: SMD6035-M4 (4PAD)
Frequency: 24.000000 MHz
Mode: fund. AT
Load Capacitance: 18.0 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging max.: ±3 ppm / 1 year
ESR max.: 50 Ohm
Operating Temp.: -40°C/+85°C
RoHS: Pb free - 2011/65/EU (RoHS 2) compliant

Package Unit: 1000 pcs/reel

UTECH Electronics Technology Co., Ltd.
Bauform: SMD6035-C2 (2PAD)
Frequency: 24.576000 MHz
Mode: fund. AT
Load Capacitance: 30 pF
Tolerance at +25 °C: ±5 ppm
Tolerance over Temp.: ±10 ppm
Aging max.: ±2 ppm / 1 year
ESR max.: 50 Ohm
RoHS: Pb free - 2011/65/EU (RoHS 2) compliant
Operating Temp.: -20°C/+70°C
Package Unit: 1000pcs/reel

'-
UTECH Electronics Technology Co., Ltd.
-
Case Size: SMD6035-M4 (4PAD)
Frequency: 25.000000 MHz
Mode: fund. AT
Load Capacitance: 18 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging max.: ±3 ppm / 1 year
ESR max.: 50 Ohm
Operating Temp.: -40°C/+85°C
RoHS: Pb free - 2011/65/EU (RoHS 2) compliant
-
Package Unit: 1000pcs/reel

Bauform: SMD3225-M4
Frequency: 27,000000 MHz
Mode: fund.
Load Capacitance: 16 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±50 ppm
ESR max.: 60 Ohm
Operating Temp.: -40 / +85 °C

Bauform: SMD3225-M4
Frequency: 26,000000 MHz
Mode: fund.
Load Capacitance: 12 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±15 ppm
ESR max.: 60 Ohm
Operating Temp.: -40 / +85 °C

Bauform: SMD3225-M4
Frequency: 30,000000 MHz
Mode: fund.
Load Capacitance: 12 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±100 ppm
ESR max.: 60 Ohm
Operating Temp.: -40 / +85 °C

Bauform: SMD5032-M4
Frequency: 10,000000 MHz
Mode: fund.
Load Capacitance: 16 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±15 ppm
ESR max.: 40 Ohm
Operating Temp.: -40 / +85 °C

Manufacturer: Epson Electronics

Epson Part No.: Q3102JC02000112

Typ: SMD-Oscillator SG-3030JC 32.768000KHZ B

Case size: SMD 10.50 x 5.80 x2.70 mm
Frequency: 32.768 kHz
Power Supply Voltage: 1.2 ~ 5.5 Volt
Output: CMOS
Frequency Stability: ±100 ppm
Operating Temp.: -40°C/+85°C

Packing: 250pcs/reel
