SUZHOU UTECH TECHNOLOGY CO.,LTD
Package Unit: 1000pcs/reel

SUZHOU UTECH TECHNOLOGY CO.,LTD
QRSD
TR1000

'-
UTECH Electronics Technology Co., Ltd.

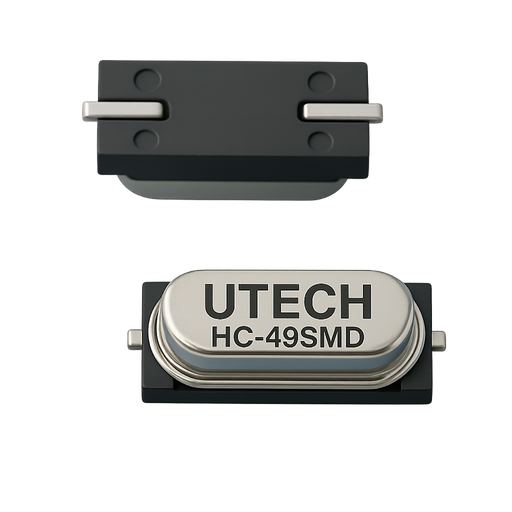

Case size: HC-49SMD / QRSD
Frequency: 8.000000 MHz
Mode: fund. AT
Load Capacitance: 30 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging: ±3 ppm max. 1 year
ESR max.: 50 Ohm
Operating Temp.: -20°C/+70°C

'-
UTECH Electronics Technology Co., Ltd.
Case size: HC-49SMD / QRSD
Frequency: 8.000000 MHz
Mode: fund. AT
Load Capacitance: 20 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±50 ppm
Aging: ±5 ppm max. 1 year
ESR max.: 60 Ohm
Operating Temp.: -20°C/+70°C

'-
UTECH Electronics Technology Co., Ltd.
Case size: HC-49SMD / QRSD
Frequency: 8.192000 MHz
Mode: fund. AT
Load Capacitance: 12 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±50 ppm
Aging: ±3 ppm max. 1 year
ESR max.: 60 Ohm
Operating Temp.: -40°C/+85°C

UTECH TECHNOLOGY CO.,LTD

Case size: HC-49SMD / QRSD
Frequency: 9.830400 MHz
Mode: fund. AT
Load Capacitance: 16 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging: ±2 ppm max. 1 year
ESR max.: 60 Ohm
Operating Temp.: -40°C/+85°C

Package Unit: 1000pcs/reel

Manufacturer: UTECH Electronics Tech. Co., Ltd.

Series: QRSD
Case size: HC-49SMD3 (11.40 x 4.70 x 4.20)
Frequency: 10.368000 MHz
Mode: fund. AT
Load Capacitance: 10 pF
Tolerance at +25°C: ±10 ppm
Tolerance over Temp.: ±10 ppm
Aging: ±3 ppm max. first year, ±10 ppm after 8 years
ESR max.: 40 Ohm

Condition of unwanted responce: RN/Rr < 2.5
Shunt Capacitance: C0 = 2.4 pF ±20%
Motional Capacitance: C1 = 9.4 fF ±15%
Pulling Sensitivity: S = 31,0 ppm/pF ±20%

Operating Temp.: -10°C/+60°C

Package Unit: 1000pcs/reel

'-

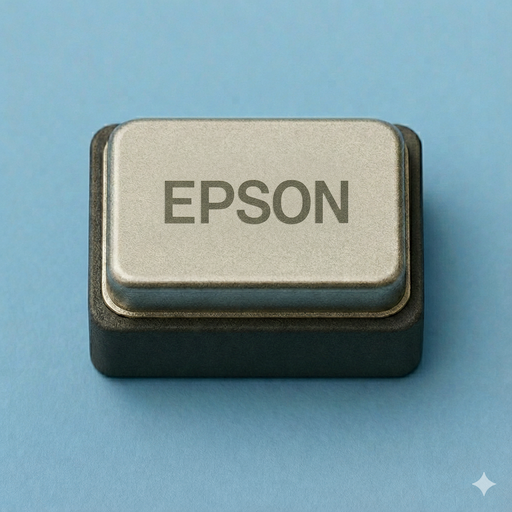

Manufacturer: EPSON
-
SMD-Oscillator
SG8003CA3.3
No: SG-8003CA-25.008000MHZ-PCL
* programmiert
* ohne Frequenz Aufdruck

Bauform: SMD5032-M4
Frequency: 8,000000 MHz
Mode: fund.
Load Capacitance: 16 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±10 ppm
ESR max.: 40 Ohm
Operating Temp.: -20 / +70 °C

'-
UTECH Electronics Technology Co., Ltd.
-
Case Size: SMD3225-M4
Frequency: 13.560000 MHz
Mode: fund. AT
Load Capacitance: 16 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±30 ppm
Aging: ±3ppm max. 1 year
ESR max.: 60 Ohm
Operating Temp.: -40°C/+85°C
-
Package Unit: 3000pcs/reel

SUZHOU UTECH TECHNOLOGY CO.,LTD
QRS3
TR3000

Bauform: SMD3225-M4
Frequency: 14,318180 MHz
Mode: fund.
Load Capacitance: 12 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±30 ppm
ESR max.: 60 Ohm
Operating Temp.: -20 / +70 °C

Bauform: SMD3225-M4
Frequency: 14,745600 MHz
Mode: fund.
Load Capacitance: 10 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±15 ppm
ESR max.: 60 Ohm
Operating Temp.: -40 / +85 °C

Bauform: SMD3225-M4
Frequency: 20,000000 MHz
Mode: fund.
Load Capacitance: 16 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±50 ppm
ESR max.: 60 Ohm
Operating Temp.: -40 / +85 °C

SUZHOU UTECH TECHNOLOGY CO.,LTD
TR3000

Bauform: SMD3225-M4
Frequency: 27,000000 MHz
Mode: fund.
Load Capacitance: 12 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±30 ppm
ESR max.: 60 Ohm
Operating Temp.: -40 / +85 °C

Bauform: SMD3225-M4
Frequency: 18,000000 MHz
Mode: fund.
Load Capacitance: 16 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±100 ppm
ESR max.: 60 Ohm
Operating Temp.: -40 / +85 °C

Bauform: SMD3225-M4
Frequency: 18,432000 MHz
Mode: fund.
Load Capacitance: 12 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±30 ppm
ESR max.: 60 Ohm
Operating Temp.: -20 / +70 °C

TECH Electronics Technology Co., Ltd.

Package: SMD3225-M4
Frequency: 20.000000 MHz
Mode: fund. AT
Load Capacitance: 12.0 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.:±15 ppm
Aging: ±2 ppm max. 1 year
ESR max.: 40 Ohm
Operating Temp.: -40°C/+85°C

Package Unit: 3000pcs/reel

Bauform: SMD3225-M4
Frequency: 20,000000 MHz
Mode: fund.
Load Capacitance: 12 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±100 ppm
ESR max.: 60 Ohm
Operating Temp.: -40 / +85 °C
