UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator QOS3
Case size: SMD3225-M4
Frequency: 98.304000 MHz
Power Supply Voltage: 1.8 Volt
Frequency Stability *: ±50 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3

Package Unit: 3000 pcs/reel

* All condition inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change, output load change, aging, shock and vibration.

SUZHOU UTECH TECHNOLOGY CO.,LTD

Typ: SMD-Oscillator HCMOS
Case size: SMD3225-M4
Frequency: 25.000000 MHz
Power Supply Voltage: 1.8 Volt ±5%
Input Current: 10mA max.
Frequency Stability *: ±50 ppm
Symmetry: 40% to 60% typ.
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 15pF typ.

Package Unit: 3000pcs/reel

UTECH TECHNOLOGY CO.,LTD

Typ: SMD-Oscillator HCMOS
Case size: SMD1612-M4 | (1.6 × 1.2 × 0.7 mm max.)
Frequency: 25.000000 MHz
Power Supply Voltage: 3.3V ±0.3V
Frequency Stability *: ±30 ppm OA
Operating Temp.: -40°C/+85°C

Package Unit: 3000pcs/reel

'-
UTECH Electronics Technology Co., Ltd.
-
Typ: SMD-Oscillator HCMOS - QOS3
Case size: SMD3225-M4
Frequency: 2.000000 MHz
Power Supply Voltage: 3.3 Volt ±5%
Input Current: 25 mA max.
Frequency Stability *: ±50 ppm
Symmetry: 50% ±5% typ.
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 15pF typ.
Pin 1, Tri-state function:
... Pin 1=H or open ... Output active at Pin3
... Pin1=L ... high impedance at Pin3
-
* All condition inclusive of calibration tolerance at 25°C,
operating temperature range, input voltage change,
output load change, aging, shock and vibration

Manufacturer: UTECH Electronics Technology Co., Ltd.

Series: Oscillator SMD3225-M4
Dimension (mm): 3.2 x 2.5 x 1.0
Frequency: 20.000000 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Frequency Tolerance: ±50 ppm
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
E/D: High = active

Package Unit: 3000pcs/reel

'-
UTECH Electronics Technology Co., Ltd.
-
Typ: SMD-Oscillator HCMOS - QOS3
Case size: SMD3225-M4
Frequency: 24.000000 MHz
Power Supply Voltage: 3.3 Volt ±5%
Input Current: 5 mA max.
Frequency Stability *: ±50 ppm
Symmetry: 45% to 55% typ.
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 15pF typ.
Pin 1, Tri-state function:
... Pin 1=H or "open" ... Output active at Pin 3
... Pin1=L ... high impedance at Pin 3
-
* All condition inclusive of calibration tolerance at 25°C,
operating temperature range, input voltage change,
output load change, aging, shock and vibration
-
======================================
Zolltarif-Nr.: 8541 60 00 00
ECCN Nr.: EAR99
Country of Origin: China - CN
Weight: ~20mg/pc
======================================

'-
Manufacturer: UTECH Electronics Technology Co., Ltd.
-
Series: Oscillator SMD3225-M4
Dimension (mm): 3.2 x 2.5 x 1.0
Frequency: 25.000000 MHz
Supply Voltage (VDD): +1.8 VDC ±10%
Frequency Tolerance: ±50 ppm OA
Operating Temperature: -40°C to +105°C
Storage Temperature: -55°C to +125°C
E/D: High = active
-
Package Unit: 3000pcs/reel

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator HCMOS - QOS3
Case size: SMD3225-M4
Frequency: 27.000000 MHz
Power Supply Voltage: 3.3 Volt ±5%
Input Current: 5 mA max.
Frequency Stability *: ±25 ppm
Symmetry: 45% to 55% typ.
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 15pF typ.
Pin 1, Tri-state function:
... Pin 1=H or "open" ... Output active at Pin 3
... Pin1=L ... high impedance at Pin 3

* All condition inclusive of calibration tolerance at 25°C,
operating temperature range, input voltage change,
output load change, aging, shock and vibration

'-
UTECH Electronics Technology Co., Ltd.
-
Typ: SMD-Oscillator HCMOS - QOS3
Case size: SMD3225-M4
Frequency: 29.491200 MHz
Power Supply Voltage: 5.0 Volt ±5%
Input Current: 30 mA max.
Frequency Stability *: ±50 ppm
Symmetry: 50% ±5% typ.
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 15pF typ.
Pin 1, Tri-state function:
.... Pin 1=H or open ... Output active at Pin3
.... Pin1=L ... high impedance at Pin3
-
* All condition inclusive of calibration tolerance at 25°C, operating temperature range,
input voltage change, output load change, aging, shock and vibration.

SUZHOU UTECH TECHNOLOGY CO.,LTD
Package Unit: 3000pcs/reel

Manufacturer: UTECH TECHNOLOGY CO.,LTD

Series: Oscillator SMD3225-M4
Dimension (mm): 3.2 x 2.5 x 1.0
Frequency: 36.000000 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Frequency Tolerance: ±30 ppm OA
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
E/D: High = active

Package Unit: 3000pcs/reel

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator QOS3
Case size: SMD3225-M4
Frequency: 48.000000 MHz
Power Supply Voltage: 3.3 Volt
Frequency Stability *: ±50 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3

Package Unit: 3000pcs/reel

* All condition inclusive of calibration tolerance at 25°C, operating temperature range,
input voltage change, output load change, aging, shock and vibration.

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator HCMOS - QOS3
Case size: SMD3225-M4
Frequency: 10.000000 MHz
Power Supply Voltage: 5.0 Volt ±10%
Frequency Stability *: ±30 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.

Pin #1: Tri-State | Pin #2: GND | Pin #3: Output | Pin#4: VCC

Package Unit: 3000pcs/reel

* All condition inclusive of calibration tolerance at 25°C, operating temperature range,
input voltage change, output load change, aging, shock and vibration.

'-
Manufacturer: Utech Technology Co., Ltd.
-
Series: Oscillator SMD3225-M4
Type: QOS3
Dimension (mm): 3.2 x 2.5 x 1.0
Frequency: 12.288000 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Load(Impedance): 15 pF ±1.5pF
CMOS/TTL, Tristate
Icc = 10 mA max., 7 mA typ.
Frequency Tolerance OA: ±25 ppm*
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
-
Package Unit: 3000pcs/reel
-
*(Incl. Freq. Tolerance, Temp., Supply Voltage and Load)

'-
QOS3
-
Manufacturer: Utech Technology Co., Ltd.
-
Series: Oscillator SMD3225-M4
Type: QOS3
Dimension (mm): 3.2 x 2.5 x 1.0
Frequency: 24.576000 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Load(Impedance): 15 pF ±1.5pF
CMOS/TTL, Tristate
Icc = 10 mA max., 7 mA typ.
Frequency Tolerance OA: ±30 ppm*
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
-
Package Unit: 3000pcs/reel
-
*(Incl. Freq. Tolerance, Temp., Supply Voltage and Load)

'-
UTECH Electronics Technology Co., Ltd.
-
Typ: SMD-Oscillator HCMOS - QOS3
Case size: SMD3225-M4
Frequency: 25.000000 MHz
Power Supply Voltage: 3.3 Volt
Frequency Stability *: ±25 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3
-
* All condition inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change, output load change, aging, shock and vibration.
-
Package Unit: 3000pcs/reel

'-

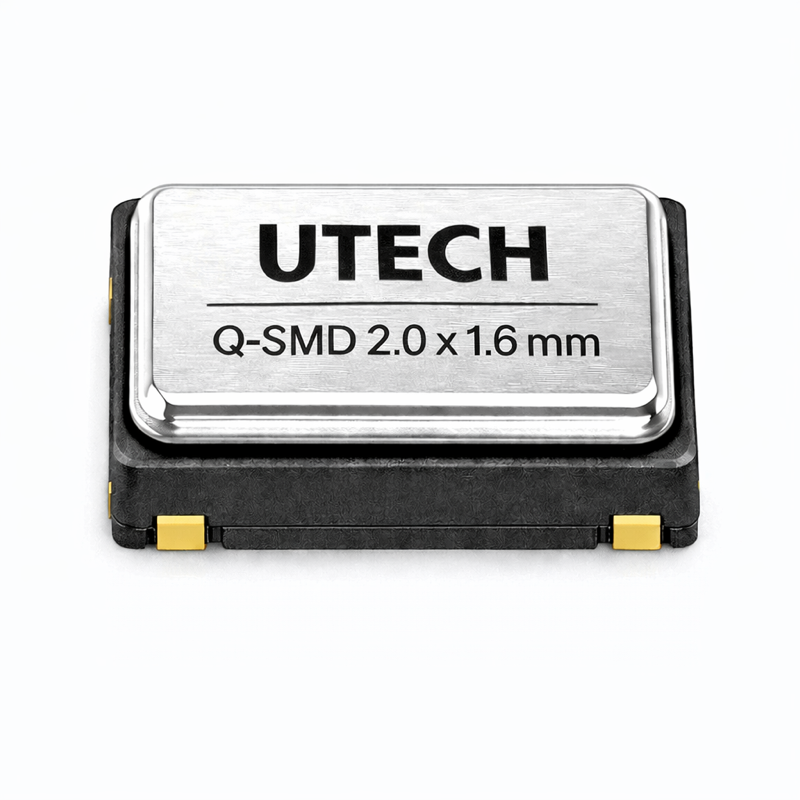

UTECH Electronics Technology Co., Ltd.
Bauform: SMD2016-M4
Frequency: 48.000000 MHz
Mode: fund. AT
Load Capacitance: 8 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±12 ppm
Aging: ±3ppm max. 1 year
ESR max.: 50 Ohm
Operating Temp.: -30°C/+85°C

SUZHOU UTECH TECHNOLOGY CO.,LTD
Package Unit: 3000pcs/reel

UTECH TECHNOLOGY CO.,LTD

Typ: SMD-Oscillator HCMOS - QOS3
Case size: SMD3225-M4
Frequency: 40.000000 MHz
Power Supply Voltage: 1.8~3.6 Volt
Frequency Stability *: ±50 ppm
Operating Temp.: -40°C/+105°C
Output Load (HCOMS): 30pF max., 15pF typ.

Pin #1: Tri-State | Pin #2: GND | Pin #3: Output | Pin#4: VCC

Package Unit: 3000pcs/reel

* All condition inclusive of calibration tolerance at 25°C,
operating temperature range, input voltage change,
output load change, aging, shock and vibration.

Case Size: SMD3215-C2
Dimension: 3.2 x 1.5 x 0.9mm
Frequency: 32.768 kHz
Mode: XY
Load Capacitance: 12.5 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: f (ppm) = TC · (25 °C - T)²
.............................................……[TC: -0,0450ppm/°C² max.]
ESR max.: 80000 Ohm
Operating Temp.: -40°C/+85°C

Package Unit: 3000pcs/reel

SUZHOU UTECH TECHNOLOGY CO.,LTD

Series: Oscillator SMD3225-M4 Type: kHz / AT characteristic
Dimension (mm): 3.2 x 2.5 x 1.00
Frequency: 32.768 kHz
Supply Voltage (VDD): +1.8 VDC ±10%
Frequency Tolerance: ±25 ppm "Over All" *
Supply Current max.: 0.5 mA
Output Load: HCMOS
Start-up Time max.: 5 mS
Output Symmetry: 50% ±5%
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
E/D: High = active

RoHS: Pb free - 2011/65/EU (RoHS 2) compliant

Package Unit: 3000pcs/reel

* Definition Tolerance „Over All“: Including at +25°C, Over
Temperature Range, Supply Voltage Change, Shock and Vibration,
Aging 1st year

'-
UTECH Electronics Technology Co., Ltd.
-
Series: Oscillator SMD3225-M4 Type: kHz / AT characteristic
Dimension (mm): 3.2 x 2.5 x 1.00
Frequency: 32.768 kHz
Supply Voltage (VDD): +3.3 VDC ±10%
Frequency Tolerance: ±20 ppm "Over All" *
Supply Current max.: 10 mA
Output Load: LVCMOS
Start-up Time max.: 5 mS
Output Symmetry: 50% ±5%
Operating Temperature: -20°C to +70°C
Storage Temperature: -55°C to +125°C
E/D: High = active
-
Package Unit: 500pcs/reel
-
* Definition Tolerance „Over All“: Including at +25°C, Over
Temperature Range, Supply Voltage Change, Shock and Vibration,
Aging 1st year

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator HCMOS - QOS3
Case size: SMD3225-M4
Frequency: 5.000000 MHz
Power Supply Voltage: 5.0 Volt ±10%
Frequency Stability *: ±25 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.

Pin #1: Tri-State | Pin #2: GND | Pin #3: Output | Pin#4: VCC

Package Unit: 3000pcs/reel

* All condition inclusive of calibration tolerance at 25°C, operating temperature range,
input voltage change, output load change, aging, shock and vibration.

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator HCMOS - QOS3
Case size: SMD3225-M4
Frequency: 15.000000 MHz
Power Supply Voltage: 5.0 Volt ±10%
Frequency Stability *: ±100 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.

Pin #1: Tri-State | Pin #2: GND | Pin #3: Output | Pin#4: VCC

Package Unit: 3000pcs/reel

* All condition inclusive of calibration tolerance at 25°C, operating temperature range,
input voltage change, output load change, aging, shock and vibration.

'-
UTECH Electronics Technology Co., Ltd.
-
Typ: SMD-Oscillator HCMOS - QOS3
Case size: SMD3225-M4
Frequency: 100.000000 MHz
Power Supply Voltage: 3.3 Volt ±15%
Input Current: 20 mA max.
Frequency Stability *: ±50 ppm
Symmetry: 45% to 55% typ.
Operating Temp.: -40°C/+105°C
Output Load (HCOMS): 15pF typ.
Pin 1, Tri-state function:
... Pin 1=H or "open" ... Output active at Pin 3
... Pin1=L ... high impedance at Pin 3
-
* All condition inclusive of calibration tolerance at 25°C,
operating temperature range, input voltage change,
output load change, aging, shock and vibration

SUZHOU UTECH TECHNOLOGY CO.,LTD
O-SMD3225-M4
