UTECH Electronics Technology Co., Ltd.

Case size: HC-49SMD / QRSD
Frequency: 11.059200 MHz
Mode: fund. AT
Load Capacitance: 16 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±50 ppm
Aging: ±3 ppm max. 1 year
ESR max.: 40 Ohm
Operating Temp.: -40°C/+85°C

Package Unit: 1000pcs/reel

UTECH Technology Co., Ltd.
Case size: HC-49/SMD
Frequency: 12.000000 MHz
Mode: fund. AT
Load Capacitance: 10 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±50 ppm
Aging: ±3 ppm max. 1 year
ESR max.: 40 Ohm
Operating Temp.: -20°C/+70°C
RoHS : Pb free - 2011/65/EU (RoHS 2) compliant
Package Unit: 1000pcs/reel

'-
UTECH Electronics Technology Co., Ltd.
-
Case size: HC-49SMD / QRSD
Frequency: 7.372800 MHz
Mode: fund. AT
Load Capacitance: 20 pF
Tolerance at +25 °C: ±20 ppm
Tolerance over Temp.: ±20 ppm
Aging: ±3 ppm max. 1 year
ESR max.: 60 Ohm
Operating Temp.: -40°C/+85°C
-
Package Unit: 1000pcs/reel

Bauform: SMD3225-M4
Frequency: 14,745600 MHz
Mode: fund.
Load Capacitance: 12 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±100 ppm
ESR max.: 60 Ohm
Operating Temp.: -40 / +85 °C

Bauform: SMD3225-M4
Frequency: 13,560000 MHz
Mode: fund.
Load Capacitance: 16 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±50 ppm
ESR max.: 60 Ohm
Operating Temp.: -40 / +85 °C

'-
UTECH Electronics Technology Co., Ltd.
-
Type: THT HC-49/U
Frequency: 36.000000 MHz
Mode: fund. AT
Load Capacitance: 20 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging: ±3ppm max. 1 year
ESR max.: 30 Ohm
Operating Temp.: -20°C/+70°C
-
Package Unit: 250pcs/Bag

Series: KX-1
Case size: HC-49SMD (12.80 x 5.00 x 4.10 mm)
Frequency: 3.927250 MHz
Mode: fund. AT
Load Capacitance: 18.0 pF
Tolerance at +25°C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging: ±3 ppm max. first year
ESR max.: 80 Ohm
Operating Temp.: -40°C/+85°C

Package Unit: 1000pcs/reel

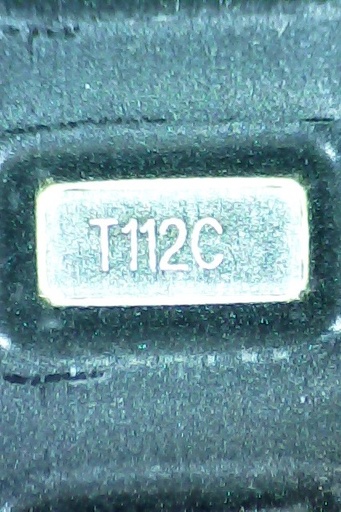

Case Size: M3 | SMD3215-C2
Frequency: 32.768 kHz
Mode: XY
Load Capacitance: 9.0 pF
Tolerance at +25 °C: ±20 ppm
Tolerance over Temp.: f (ppm) = TC · (25 °C - T)²
……[TC: -0,030ppm/°C² typ., -0,040ppm/°C² max.]
ESR max.: 70000 Ohm
Operating Temp.: -40°C/+85°C

RoHS : Pb free - 2011/65/EU (RoHS 2) compliant

Package Unit: 3000pcs/reel

Bauform: SMD6035-M4
Frequency: 9,216000 MHz
Mode: fund.
Load Capacitance: 16 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±30 ppm
ESR max.: 80 Ohm
Operating Temp.: -20 / +70 °C

'-
UTECH Technology Co., Ltd.
Case size: HC-49/SMD
Frequency: 12.000000 MHz
Mode: fund. AT
Load Capacitance: 18 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging: ±3 ppm max. 1 year
ESR max.: 40 Ohm
Operating Temp.: -40°C/+85°C
RoHS : Pb free - 2011/65/EU (RoHS 2) compliant
-
Package Unit: 1000pcs/reel

'-
UTECH Electronics Technology Co., Ltd.
-
Case size: HC-49SMD / QRSD
Frequency: 12.800000 MHz
Mode: fund. AT
Load Capacitance: 15 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±20 ppm
Aging: ±6 ppm max. first 5 year
ESR max.: 40 Ohm
Operating Temp.: -40°C/+85°C
-
Package Unit: 1000pcs/reel

SUZHOU UTECH TECHNOLOGY CO.,LTD
QRSD
TR1000

'-

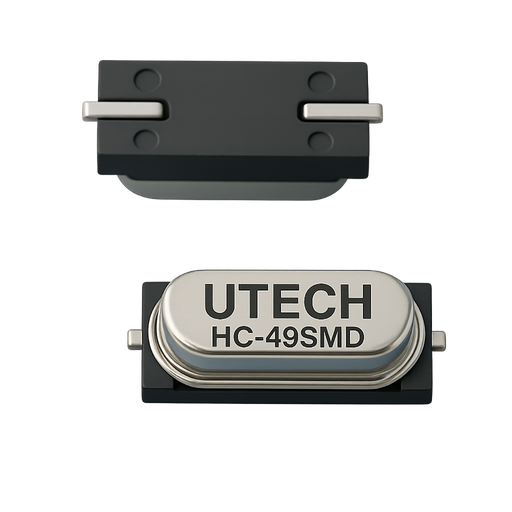

UTECH Electronics Technology Co., Ltd.
-
Case size: HC-49SMD / QRSD
Frequency: 3.686400 MHz
Mode: fund. AT
Load Capacitance: 18 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging: ±3 ppm max. 1 year
ESR max.: 120 Ohm
Operating Temp.: -40°C/+85°C
RoHS : 2011/65/EU (RoHS 2) compliant
-
Package Unit: 1000pcs/reel

Bauform: SMD3225-M4
Frequency: 27,000000 MHz
Mode: fund.
Load Capacitance: 10 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±50 ppm
ESR max.: 60 Ohm
Operating Temp.: -40 / +85 °C

Bauform: SMD3225-M4
Frequency: 27,000000 MHz
Mode: fund.
Load Capacitance: 12 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±20 ppm
ESR max.: 60 Ohm
Operating Temp.: -40 / +85 °C

Bauform: SMD5032-M4
Frequency: 8,000000 MHz
Mode: fund.
Load Capacitance: 16 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±100 ppm
ESR max.: 40 Ohm
Operating Temp.: -40 / +85 °C

SUZHOU UTECH TECHNOLOGY CO.,LTD
QRS5
TR1000

'-
UTECH Electronics Technology Co., Ltd.
Type: THT HC-49/S (QRDS)
Frequency: 5.000000 MHz
Mode: fund. AT
Load Capacitance: 16 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging: ±3ppm max. 1 year
ESR max.: 150 Ohm
Operating Temp.: -20°C/+70°C

UTECH Technology Co., Ltd.

Case size: HC-49SMD
Frequency: 4.000000 MHz
Mode: fund. AT
Load Capacitance: 20.0 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging: ±3 ppm max. 1 year
ESR max.: 80 Ohm
Operating Temp.: -40°C/+85°C

Package Unit: 1000pcs/reel

'-
Manufacturer: UTECH Electronics Tech. Co., Ltd.
-
Series: QRSE
Case size: HC-49SMD3 (11.40 x 4.70 x 3.20 | 3Pin)
Frequency: 10.368000 MHz
Mode: fund. AT
Load Capacitance: 10 pF
Tolerance at +25°C: ±10 ppm
Tolerance over Temp.: ±10 ppm
Aging: ±3 ppm max. first year, ±10 ppm after 8 years
ESR max.: 50 Ohm
-
Condition of unwanted response: RN/Rr < 2.5
Shunt Capacitance: C0 = tbd
Motional Capacitance: C1 = tbd
Pulling Sensitivity: S = 17,0 ppm/pF ±20%
-
Operating Temp.: -10°C/+60°C
-
Package Unit: 1000pcs/reel
