SUZHOU UTECH TECHNOLOGY CO.,LTD
Package Unit: 1000pcs/reel

'-
UTECH Technology Co., Ltd.
Case size: HC-49/SMD
Frequency: 5.000000 MHz
Mode: fund. AT
Load Capacitance: 30 pF
Tolerance at +25 °C: ±50 ppm
Tolerance over Temp.: ±50 ppm
Aging: ±5 ppm max. 1 year
ESR max.: 60 Ohm
Operating Temp.: -40°C/+85°C

'-
Case size: HC-49/SMD
Frequency: 13.500000 MHz
Mode: fund. AT
Load Capacitance: 20 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±50 ppm
Aging: ±3 ppm max. 1 year
ESR max.: 40 Ohm
Operating Temp.: -40°C/+85°C
RoHS : Pb free - 2011/65/EU (RoHS 2) compliant
-
Package Unit: 1000pcs/reel

'-
Manufacturer: UTECH Electronics Technology Co., Ltd.
-
Case size: HC-49SMD / QRSD
Frequency: 13.560000 MHz
Mode: fund. AT
Load Capacitance: 18 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging: ±3 ppm max. 1 year
ESR max.: 40 Ohm
Operating Temp.: -40°C/+85°C
-
Package Unit: 1000pcs/reel

Manufacturer: UTECH Electronics Tech. Co., Ltd.

Series: QRSD
Case size: HC-49SMD3 (11.40 x 4.70 x 4.20)
Frequency: 13.824000 MHz
Mode: fund. AT
Load Capacitance: 10 pF
Tolerance at +25°C: ±10 ppm
Tolerance over Temp.: ±10 ppm
Aging: ±3 ppm max. first year, ±10 ppm after 8 years
ESR max.: 50 Ohm

Condition of unwanted responce: RN/Rr < 2.5
Shunt Capacitance: C0 = tbd
Motional Capacitance: C1 = tbd
Pulling Sensitivity: S = 17,0 ppm/pF ±20%

Operating Temp.: -10°C/+60°C
Operable Temperature range: -40/+85°C

Package Unit: 1000pcs/reel

'-
Manufacturer: UTECH Electronics Tech. Co., Ltd.
-
Series: QRSD
Case size: HC-49SMD3 (11.40 x 4.70 x 4.20)
Frequency: 13.824000 MHz
Mode: fund. AT
Load Capacitance: 10 pF
Tolerance at +25°C: ±10 ppm
Tolerance over Temp.: ±10 ppm
Aging: ±3 ppm max. first year, ±10 ppm after 8 years
ESR max.: 40 Ohm
-
Condition of unwanted responce: RN/Rr < 2.5
Shunt Capacitance: C0 = tbd
Motional Capacitance: C1 = tbd
Pulling Sensitivity: S = 32,0 ppm/pF ±20%
-
Operating Temp.: -10°C/+60°C
Operable Temperature range: -40/+85°C
-
Package Unit: 1000pcs/reel

UTECH Electronics Technology Co., Ltd.
Case size: HC-49SMD / QRSD
Frequency: 14.745600 MHz
Mode: fund. AT
Load Capacitance: 16 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging: ±5 ppm max. 1 year
ESR max.: 40 Ohm
Operating Temp.: -20°C/+70°C

SUZHOU UTECH TECHNOLOGY CO.,LTD
Package Unit: 1000pcs/reel

'-
UTECH Electronics Technology Co., Ltd.
-
Case size: HC-49SMD / QRSD
Frequency: 16.384000 MHz
Mode: fund. AT
Load Capacitance: 13 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±50 ppm
Aging: ±3 ppm max. 1 year
ESR max.: 40 Ohm
Operating Temp.: -20°C/+70C
-
Package Unit: 1000pcs/reel

UTECH Electronics Technology Co., Ltd.

Case size: HC-49SMD / QRSD
Frequency: 16.384000 MHz
Mode: fund. AT
Load Capacitance: 18.0 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging: ±3 ppm max. 1 year
ESR max.: 40 Ohm
Operating Temp.: -40°C/+85C

Package Unit: 1000pcs/reel

SUZHOU UTECH TECHNOLOGY CO.,LTD
Package Unit: 1000pcs/reel

Series: QRSD
Case size: HC-49SMD (11.4 x 4.7 x 4.20 mm)
Frequency: 19.456000 MHz
Mode: fund. AT
Load Capacitance: 18.0 pF
Tolerance at +25°C: ±30 ppm
Tolerance over Temp.: ±50 ppm
Aging: ±3 ppm max. first year
ESR max.: 50 Ohm
Operating Temp.: 0°C/+70°C

Package Unit: 1000pcs/reel

'-
UTECH Electronics Technology Co., Ltd.
-
Case size: HC-49SMD / QRSD
Frequency: 19.660800 MHz
Mode: fund. AT
Load Capacitance: 16 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging: ±3 ppm max. 1 year
ESR max.: 40 Ohm
Operating Temp.: -40°C/+85°C
-
Package Unit: 1000pcs/reel

'-
UTECH Electronics Technology Co., Ltd.
-
Case size: HC-49/SMD
Frequency: 19.850000 MHz
Mode: fund. AT
Load Capacitance: 13 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging: ±3 ppm max. 1 year
ESR max.: 40 Ohm
Operating Temp.: -40°C/+85°C
-
Package Unit: 1000pcs/reel

'-
UTECH Electronics Technology Co., Ltd.
-
Case size: HC-49/SMD
Frequency: 20.020000 MHz
Mode: fund. AT
Load Capacitance: 18 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging: ±5 ppm max. 1 year
ESR max.: 40 Ohm
Operating Temp.: -40°C/+85°C
-
Package Unit: 1000pcs/reel

UTECH Electronics Technology Co., Ltd.

Case size: HC-49/SMD
Frequency: 23.020000 MHz
Mode: fund. AT
Load Capacitance: 15.0 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging: ±5 ppm max. 1 year
ESR max.: 40 Ohm
Operating Temp.: -40°C/+85°C

Package Unit: 1000pcs/reel

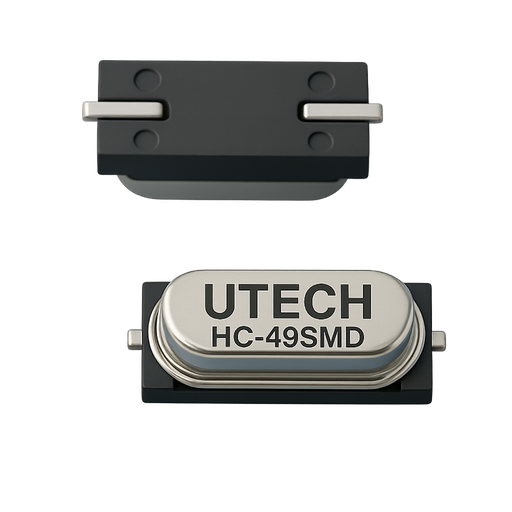

UTECH Technology Co., Ltd.
Case size: HC-49/SMD
Frequency: 12.000000 MHz
Mode: fund. AT
Load Capacitance: 10 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±50 ppm
Aging: ±3 ppm max. 1 year
ESR max.: 40 Ohm
Operating Temp.: -20°C/+70°C
Package Unit: 1000pcs/reel
RoHS : Pb free - 2011/65/EU (RoHS 2) compliant

SUZHOU UTECH TECHNOLOGY CO.,LTD
Package Unit: 1000pcs/reel

SUZHOU UTECH TECHNOLOGY CO.,LTD
Package Unit: 1000pcs/reel

'-
UTECH Electronics Technology Co., Ltd.
-
Case size: HC-49/SMD
Frequency: 25.000000 MHz
Mode: fund. AT
Load Capacitance: 18 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging: ±3 ppm max. 1 year
ESR max.: 30 Ohm
Operating Temp.: -40°C/+85°C
-
Package Unit: 1000pcs/reel
