Bauform: SMD3225-M4
Frequency: 27,120000 MHz
Mode: fund.
Load Capacitance: 16 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±50 ppm
ESR max.: 60 Ohm
Operating Temp.: -40 / +85 °C

'-

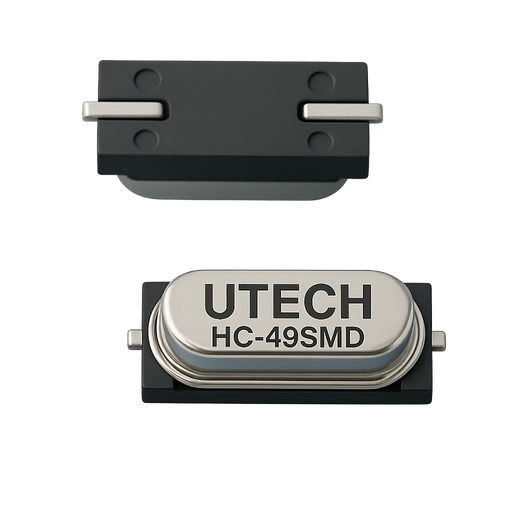

UTECH Technology Co., Ltd.
-
Case size: HC-49/SMD
Frequency: 27.000000 MHz
Mode: fund. AT
Load Capacitance: 20 pF
Tolerance at +25 °C: ±15 ppm
Tolerance over Temp.: ±15 ppm
Aging: ±3 ppm max. 1 year
ESR max.: 40 Ohm
Operating Temp.: -20°C/+70°C
-
Package Unit: 1000pcs/reel

'-
Manufacturer:
-
FREQUENCY: 30000
ACTUAL SIZE(MM): 10.50X5.80X2.70
FREQ. TOLERANCE -: -100
FREQ. TOLERANCE +: 00
-
FREQ.UNIT
VOLTAGE SUPPLY MIN: 2.7V
VOLTAGE SUPPLY MAX: 3.6V
OUTPUT: CMOS
SPEC.EXTENSION: PC
TERMINAL PLATING: SN OR SN-BI
PACKAGE TYPE: TR1000L
PB WEIGHT(ΜG): 2.24
ROHS: 7a
-
REACH SUBSTANCE 1: 7439-92-1
REACH WEIGHT 1 (ΜG): 2.24
-
REACH
FIT: 21.38
GROUP OF LEAD TIMES: SG-8002JC
STABILITY: C

Bauform: SMD3225-M4
Frequency: 14,745600 MHz
Mode: fund.
Load Capacitance: 12 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±15 ppm
ESR max.: 60 Ohm
Operating Temp.: -40 / +85 °C

EPSON,
Q13FC2550004514
FC-255 32.768000KHZ 12.5PF +/- 20PPM
PACKING UNIT 1000

Bauform: SMD5032-M4
Frequency: 13,560000 MHz
Mode: fund.
Load Capacitance: 16 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±10 ppm
ESR max.: 40 Ohm
Operating Temp.: -20 / +70 °C

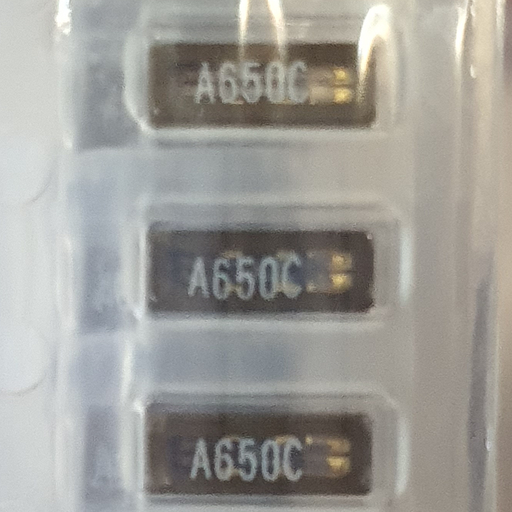

Manufacturer: CITIZEN

Case Size: SMD5019-C2 / CQTS5
Dimension: 4.9 x 1.8 x 1.0mm
Frequency: 32.768 kHz
Mode: XY
Load Capacitance: 12.5 pF
Tolerance at +25 °C: ±20 ppm
Tolerance over Temp.: f (ppm) = TC · (25 °C - T)²
... [TC: -0,0340ppm/°C² typ., -0,0400ppm/°C² max.]
ESR max.: 70000 Ohm
Operating Temp.: -40°C/+85°C

Package Unit: 3000pcs/reel

Bauform: SMD5032-M4
Frequency: 8,000000 MHz
Mode: fund.
Load Capacitance: 16 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±15 ppm
ESR max.: 40 Ohm
Operating Temp.: -40 / +85 °C

SUZHOU UTECH Electronics Technology Co., Ltd.
Package Unit: 1000pcs/reel

Bauform: SMD5032-M4
Frequency: 18,432000 MHz
Mode: fund.
Load Capacitance: 16 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±15 ppm
ESR max.: 40 Ohm
Operating Temp.: -20 / +70 °C

Bauform: SMD5032-M4
Frequency: 13,560000 MHz
Mode: fund.
Load Capacitance: 16 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±50 ppm
ESR max.: 40 Ohm
Operating Temp.: -20 / +70 °C

'-
UTECH Electronics Technology Co., Ltd.
-
Case Size: SMD6035-M4 (4PAD)
Frequency: 13.567500 MHz
Mode: fund. AT
Load Capacitance: 20 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging max.: ±3 ppm / 1 year
ESR max.: 45 Ohm
Operating Temp.: -20°C/+70°C
-
RoHS: Pb free - 2011/65/EU (RoHS 2) compliant
-
Package Unit: 1000pcs/reel

'-
UTECH Electronics Technology Co., Ltd.
-
Case Size: SMD6035-M4 (4PAD)
Frequency: 25.000000 MHz
Mode: fund. AT
Load Capacitance: 18 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging max.: ±3 ppm / 1 year
ESR max.: 50 Ohm
Operating Temp.: -40°C/+85°C
RoHS: Pb free - 2011/65/EU (RoHS 2) compliant
-
Package Unit: 1000pcs/reel

Bauform: SMD5032-M4
Frequency: 8,000000 MHz
Mode: fund.
Load Capacitance: 16 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±100 ppm
ESR max.: 40 Ohm
Operating Temp.: -20 / +70 °C

Manufacturer: Epson Electronics

Epson Part No.: Q3321CE40020914

Typ: SMD-Oscillator SG-8002CE 6.000000MHZ PC C

Case size: SMD 3.20 x 2.50 x 1.05 mm
Frequency: 6.000000 MHz
Power Supply Voltage: 2.7~3.6 Volt
Frequency Stability: ±100 ppm
Operating Temp.: -20°C/+70°C

Packing: 1000pcs/reel

SUZHOU UTECH TECHNOLOGY CO.,LTD
TR3000

Bauform: SMD3225-M4
Frequency: 32,000000 MHz
Mode: fund.
Load Capacitance: 10 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±20 ppm
ESR max.: 60 Ohm
Operating Temp.: -40 / +85 °C

Bauform: SMD3225-M4
Frequency: 20,000000 MHz
Mode: fund.
Load Capacitance: 12 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±50 ppm
ESR max.: 60 Ohm
Operating Temp.: -40 / +85 °C

Bauform: SMD3225-M4
Frequency: 20,000000 MHz
Mode: fund.
Load Capacitance: 12 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±30 ppm
ESR max.: 60 Ohm
Operating Temp.: -40 / +85 °C

Bauform: SMD5032-M4
Frequency: 48,000000 MHz
Mode: fund.
Load Capacitance: 18 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±50 ppm
ESR max.: 40 Ohm
Operating Temp.: -20 / +70 °C
