Bauform: SMD2520-M4
Frequency: 16,000000 MHz
Mode: fund.
Load Capacitance: 16 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±50 ppm
ESR max.: 100 Ohm
Operating Temp.: -20 / +70 °C

UTECH Electronics Technology Co., Ltd.

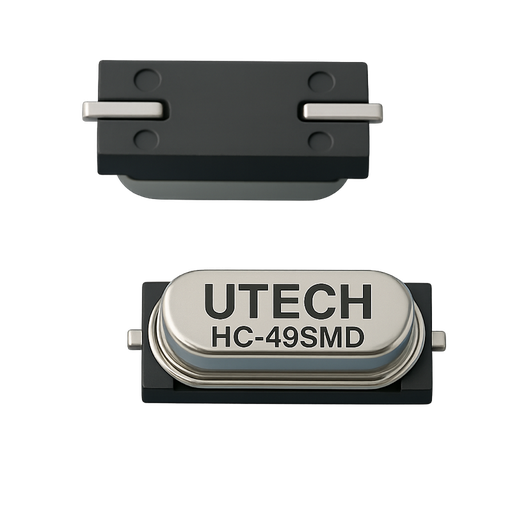

Case size: HC-49SMD / QRSD
Frequency: 8.000000 MHz
Mode: fund. AT
Load Capacitance: 12.0 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±30 ppm
Aging: ±3 ppm max. 1 year
ESR max.: 60 Ohm
Operating Temp.: -40°C/+85°C

Packaging Unit: 1000pcs/reel

SUZHOU UTECH TECHNOLOGY CO.,LTD
Package Unit: 1000pcs/reel

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator QOS2
Case size: SMD2520-M4
Frequency: 1.843200 MHz
Power Supply Voltage: 3.3 Volt
Frequency Stability *: ±50 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3

Package Unit: 3000pcs/reel

* All condition inclusive of calibration tolerance at 25°C, operating temperature range,
input voltage change, output load change, aging, shock and vibration.

'UTECH Electronics Technology Co., Ltd.
Typ: SMD7050-M2 (2PAD)
Frequency: 14.745600 MHz
Mode: fund. AT
Load Capacitance: 12 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±50 ppm
Aging max.: ±3 ppm / 1 year
ESR max.: 80 Ohm
Operating Temp.: -40°C/+85°C

Bauform: SMD3225-M4
Frequency: 14,745600 MHz
Mode: fund.
Load Capacitance: 10 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±50 ppm
ESR max.: 60 Ohm
Operating Temp.: -40 / +85 °C

SUZHOU UTECH TECHNOLOGY CO.,LTD
Package Unit: 3000pcs/reel

Manufacturer: UTECH TECHNOLOGY CO.,LTD

Case Size: Oscillator TCXO SMD2016-M4
Series: ?
Type: TCXO - CSW Output (Clipped Sine Wave)
Frequency: 12.000000 MHz (fundamental)
Supply Voltage (VDD): 3.3 VDC
Input Current: ?

Frequency Tolerance (at +25°C): ±2.0 ppm
Frequency Tolerance over temperature: ±2.5 ppm @ -40/+85°C
Frequency Stability Vs Supply Voltage (±5%): -
Frequency Stability Vs Load (±10%). -
Aging: -

Symmetry: 50%±5%
Output Logic / Output Load: CSW - Clipped Sine Wave (min. 0.8V) / 10 KΩ // 10pF
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
Start-up Time: -

Package: 3000pcs/reel

SUZHOU UTECH TECHNOLOGY CO.,LTD

Case Size: SMD7050-M2 (2PAD)
Frequency: 12.000000 MHz
Mode: fund. AT
Load Capacitance: 12.0 pF
Tolerance at +25 °C: ±30 ppm
Tolerance over Temp.: ±50 ppm
Aging max.: ±3 ppm / 1 year
ESR max.: 40 Ohm
Operating Temp.: -40°C/+85°C

'-

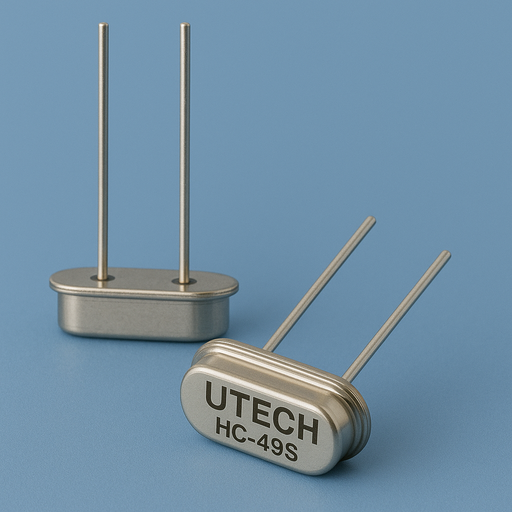

UTECH, HC-49/S, 26,000000 MHz, fund. AT, CL: 16pF,
Tolerance at +25°C: ±10ppm, Tolerance over Temp.: ±15ppm,
Aging: max. 10 ppm aging over 11 years, “over all tolerance” = 35ppm max.,
ESR max.: 15 Ohm, Operating Temp.: -20/+70°C, bulk

SUZHOU UTECH TECHNOLOGY CO.,LTD
TR3000

Bauform: SMD3225-M4
Frequency: 27,120000 MHz
Mode: fund.
Load Capacitance: 12 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±50 ppm
ESR max.: 60 Ohm
Operating Temp.: -20 / +70 °C

'-
Manufacturer: UTECH TECHNOLOGY CO.,LTD
.
Case Size: Oscillator SMD2016-M4
Type: TCXO - CSW Output (Clipped Sine Wave)
Frequency: 20.375000 MHz (fundamental)
Supply Voltage (VDD): +3.3 VDC ±10%
Input Current: 1.5 mA max.
Frequency Tolerance (at +25°C): ±1.5 ppm
Frequency Stability vs Temperature Range: ±2.0 ppm (@CDMA)
Frequency Stability Vs Supply Voltage (±5%): ±0.2 ppm
Frequency Stability Vs Load (±10%): ±0.2 ppm
Aging max.: ±1ppm / year
Symmetry: -
Output Logic / Output Load: CSW (Clipped Sine Wave) / Symmetry: 50%±5%
Operating Temperature: -30°C to +85°C
Storage Temperature: -40°C to +85°C
Start-up Time: ≤ 2 ms
-
Packag Unit: 3000pcs/reel

Manufacturer: UTECH TECHNOLOGY CO.,LTD

Case Size: Oscillator TCXO SMD2016-M4
Series: QPS1
Type: TCXO - CSW Output (Clipped Sine Wave)
Frequency: 26.000000 MHz (fundamental)
Supply Voltage (VDD): 2.5 – 3.6 VDC
Input Current: 1.5 mA max.

Frequency Tolerance (at +25°C): ±2.5 ppm
Frequency Tolerance 1 over temperature: ±2.0 ppm @ -40/+85°C
Frequency Tolerance 2 over temperature: ±0.5 ppm @ -30/+85°C

Frequency Stability Vs Supply Voltage (±5%): ±0.1 ppm
Frequency Stability Vs Load (±10%). ±0.2 ppm
Aging: ±1ppm

Symmetry: 50%±5%
Output Logic / Output Load: CSW - Clipped Sine Wave (min. 0.8V) / 10 KΩ // 10pF
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
Start-up Time: ≤ 2 ms

Phase Noise
@ 1 Hz offset <-57dBC/Hz
@ 10 Hz offset <-88dBC/Hz
@ 100 Hz offset <-112dBC/Hz
@ 1 kHz offset <-130dBC/Hz
@ 10 kHz offset <-140dBC/Hz

Package: 3000pcs/reel

Manufacturer: UTECH TECHNOLOGY CO.,LTD

Case Size: Oscillator TCXO SMD2016-M4
Series: QPS1
Type: TCXO - CSW Output (Clipped Sine Wave)
Frequency: 26.000000 MHz (fundamental)
Supply Voltage (VDD): +2.8 VDC ±5%
Input Current: 2.0 mA max.

Frequency Tolerance (at +25°C): ±2.0 ppm
Frequency Stability Vs Supply Voltage (±5%): ±0.2 ppm
Frequency Stability Vs Load (±10%). ±0.2 ppm
Aging: ±1ppm

Symmetry: 50%±5%
Output Logic / Output Load: CSW - Clipped Sine Wave (min. 0.8V) / 10 KΩ // 10pF
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
Start-up Time: ≤ 2 ms

Phase Noise @19.2 MHz in dBc/Hz: -115 @ 100Hz, -135 @ 1kHz, -149 @ 10kHz

Manufacturer: UTECH TECHNOLOGY CO.,LTD

Case Size: Oscillator TCXO SMD2016-M4
Series: QPS1
Type: TCXO - CSW Output (Clipped Sine Wave)
Frequency: 26.000000 MHz (fundamental)
Supply Voltage (VDD): 3.0 V (1.8 ~3.3) ±5%
Input Current: 2.0 mA max.

Frequency Tolerance (at +25°C): ±1.0 ppm
Frequency Tolerance over Temperature: ±1.0 ppm @ -40/+85°C
Frequency Stability Vs Supply Voltage (±5%): ±0.2 ppm
Frequency Stability Vs Load (±10%). ±0.2 ppm
Aging: ±1.0 ppm/yer max.

Output Logic / Output Load: CSW - Clipped Sine Wave (min. 0.8V) / 10 KΩ // 10pF
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C

Phase Noise
@ 1 kHz offset < -130dBC/Hz
@ 10 kHz offset <-140dBC/Hz
@ 100 kHz offset <-150dBC/Hz

Package: 3000pcs/reel

'-
Utech Electronics Technology Co., Ltd.
-
Case Size: Oscillator SMD2016-M4
Series: QPS1
Type: TCXO - CSW Output (Clipped Sine Wave)
Frequency: 40.000000 MHz (fundamental)
Supply Voltage (VDD): +3.3 VDC ±10%
Input Current: 1.5 mA max.
Frequency Tolerance (at +25°C): ±2.0 ppm
Frequency Stability vs Temperature Range: ±2.0 ppm
Frequency Stability Vs Supply Voltage (±5%): ±0.2 ppm
Frequency Stability Vs Load (±10%). ±0.2 ppm
Symmetry: 50%±5%
Aging: ±1ppm
Output Logic / Output Load: CSW - Clipped Sine Wave
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
Start-up Time: ≤ 2 ms
Package Unit: 3000pcs/reel

'-
Utech Electronics Technology Co., Ltd.
-
Frequency: 19.200000 MHz
Oscillation Mode: Fundamental
Supply Voltage (VCC): 1.8 to 3.3V
Input Current: 1.5 mA max
Output Level Clipped Sine(Vp-p): 0.8V min
Harmonics: -5 dBc max
Frequency Tolerance After Reflow (at +25°C): ±2 ppm max
Frequency Stability Vs Temperature Range: ±2 ppm max
Operating Temperature Range: -40~+85°C
Temperature slope @-20~+70°C: ±0.1 ppm / °C
Temperature slope @-40~+85°C: ±0.3 ppm / °C
Storage Temperature Range: -40~+85°C
Frequency Stability Vs Supply Voltage (±5%): ±0.2 ppm
Frequency Stability Vs Load (±10%): ±0.2 ppm
Output Waveform: Clipped Sine wave
Output Load: 10 KΩ // 10 pF
Start-up Time Vs frequency: ≤ 2.0 ms / within ±1 ppm
Aging : ±1 ppm max first year
-
Package Unit: 3000pcs/reel

'-
Utech Electronics Technology Co., Ltd.
-
Frequency: 12.500000 MHz
Oscillation Mode: Fundamental
Supply Voltage (VCC): 2.8V ±5%
Input Current: 1.5 mA max
Output Level Clipped Sine(Vp-p): 0.8V min
Harmonics: -5 dBc max
Frequency Tolerance After Reflow (at +25°C): ±2 ppm max
Frequency Stability Vs Temperature Range: ±2 ppm max
Operating Temperature Range: -40~+85°C
Temperature slope @-20~+70°C: ±0.1 ppm / °C
Temperature slope @-40~+85°C: ±0.3 ppm / °C
Storage Temperature Range: -40~+85°C
Frequency Stability Vs Supply Voltage (±5%): ±0.2 ppm
Frequency Stability Vs Load (±10%): ±0.2 ppm
Output Waveform: Clipped Sine wave
Output Load: 10 KΩ // 10 pF
Start-up Time Vs frequency: ≤ 2.0 ms / within ±1 ppm
Aging : ±1 ppm max first year
-
Package Unit: 3000pcs/reel

'-
Utech Electronics Technology Co., Ltd.
-
Frequency: 24.000000 MHz
Oscillation Mode: Fundamental
Supply Voltage (VCC): 1.8V to 3.3V
Input Current: 1.5 mA max
Output Level Clipped Sine(Vp-p): 0.8V min
Harmonics: -5 dBc max
Frequency Tolerance After Reflow (at +25°C): ±2 ppm max
Frequency Stability Vs Temperature Range: ±2 ppm max
Operating Temperature Range: -40~+85°C
Temperature slope @-20~+70°C: ±0.1 ppm / °C
Temperature slope @-40~+85°C: ±0.3 ppm / °C
Storage Temperature Range: -40~+85°C
Frequency Stability Vs Supply Voltage (±5%): ±0.2 ppm
Frequency Stability Vs Load (±10%): ±0.2 ppm
Output Waveform: Clipped Sine wave
Output Load: 10 KΩ // 10 pF
Start-up Time Vs frequency: ≤ 2.0 ms / within ±1 ppm
Aging : ±1 ppm max first year
-
Package Unit: 3000pcs/reel

Manufacturer: UTECH TECHNOLOGY CO.,LTD

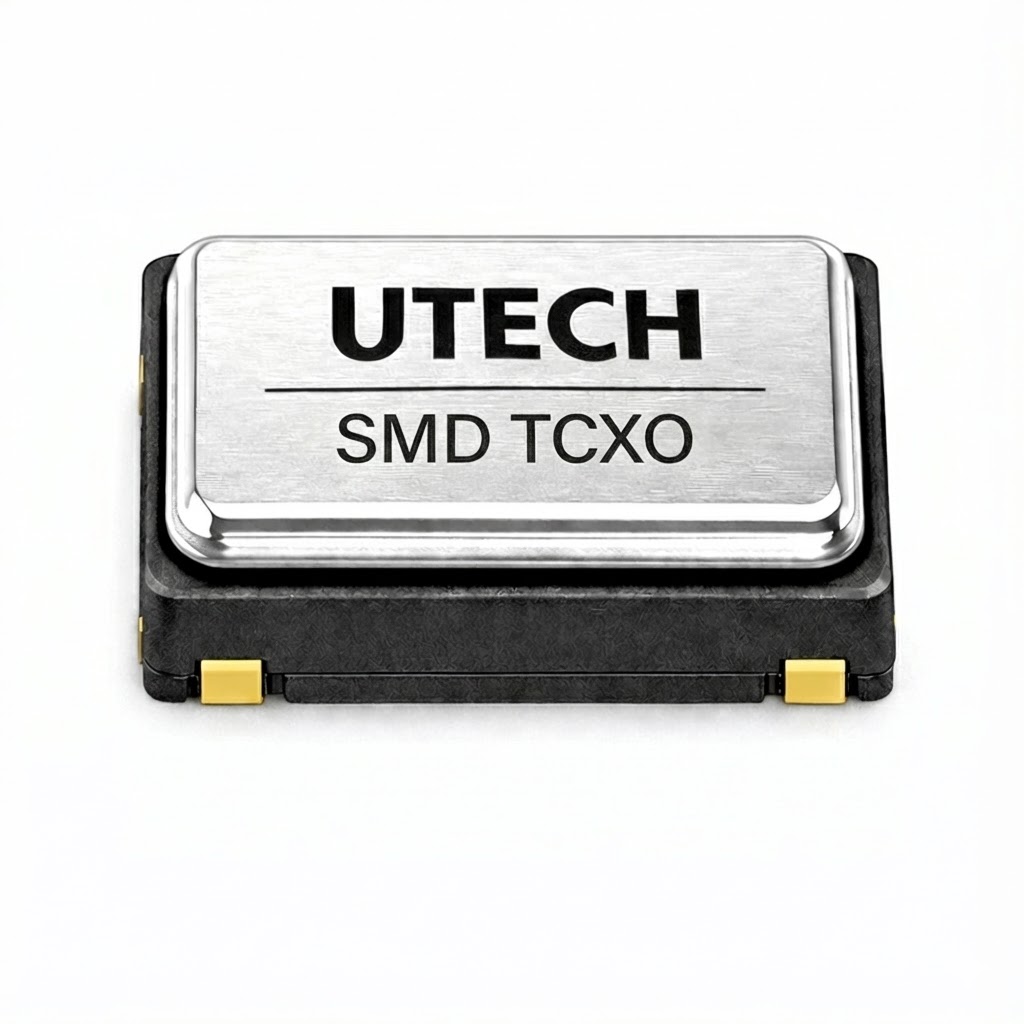

Type: TCXO-SMD2520-M4 - CSW Output (Clipped Sine Wave)

Frequency: 26.000000 MHz
Supply Voltage (VDD): 2.8 (1.8~3.3)V ±5%.

Input Current: 12.0 mA max.

Output Level Clipped Sine(Vp-p): 0.8 Vp-p min
Harmonics: -5 dBc max
Frequency Tolerance After Reflow (at +25℃): ±1.0 ppm max
Frequency Stability Vs Temperature Range: ±1.0 ppm max
Frequency Stability Vs Supply Voltage (±5%): ±0.2 ppm max
Frequency Stability Vs Load (±10%): ±0.2 ppm max

Operating Temperature Range: -40～+85℃
Storage Temperature Range: -55～+125°C

Output Waveform: Clipped Sine wave
Output Load: 10 KΩ // 10 pF
Start-up Time Vs frequency: 2.0 ms max within ±1.0 ppm
Aging: ±1.0 ppm/year max

Phase Noise:
1KHz Offset: -130 dBc/Hz
10KHz Offset: -140 dBc/Hz
100KHz Offset: -150 dBc/Hz

RoHS: Pb free - 2011/65/EU (RoHS 2) compliant

Package Unit: 3000pcs/reel

'-
Utech Electronics Technology Co., Ltd.
-
Frequency: 36.000000 MHz
Oscillation Mode: Fundamental
Supply Voltage (VCC): 3.3V
Frequency Stability Vs Temperature Range: ±1.0 ppm max
Operating Temperature Range: -40~+85°C
Storage Temperature Range: -40~+85°C
Output Waveform: Clipped Sine wave
Aging : ±1 ppm max first year, ±5ppm max after 15 years
Phase Noise typ.:
... -130 dBc / Hz at +- ≥1 kHz
... -140 dBc / Hz at +- ≥10 kHz
... -150 dBc / Hz at +- ≥50 kHz
... -150 dBc / Hz at +- ≥100 kHz
-
Package Unit: 3000pcs/reel

SUZHOU UTECH TECHNOLOGY CO.,LTD
QPS2
TR3000

'-
Series: Oscillator SMD2520-M4
Type: TCXO - CMOS Output
Frequency: 40.000000 MHz
Supply Voltage (VDD): +2.8 VDC ±10%
Input Current: 5.2 mA max.
Frequency Tolerance: ±2.0 ppm
Output Logic / Output Load: CMOS / 15 pF
Operating Temperature: -30°C to +85°C
Storage Temperature: -55°C to +125°C
Phase Noise at:-145dBc/Hz at 10 kHz
Start-up Time: ≤ 10 ms
Package Unit: 3000pcs/reel

'-
Series: Oscillator SMD2520-M4
Type: TCXO - CMOS Output
Frequency: 40.000000 MHz
Supply Voltage (VDD): +2.8 VDC ±10%
Input Current: 5.2 mA max.
Frequency Tolerance: ±2.0 ppm
Output Logic / Output Load: CMOS / 15 pF
Operating Temperature: -30°C to +85°C
Storage Temperature: -55°C to +125°C
Phase Noise at:-145dBc/Hz at 10 kHz
Start-up Time: ≤ 10 ms
Package Unit: 3000pcs/reel

Utech Electronics Technology Co., Ltd.

Frequency: 50.000000 MHz
Oscillation Mode: Fundamental
Supply Voltage (VCC): 1.8V ~ 3.3V
Input Current: 2.0 mA max
Output Level Clipped Sine(Vp-p): 0.8 Vp-p min
Harmonics: -5 dBc max

Frequency Tolerance After Reflow (at +25℃): ±2.0 ppm max
Frequency Stability Vs Temperature Range: ±2.0 ppm max

Operating Temperature Range: -40°C ~ +85°C
Storage Temperature Range: -55°C ~ +125°C

Frequency Stability Vs Supply Voltage (±5%): ±0.2 ppm max
Frequency Stability Vs Load (±10%): ±0.2 ppm max
Output Waveform: Clipped Sine wave
Output Load: 10 KΩ // 10 pF
Start-up Time Vs frequency: 2.0 ms max within ±1.0 ppm
Aging: ±1.0 ppm/year max

Phase Noise typ.:
10Hz Offset -70 dBc/Hz
100Hz Offset -105 dBc/Hz
1KHz Offset -125 dBc/Hz
10KHz Offset -145 dBc/Hz

Package Unit: 3000pcs/reel

'-
Manufacturer: Utech Electronics Technology Co., Ltd.
-
Series: Oscillator SMD5032-M4 / QPS5
Type: TCXO-SMD5032-M4
Frequency: 16.000000 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Input Current: 6 mA max.
Frequency Tolerance: ±2.5 ppm
Output Logic / Output Load: Clipped Sine Wave / 10kΩ// 10pF
Operating Temperature: -20°C to +70°C
Storage Temperature: -55°C to +125°C
Phase Noise at 12,80 MHz: -125dBc/Hz at 100 Hz, -145dBc/Hz at 1 kHz, -150dBc/Hz at 10 kHz
Start-up Time: ≤ 2 ms
-
Package Unit: 1000pcs/reel

'-
UTECH, TCXO, SMD5032-M4, 22.000000 MHz, 3.3V, 2.5ppm, -30°C/+85°C

'-
UTECH, TCXO, SMD5032-M4, 22.000000 MHz, 3.3V, 2.5ppm, -30°C/+85°C

Bauform: SMD3225-M4
Frequency: 18,432000 MHz
Mode: fund.
Load Capacitance: 12 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±15 ppm
ESR max.: 60 Ohm
Operating Temp.: -40 / +85 °C
