[40-0030] O-TCXO-SMD3225-M4-14.745600 MHz-3.3-2.5-3085-CSW '- Manufacturer: Utech Electronics Technology Co., Ltd. - Type: TCXO-SMD3225-M4 - CSW Output (Clipped Sine Wave) - Frequency: 14.745600 MHz Supply Voltage (VDD): +3.3 VDC ±5% Input Current: 1.5 mA max. - Frequency Stability vs Temperature Range: ±2.5 ppm max. over -30°C ~+85°C Frequency Stability Vs Supply Voltage (±5%): ±0.2 ppm max, Frequency Stability Vs Load (±10%). ±0.2 ppm max. Aging: ±1.0ppm max./year - phase noise max.: -80 dBc/Hz at 10 Hz -110 dBc/Hz at 100 Hz -130 dBc/Hz at 1 kHz -145 dBc/Hz at 10 kHz -150 dBc/Hz at 100 kHz -150 dBc/Hz at 1 MHz - Output Logic / Output Load: Clipped Sine Wave / 10 kOhm, 10 pF Operating Temperature: -30°C to +85°C Storage Temperature: -40°C to +85°C Start-up Time: ≤ 2 ms - Package Unit: 1000pcs/reel ab 0.2800 EUR (ab 3000 Stück) Größere Mengen bitte anfragen	[10-0256] Q-SMD5032-M4-8.000000 MHz-FU-16-30/100-4085 Bauform: SMD5032-M4 Frequency: 8,000000 MHz Mode: fund. Load Capacitance: 16 pF Tolerance at +25 °C: ±10 ppm Tolerance over Temp.: ±100 ppm ESR max.: 40 Ohm Operating Temp.: -40 / +85 °C ab 0.2900 EUR (ab 3000 Stück) Größere Mengen bitte anfragen	[10-0311] Q-SMD5032-M4-9.216000 MHz-FU-16-30/30-2070 Bauform: SMD5032-M4 Frequency: 9,216000 MHz Mode: fund. Load Capacitance: 16 pF Tolerance at +25 °C: ±10 ppm Tolerance over Temp.: ±30 ppm ESR max.: 80 Ohm Operating Temp.: -20 / +70 °C ab 0.2900 EUR (ab 3000 Stück) Größere Mengen bitte anfragen	[40-0003] O-TCXO-SMD5032-M4-20.000000 MHz-3.3-2.5-3085-CMOS '- Manufacturer: Utech Electronics Technology Co., Ltd. Series: Oscillator SMD5032-M4 Type: TCXO-SMD5032-M4 Frequency: 20.000000 MHz Supply Voltage (VDD): +3.3 VDC ±10% Input Current: 6 mA max. Frequency Tolerance: ±2.5 ppm Output Logic / Output Load: CMOS / 15 pF Operating Temperature: -30°C to +85°C Storage Temperature: -55°C to +125°C Phase Noise at 12,80 MHz: -125dBc/Hz at 100 Hz, -145dBc/Hz at 1 kHz, -150dBc/Hz at 10 kHz Start-up Time: ≤ 2 ms Package Unit: 1000pcs/reel Preise bitte anfragen
[40-0037] O-TCXO-SMD2016-M4-26.000000 MHz-1.8-2.0-4085-CSW (AKM chip) Manufacturer: UTECH TECHNOLOGY CO.,LTD Case Size: Oscillator TCXO SMD2016-M4 Series: QPS1 Type: TCXO - CSW Output (Clipped Sine Wave) Frequency: 26.000000 MHz (fundamental) Supply Voltage (VDD): 1.8 V ±5% Input Current: 2.0 mA max. Frequency Tolerance (at +25°C): ±1.0 ppm Frequency Tolerance over Temperature: ±1.0 ppm @ -40/+85°C Frequency Stability Vs Supply Voltage (±5%): ±0.2 ppm Frequency Stability Vs Load (±10%). ±0.2 ppm Aging: ±1.0 ppm/yer max. Output Logic / Output Load: CSW - Clipped Sine Wave (min. 0.8V) / 10 KΩ // 10pF Operating Temperature: -40°C to +85°C Storage Temperature: -55°C to +125°C Phase Noise @ 1 kHz offset < -130dBC/Hz @ 10 kHz offset <-140dBC/Hz @ 100 kHz offset <-150dBC/Hz Package: 3000pcs/reel ab 0.2800 EUR (ab 3000 Stück) Größere Mengen bitte anfragen	[10-0286] Q-SMD5032-M4-8.000000 MHz-FU-18-10/10-2070 SUZHOU UTECH TECHNOLOGY CO.,LTD QRS5 TR1000 ab 0.2900 EUR (ab 3000 Stück) Größere Mengen bitte anfragen	[10-0325] Q-SMD5032-M4-8.000000 MHz-FU-20-20/30-2070 '- UTECH, SMD5032-M4, 8.000000 MHz, fund., 20pF, ±20ppm@+25°C, ±30ppm over Temp., ESR max.: 80 Ohm, -20/+70°C ab 0.2900 EUR (ab 3000 Stück) Größere Mengen bitte anfragen	[10-0425] Q-HC-49S-4.000000 MHz-FU-30-50/50-2070-bulk '- UTECH Electronics Technology Co., Ltd. Type: THT HC-49/S (QRDS) Frequency: 5.000000 MHz Mode: fund. AT Load Capacitance: 16 pF Tolerance at +25 °C: ±30 ppm Tolerance over Temp.: ±30 ppm Aging: ±3ppm max. 1 year ESR max.: 150 Ohm Operating Temp.: -20°C/+70°C Preise bitte anfragen
[10-0072] Q-SMD3225-M4-40.000000 MHz-FU-20-9/9-2070 UTECH Electronics Technology Co., Ltd. Case Size: SMD3225-M4 Frequency: 40.000000 MHz Mode: fund. AT-Cut Load Capacitance: 20.0 pF Tolerance at +25 °C: ±9 ppm Tolerance over Temp.: ±9 ppm ESR max.: 20 Ohm Operating Temp.: -20°C / +70°C Package Unit: 3000pcs/reel ab 0.0900 EUR (ab 3000 Stück) Größere Mengen bitte anfragen	[10-0101] Q-SMD3225-M4-48.000000 MHz-FU-16-30/50-2070 Bauform: SMD3225-M4 Frequency: 48,000000 MHz Mode: fund. Load Capacitance: 16 pF Tolerance at +25 °C: ±10 ppm Tolerance over Temp.: ±50 ppm ESR max.: 60 Ohm Operating Temp.: -20 / +70 °C ab 0.0900 EUR (ab 3000 Stück) Größere Mengen bitte anfragen	[10-0623] Q-SMD3225-M4-16.000000 MHz-FU-7-50/50-55125 '- UTECH Electronics Technology Co., Ltd. - Case Size: SMD3225-M4 Frequency: 16.000000 MHz Mode: fund. AT Load Capacitance: 7 pF Tolerance at +25 °C: ±50 ppm Tolerance over Temp.: ±50 ppm Aging: ±3ppm max 1 year ESR max.: 60 Ohm Shunt Capacitance: 5pF max. Operating Temp.: -55°C/+125°C - Package Unit: 3000pcs/reel ab 0.0900 EUR (ab 3000 Stück) Größere Mengen bitte anfragen	[10-0868] Q-HC-49SMD-4.000000 MHz-FU-20-30/30-4085 UTECH Technology Co., Ltd. Case size: HC-49SMD Frequency: 4.000000 MHz Mode: fund. AT Load Capacitance: 20.0 pF Tolerance at +25 °C: ±30 ppm Tolerance over Temp.: ±30 ppm Aging: ±3 ppm max. 1 year ESR max.: 80 Ohm Operating Temp.: -40°C/+85°C Package Unit: 1000pcs/reel Preise bitte anfragen

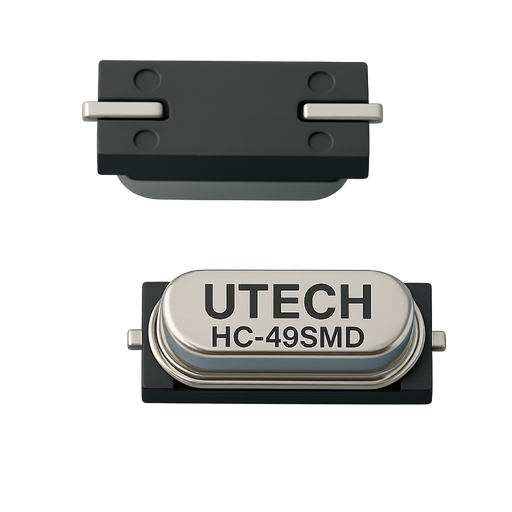

[10-0648] Q-HC-49SMD3-10.368000 MHz-FU-10-10/10-1060 '- Manufacturer: UTECH Electronics Tech. Co., Ltd. - Series: QRSE Case size: HC-49SMD3 (11.40 x 4.70 x 3.20 \| 3Pin) Frequency: 10.368000 MHz Mode: fund. AT Load Capacitance: 10 pF Tolerance at +25°C: ±10 ppm Tolerance over Temp.: ±10 ppm Aging: ±3 ppm max. first year, ±10 ppm after 8 years ESR max.: 50 Ohm - Condition of unwanted response: RN/Rr < 2.5 Shunt Capacitance: C0 = tbd Motional Capacitance: C1 = tbd Pulling Sensitivity: S = 17,0 ppm/pF ±20% - Operating Temp.: -10°C/+60°C - Package Unit: 1000pcs/reel Preise bitte anfragen	[10-0696] Q-SMD3225-M4-50.000000 MHz-FU-19-10/14-40105 SUZHOU UTECH TECHNOLOGY CO.,LTD TR3000 ab 0.0900 EUR (ab 3000 Stück) Größere Mengen bitte anfragen	[10-0700] Q-SMD1210-M4-38.400000 MHz-FU-8.5-10/10-2075 '- UTECH Electronics Technology Co., Ltd. - Case Size: SMD1210-M4 (1.2 x 1.0 mm)) Frequency: 38.400000 MHz Mode: fund. AT Load Capacitance: 8.5 pF Tolerance at +25°C: ±10 ppm Tolerance over Temp. -20/+75°C: ±10 ppm Aging: ±3ppm max 1 year ESR max.: 60 Ohm Operating Temp.: -40°C/+85°C - Package Unit: 3000pcs/reel Preise bitte anfragen	[10-0410] Q-SMD1350-4.000000 MHz-FU-30-30/100-4085 SUZHOU UTECH TECHNOLOGY CO.,LTD TR1000 Preise bitte anfragen
[10-0327] Q-SMD2520-M4-40.000000 MHz-FU-20-9/9-2070 Bauform: SMD3225-M4 Frequency: 40,000000 MHz Mode: fund. Load Capacitance: 20 pF Tolerance at +25 °C: ±10 ppm Tolerance over Temp.: ±9 ppm ESR max.: 40 Ohm Operating Temp.: -20 / +70 °C ab 0.1200 EUR (ab 3000 Stück) Größere Mengen bitte anfragen	[10-0688] Q-SMD1350-8.000000 MHz-FU-16-30/30-4085 UTECH Electronics Technology Co., Ltd. Case Size: SMD1350 / QRSZ Frequency: 8.000000 MHz Mode: fund. AT Load Capacitance: 16.0 pF Tolerance at +25 °C: ±30 ppm Tolerance over Temp.: ±30 ppm Aging: ±5 ppm max. 1 year ESR max.: 80 Ohm Operating Temp.: -40°C/+85°C Package Unite: 1000pcs/reel Preise bitte anfragen	[10-0682] Q-SMD1612-M4-24.000000 MHz-FU-10-10/30-4085 \| QRSA Manufacturer: UTECH TECHNOLOGY CO.,LTD Ordering No.: QRSA024000C10N Case Size: SMD1612-M4 / QRSA Frequency: 24.000000 MHz Mode: fund. AT Load Capacitance: 10.0 pF Tolerance at +25 °C: ±10 ppm Tolerance over Temp.: ±30 ppm ESR max.: 100 Ohm Operating Temp.: -40°C/+85°C Package Unit: 3000pcs/reel ab 0.2600 EUR (ab 3000 Stück) Größere Mengen bitte anfragen	[10-0872] Q-SMD2016-M4-20.000000 MHz-FU-12-30/30-40125 UTECH Electronics Technology Co., Ltd. Case size: SMD2016-M4 Frequency: 20.000000 MHz Mode: fund. AT Load Capacitance: 12.0 pF Tolerance at +25 °C: ±30 ppm Tolerance over Temp.: ±30 ppm Aging: ±3 ppm max. 1 year ESR max.: 50 Ohm Operating Temp.: -40°C/+125°C Package Unit: 3000 pcs/reel ab 0.1000 EUR (ab 3000 Stück) Größere Mengen bitte anfragen
[10-0546] Q-SMD5032-M2-36.000000 MHz-FU-18-30/30-2070 '- UTECH Electronics Technology Co., Ltd. - Case Size: SMD5032-M2 (2Pad) Frequency: 36.000000 MHz Mode: fund. AT Load Capacitance: 18 pF Tolerance at +25 °C: ±30 ppm Tolerance over Temp.: ±30 ppm Aging: ±3ppm max. 1 year ESR max.: 50 Ohm Operating Temp.: -20°C/+70°C - Package Unit: 1000pcs/reel ab 0.2900 EUR (ab 3000 Stück) Größere Mengen bitte anfragen	[10-0489] Q-SMD7050-M4-8.000000 MHz-FU-16-30/50-4085 SUZHOU UTECH Electronics Technology Co., Ltd. TR1000 ab 0.8000 EUR (ab 3000 Stück) Größere Mengen bitte anfragen	[10-0630] Q-SMD5032-M4-12.000000 MHz-FU-20-30/30-4085 '- UTECH Electronics Technology Co., Ltd. - Case Size: SMD5032-M4 Frequency: 12.000000 MHz Mode: fund. AT Load Capacitance: 20 pF Tolerance at +25 °C: ±20 ppm Tolerance over Temp.: ±30 ppm Aging: ±3ppm max. 1 year ESR max.: 60 Ohm Operating Temp.: -40°C/+85°C - Package Unit: 1000pcs/reel ab 0.2900 EUR (ab 3000 Stück) Größere Mengen bitte anfragen	[10-0559] Q-SMD5032-M4-27.000000 MHz-FU-12-10/20-2070 SUZHOU UTECH TECHNOLOGY CO.,LTD TR1000 ab 0.2900 EUR (ab 3000 Stück) Größere Mengen bitte anfragen
[10-0297] Q-SMD5032-M4-10.000000 MHz-FU-16-30/50-4085 Bauform: SMD5032-M4 Frequency: 10,000000 MHz Mode: fund. Load Capacitance: 16 pF Tolerance at +25 °C: ±10 ppm Tolerance over Temp.: ±50 ppm ESR max.: 40 Ohm Operating Temp.: -40 / +85 °C ab 0.2900 EUR (ab 3000 Stück) Größere Mengen bitte anfragen	[10-0614] Q-SMD2016-M4-38.400000 MHz-FU-7-10/12-3085 SUZHOU UTECH TECHNOLOGY CO.,LTD TR3000 ab 0.1000 EUR (ab 3000 Stück) Größere Mengen bitte anfragen	[10-0846] Q-SMD2016-M4-39.000000 MHz-FU-12-10/15-4085 SUZHOU UTECH TECHNOLOGY CO.,LTD QRS1 TR3000 ab 0.1000 EUR (ab 3000 Stück) Größere Mengen bitte anfragen	[10-0691] Q-SMD2520-M4-12.000000 MHz-FU-12-15/15-3070 '- UTECH TECHNOLOGY CO.,LTD - Case Size: SMD2520-M4 Frequency: 12.000000 MHz Mode: fund. AT Load Capacitance: 12 pF Tolerance at +25°C: ±15 ppm Tolerance over Temp.: ±15 ppm Aging: ±3ppm max 1 year ESR max.: 150 Ohm Operating Temp.: -30°C/+70°C - Package Unit: 3000pcs/reel ab 0.1200 EUR (ab 3000 Stück) Größere Mengen bitte anfragen
[10-0435] Q-SMD7050-M2-6.000000 MHz-FU-12-50/50-2070 '- UTECH Electronics Technology Co., Ltd. Bauform: SMD7050-M2 (2PAD) Frequency: 10.000000 MHz Mode: fund. AT Load Capacitance: 12 pF Tolerance at +25 °C: ±30 ppm Tolerance over Temp.: ±30 ppm Aging max.: ±3 ppm / 1 year ESR max.: 80 Ohm Operating Temp.: -20°C/+70°C ab 0.8000 EUR (ab 3000 Stück) Größere Mengen bitte anfragen	[10-0329] Q-SMD7050-M4-16.000000 MHz-FU-15-30/30-4085 Bauform: SMD3225-M4 Frequency: 12,000000 MHz Mode: fund. Load Capacitance: 10 pF Tolerance at +25 °C: ±10 ppm Tolerance over Temp.: ±10 ppm ESR max.: 60 Ohm Operating Temp.: -20 / +70 °C ab 0.8000 EUR (ab 3000 Stück) Größere Mengen bitte anfragen
