SUZHOU UTECH TECHNOLOGY CO.,LTD

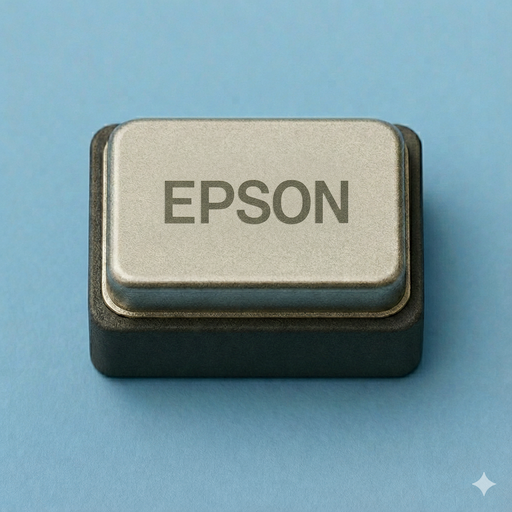

Type: Oscillator VCTCXO-SMD2520-M4
Frequency: 64.000000 MHz
Supply Voltage (VDD): +3.3 VDC ±5%
Input Current: 2.0 mA max.

Frequency Tolerance: ±1.0 ppm
... Frequency tolerance: ±1.0 ppm max. @+25°C
... Frequency Stability Vs Temperature Range: ±0.5 ppm max
... Frequency Stability Vs Supply Voltage (±5%): ±0.2 ppm max
... Frequency Stability Vs Load (±10%): ±0.2 ppm max
... Frequency aging: ±1.0 ppm/year max

Absolute Pulling Range (APR): ±20 ppm min
Control Voltage Range: 1.65V±1.0V
Output Waveform: Clipped Sine wave
Output Load: 10 KΩ // 10 pF
Start-up Time Vs frequency 2.0 ms max within ±1.0 ppm

Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C

Phase Noise
... 10Hz Offset: -70 dBc/Hz
... 100Hz Offset: -105 dBc/Hz
... 1KHz Offset: -125 dBc/Hz
... 10KHz Offset: -145 dBc/Hz
... 100KHz Offset: -155 dBc/Hz

Package Unit: 1000pcs/reel

'-
Manufacturer: Utech Electronics Technology Co., Ltd.
Series: Oscillator SMD5032-M4 / QPS5
Type: VCTCXO-SMD5032-M4
Frequency: 25.000000 MHz
Supply Voltage (VDD): +2.4 ~ 5.5 VDC
Input Current: 1.5 mA max.
Frequency Tolerance: ±1.5 ppm
Supply voltage stability: ±0.2ppm, VDD ±5%
Load stability: ±0.2ppm, ZL ±10%
Ageing: ±1.0ppm max first year
Output Logic / Output Load: Clipped Sine Wave / 10kΩ// 10pF
Operating Temperature: -30°C to +75°C
Storage Temperature: -45°C to +85°C
Phase noise (typ @ 20.0MHz): -54dBc/Hz @ 1Hz -86dBc/Hz @ 10Hz -135dBc/Hz @ 1kHz -151dBc/Hz @ 100kHzStart-up Time: ≤ 2 ms
Package Unit: 1000pcs/reel

Manufacturer: Utech Electronics Technology Co., Ltd.

Series: Oscillator SMD3225-M4 / QZS3
Type: VCTCXO-SMD3225-M4
Frequency: 19.200000 MHz
Supply Voltage (VDD): +3.3 VDC ±5%
Input Current: 2.0 mA max.
Frequency Tolerance: ±1.5 ppm

Output Logic | Output Load: Clipped Sine Wave | 10kΩ / 10pF
Operating Temperature: -30°C to +85°C
Storage Temperature: -40°C to +85°C

Absolute Pulling Range (APR): ±20 ppm min., ±30ppm max.
Control Voltage Range: 1.65V ±1.0V

Phase Noise at 12,80 MHz:
-90dBc/Hz at 10 Hz
-115dBc/Hz at 100 Hz
-128dBc/Hz at 1 kHz
-145dBc/Hz at 10 kHz
-149dBc/Hz at 100 kHz
-150dBc/Hz at 1 MHz

Start-up Time: ≤ 2 ms

Package Unit: 1000pcs/reel

'-
Manufacturer: Utech Electronics Technology Co., Ltd.
Series: Oscillator SMD5032-M4 / QPS5
Type: VCTCXO-SMD5032-M4
Frequency: 25.000000 MHz
Supply Voltage (VDD): +2.4 ~ 5.5 VDC
Input Current: 1.5 mA max.
Frequency Tolerance: ±1.5 ppm
Supply voltage stability: ±0.2ppm, VDD ±5%
Load stability: ±0.2ppm, ZL ±10%
Ageing: ±1.0ppm max first year
Output Logic / Output Load: Clipped Sine Wave / 10kΩ// 10pF
Operating Temperature: -30°C to +75°C
Storage Temperature: -45°C to +85°C
Phase noise (typ @ 20.0MHz): -54dBc/Hz @ 1Hz -86dBc/Hz @ 10Hz -135dBc/Hz @ 1kHz -151dBc/Hz @ 100kHzStart-up Time: ≤ 2 ms
Package Unit: 1000pcs/reel

EPSON
X1G005441031612
TG2016SMN 48.000000MHZ MCGNNM

Case Size: Oscillator SMD2016-M4 (2.0 × 1.6 × 0.73 mm)
Series: TG2016SMN
Type: VCTCXO - CSW Output (Clipped Sine Wave)
Frequency: 48.000000 MHz
Supply Voltage (VDD): +2.8 ~ +3.3 VDC
Input Current: 2.0 mA max.
Frequency Tolerance (at +25°C): ±1.5 ppm
Frequency Stability vs Temperature Range: ±0.5 ppm
Frequency Stability Vs Supply Voltage (±5%): ±0.1 ppm
Frequency Stability Vs Load (±10%). ±0.1 ppm
Frequency control range: ±8.0 ppm to ±12.0 ppm
Symmetry: 50%±5%
Aging max.: ±1.5ppm
Output Logic / Output Load: CSW - Clipped Sine Wave
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
Start-up Time: ≤ 2 ms

Package Unit: 250 pcs/reel

Manufacturer: Utech Electronics Technology Co., Ltd.

Type: Oscillator VCTCXO-SMD2016-M4
Frequency: 39.000000 MHz
Supply Voltage (VDD): +2.8 VDC ±5%
Input Current: 1.8 mA max.

Frequency Tolerance: ±2.7 ppm
... Frequency tolerance: ±1.5 ppm @+25°C
... Frequency/temperature characteristics: ±1.0 ppm
... Frequency/load coefficient: ±0.1 ppm
... Frequency/voltage coefficient: ±0.1 ppm
... Frequency aging: ±1.0 ppm

Frequency control range: ±8.0 ppm to ± 12.0 ppm at VC =1.4V±1.0V (VCC =2.8V)

Output Logic | Output Load: Clipped Sine Wave | 10kΩ / 10pF ±10%
Operating Temperature: -40°C to +85°C
Storage Temperature: -40°C to +90°C

Start-up Time: ≤ 1 ms

Package Unit: 1000pcs/reel

'-
Manufacturer: Utech Electronics Technology Co., Ltd.
-
Series: Oscillator SMD5032-M4 / QPS5
Type: VCTCXO-SMD5032-M4
Frequency: 25.000000 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Input Current: 3.5 mA max.
Frequency Tolerance: ±2.5 ppm
Output Logic | Output Load: Clipped Sine Wave | 10kΩ / 10pF
Operating Temperature: -20°C to +70°C
Storage Temperature: -55°C to +125°C
Phase Noise at 12,80 MHz: -125dBc/Hz at 100 Hz, -145dBc/Hz at 1 kHz, -150dBc/Hz at 10 kHz
Start-up Time: ≤ 2 ms
-
Package Unit: 1000pcs/reel
