SUZHOU UTECH TECHNOLOGY CO.,LTD
TR3000

SUZHOU UTECH TECHNOLOGY CO.,LTD
TR3000

UTECH Electronics Technology Co., Ltd.

Typ: SMD-Oscillator QOS3
Case size: SMD3225-M4
Frequency: 98.304000 MHz
Power Supply Voltage: 1.8 Volt
Frequency Stability *: ±50 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max., 15pF typ.
Pin 1, Tri-state function: Pin 1=H or open ... Output active at Pin3 / Pin1=L ... high impedance at Pin3

Package Unit: 3000 pcs/reel

* All condition inclusive of calibration tolerance at 25°C, operating temperature range, input voltage change, output load change, aging, shock and vibration.

SUZHOU UTECH TECHNOLOGY CO.,LTD
TR3000

Part No.:
Q22FA12800021xx
Q22FA1280002112 (250pcs/reel)

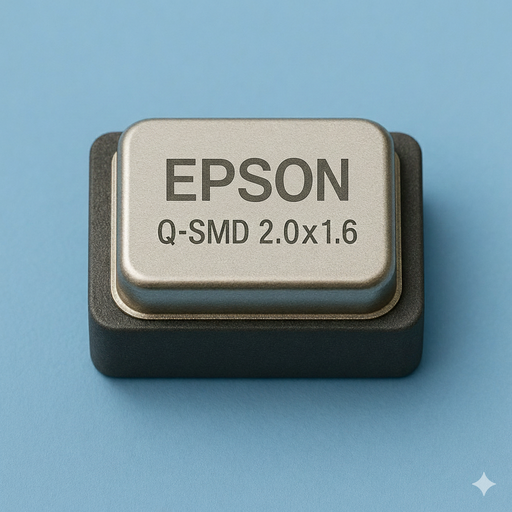

Manufacturer: Seiko Epson Corporation

Case Size: FA-128 / SMD2016-M4
Frequency: 27.120000 MHz
Mode: fund. AT
Load Capacitance: 10.0 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±20 ppm
Aging: ±1ppm max. 1 year
ESR max.: 60 Ohm
Operating Temp.: -40°C/+85°C

RoHS: Pb free - 2011/65/EU (RoHS 2) compliant

Manufacturer: SUZHOU UTECH TECHNOLOGY CO.,LTD

Case Size: SMD1612-M4 (1.6 x 1.2 x 0.35 mm))
Frequency: 52.000000 MHz
Mode: fund. AT
Load Capacitance: 8.0 pF
Tolerance at +25°C: ±10 ppm
Tolerance over Temp.: ±10 ppm @ -20°C/+70°C
Aging: ±1ppm max 1 year
ESR max.: 80 Ohm
Operating Temp.: -20°C/+70°C

Package Unit: 3000 pcs/reel

UTECH Electronics Technology Co., Ltd.

Case Size: SMD2520-M4
Frequency: 24.000000 MHz
Mode: fund. AT
Load Capacitance: 12.0 pF
Tolerance at +25°C: ±10 ppm
Tolerance over Temp.: ±20 ppm
Aging: ±1 ppm max 1 year
ESR max.: 60 Ohm
Operating Temp.: -30°C/+85°C

Package Unit: 3000pcs/reel

SUZHOU UTECH TECHNOLOGY CO.,LTD

Type: Oscillator VCTCXO-SMD2520-M4
Frequency: 64.000000 MHz
Supply Voltage (VDD): +3.3 VDC ±5%
Input Current: 2.0 mA max.

Frequency Tolerance: ±1.0 ppm
... Frequency tolerance: ±1.0 ppm max. @+25°C
... Frequency Stability Vs Temperature Range: ±0.5 ppm max
... Frequency Stability Vs Supply Voltage (±5%): ±0.2 ppm max
... Frequency Stability Vs Load (±10%): ±0.2 ppm max
... Frequency aging: ±1.0 ppm/year max

Absolute Pulling Range (APR): ±20 ppm min
Control Voltage Range: 1.65V±1.0V
Output Waveform: Clipped Sine wave
Output Load: 10 KΩ // 10 pF
Start-up Time Vs frequency 2.0 ms max within ±1.0 ppm

Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C

Phase Noise
... 10Hz Offset: -70 dBc/Hz
... 100Hz Offset: -105 dBc/Hz
... 1KHz Offset: -125 dBc/Hz
... 10KHz Offset: -145 dBc/Hz
... 100KHz Offset: -155 dBc/Hz

Package Unit: 1000pcs/reel

SUZHOU UTECH TECHNOLOGY CO.,LTD
TR3000
Lead time: 8 Weeks

SUZHOU UTECH TECHNOLOGY CO.,LTD
​​QRSC
​TR3000

SUZHOU UTECH TECHNOLOGY CO.,LTD
Package Unit: 1000pcs/reel

SUZHOU UTECH TECHNOLOGY CO.,LTD
TR3000

SUZHOU UTECH TECHNOLOGY CO.,LTD
Package Unit: 3000pcs/reel

Bauform: SMD5032-M4
Frequency: 8,192000 MHz
Mode: fund.
Load Capacitance: 12 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±50 ppm
ESR max.: 40 Ohm
Operating Temp.: -20 / +70 °C

Bauform: SMD5032-M4
Frequency: 18,432000 MHz
Mode: fund.
Load Capacitance: 16 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±30 ppm
ESR max.: 40 Ohm
Operating Temp.: -20 / +70 °C

Bauform: SMD3225-M4
Frequency: 24,576000 MHz
Mode: fund.
Load Capacitance: 12 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±10 ppm
ESR max.: 60 Ohm
Operating Temp.: -20 / +70 °C

Bauform: SMD3225-M4
Frequency: 24,576000 MHz
Mode: fund.
Load Capacitance: 18 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±10 ppm
ESR max.: 60 Ohm
Operating Temp.: -20 / +70 °C

SUZHOU UTECH TECHNOLOGY CO.,LTD
QRS3
TR3000

Bauform: SMD3225-M4
Frequency: 13,560000 MHz
Mode: fund.
Load Capacitance: 12 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±100 ppm
ESR max.: 60 Ohm
Operating Temp.: -40 / +85 °C

Bauform: SMD3225-M4
Frequency: 14,745600 MHz
Mode: fund.
Load Capacitance: 16 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±10 ppm
ESR max.: 60 Ohm
Operating Temp.: -20 / +70 °C

Bauform: SMD5032-M4
Frequency: 12,000000 MHz
Mode: fund.
Load Capacitance: 16 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±100 ppm
ESR max.: 40 Ohm
Operating Temp.: -40 / +85 °C

Bauform: SMD5032-M4
Frequency: 20,000000 MHz
Mode: fund.
Load Capacitance: 16 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±30 ppm
ESR max.: 40 Ohm
Operating Temp.: -20 / +70 °C

SUZHOU UTECH TECHNOLOGY CO.,LTD
TR1000

Manufacturer: CITIZEN

Model: CM315D 32768EZFT (SMD3215-M2)
Frequency: 32.768 kHz
Mode: XY
Load Capacitance: 12.5 pF
Tolerance at +25 °C: ±10ppm
Tolerance over Temp.: f (ppm) = TC · (25 °C - T)²
……[TC: -0,034ppm/°C² ±0,006ppm/°C² max.]
ESR max.: 70000 Ohm
Aging (first year) max.: ±3 ppm
Operating Temp.: -40°C/+85°C

Package Unit: 3000 pcs/reel

SUZHOU UTECH TECHNOLOGY CO.,LTD
TR3000

Manufacturer: CITIZEN

Model: CM315D 32768 DZFT (SMD3215-M2)
Frequency: 32.768 kHz
Mode: XY
Load Capacitance: 12.5 pF
Tolerance at +25 °C: ±20ppm
Tolerance over Temp.: f (ppm) = TC · (25 °C - T)²
……[TC: -0,034ppm/°C² ±0,006ppm/°C² max.]
ESR max.: 70000 Ohm
Aging (first year) max.: ±3 ppm
Operating Temp.: -40°C/+85°C

Package Unit: 3000 pcs/reel

SUZHOU UTECH TECHNOLOGY CO.,LTD
Package Unit: 3000pcs/reel

Bauform: SMD3225-M4
Frequency: 16,000000 MHz
Mode: fund.
Load Capacitance: 20 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±15 ppm
ESR max.: 60 Ohm
Operating Temp.: -40 / +85 °C

Bauform: SMD3225-M4
Frequency: 14,318180 MHz
Mode: fund.
Load Capacitance: 12 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±10 ppm
ESR max.: 60 Ohm
Operating Temp.: -20 / +70 °C

Bauform: SMD3225-M4
Frequency: 24,576000 MHz
Mode: fund.
Load Capacitance: 12 pF
Tolerance at +25 °C: ±10 ppm
Tolerance over Temp.: ±100 ppm
ESR max.: 60 Ohm
Operating Temp.: -40 / +85 °C
