O-SMD3225-M4-156.250000 MHz-3.3-50-40105
SUZHOU UTECH TECHNOLOGY CO.,LTD

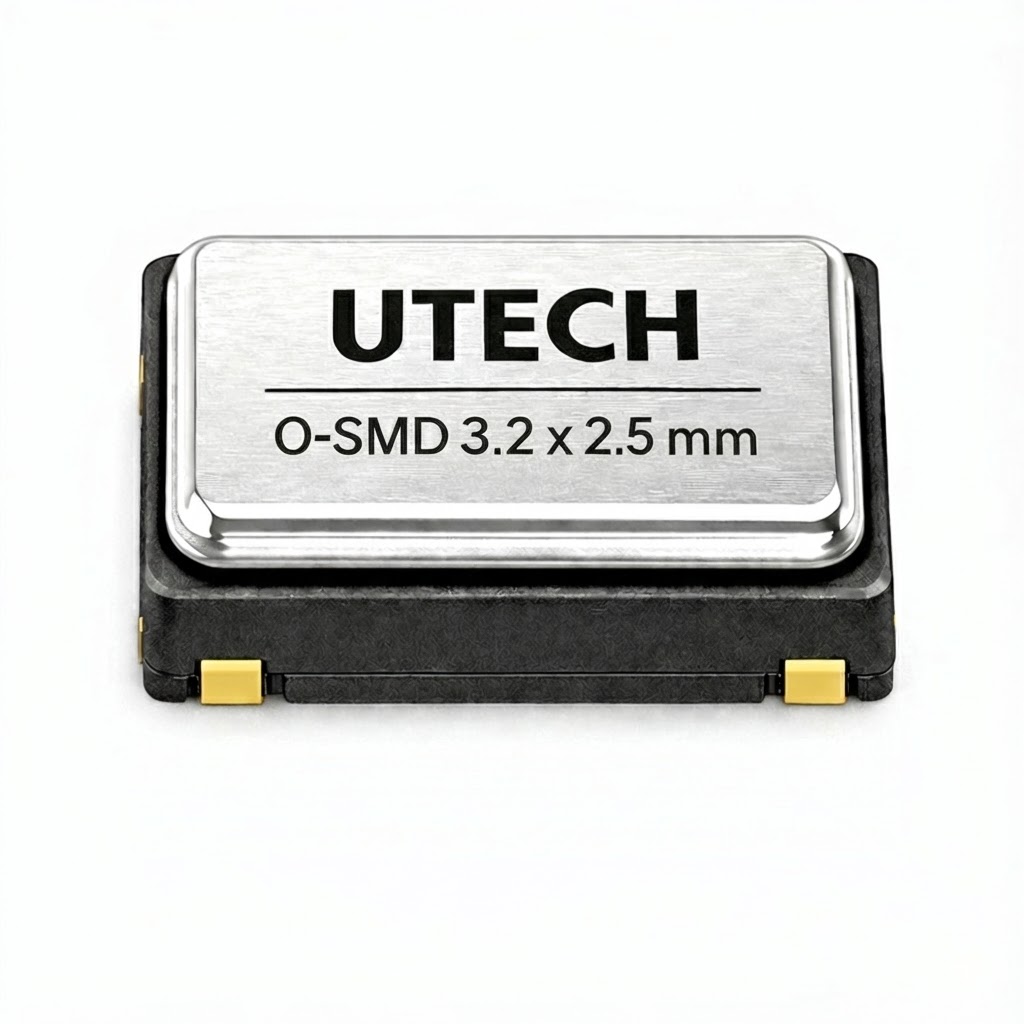

O-SMD3225-M4
This product has no valid combination.
Specifications
| ALL | |
|---|---|
| A 1.00 Manufacturer Name | UTECH |
| A 1.01 Manufacturer Part No. | QOS3156250M33H |
| A 1.03 Series | QOS3 |
| A 1.04 Dimension & Type | MHz | SMD3225 (3.2 x 2.5 mm) |
| A 1.02 Description | Quartz Crystal Oscillator |
| A 1.06 Date Created | 2025-08 |
| A 1.05 PU | TR3000 |
| A 1.07 Last Update | 2025-08-04 |
| OSCILLATOR | |
|---|---|
| 3.01 Nominal Frequency (Fo) | 156.250000 MHz |
| 3.02 Supply Voltage (VDD) | +3.3V ±5.0% |
| 3.03 Input Current | 60 mA |
| O 3.04 Frequency Stability Over All * | 50.0 |
| O 3.05 Operating Temp. Range | -40°C ~ +85°C |
| 3.07 Output Logic | HCMOS |
| 3.08 Output Load | CL=2pF |
| 3.09 “1” Level | ≥ 90 % VDD |
| 3.10 “0” Level | - |
| O 3.11 Symmetry | 45 / 55 |
| O 3.12 Rise / Fall Time | 0.7 ns |
| O 3.13 Output Disable / Enable Delay Time | - |
| O 3.14 Start-up Time | 10 ms Max. |
| Uncategorized | |
|---|---|
| Phase Noise max. at 10 kHz at offset | -138 dBc/Hz |
| Phase Noise max. at 100 kHz at offset | -146 dBc/Hz |
| Phase Noise max. at 1 MHz at offset | -150 dBc/Hz |
| Phase Noise max. at 10 MHz at offset | -152 dBc/Hz |
| Phase Noise max. at 20 MHz at offset | -155 dBc/Hz |
| Phase Noise max. at 100 MHz at offset | -155 dBc/Hz |
