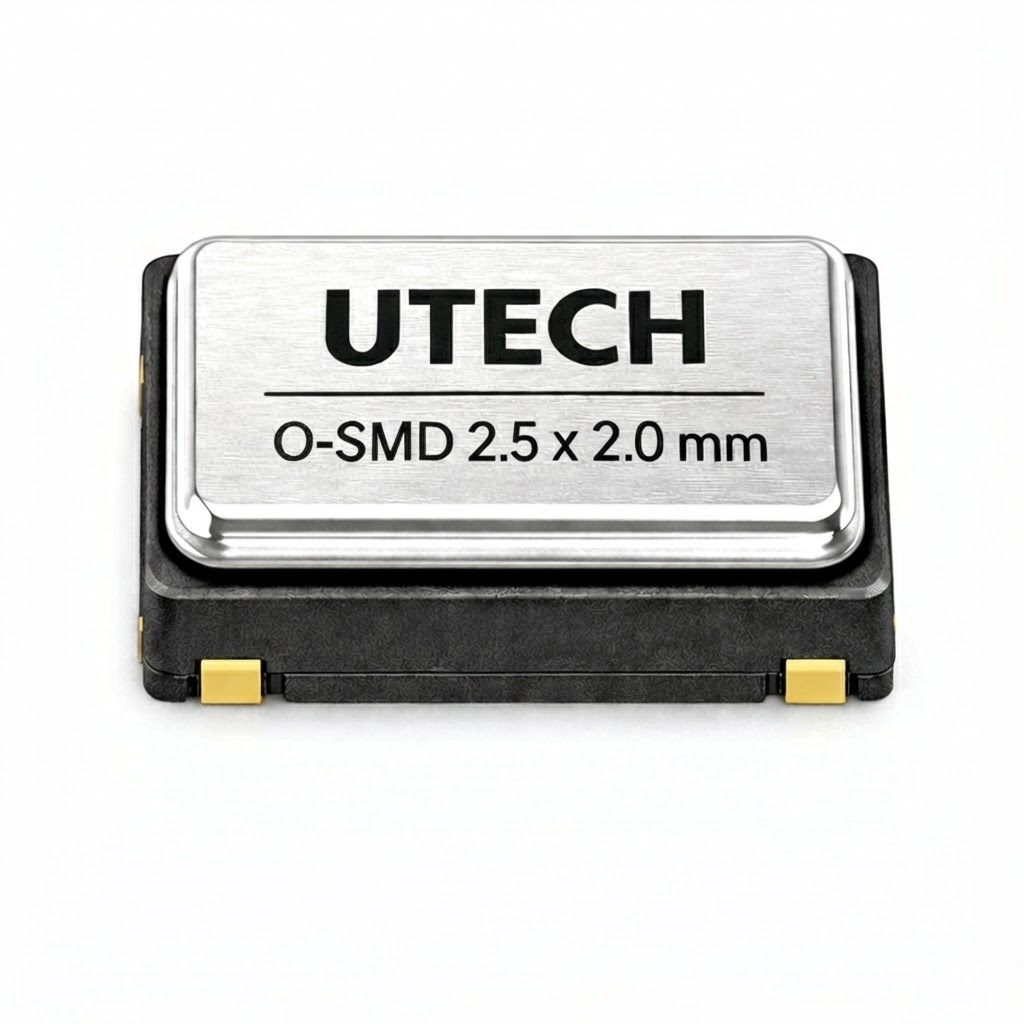

  2. O-SMD2520-M4–13.560000 MHz-3.3-25-4085-LEGIC

O-SMD2520-M4–13.560000 MHz-3.3-25-4085-LEGIC

https://timingdevices.eu/web/image/product.template/8043/image_1920?unique=759f39f

'-
Manufacturer: Utech Technology Co., Ltd.
Series: Oscillator SMD2520-M4
Type: QOS2
Dimension (mm): 2.5 x 2.0 x 0.90
Frequency: 13.560000 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Load(Impedance): 15 pF ±1.5pF
CMOS/TTL, Tristate
Icc = 7mA max.
Frequency Tolerance: ±25 ppm*
Aging: ±5ppm max. per year (at +25°C ±5°C)
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
Package Unit: 1000pcs/reel
-
*(Incl. Freq. Tolerance, Temp., Supply Voltage and Load)

0.0000 EUR 0.0 EUR 0.0000 EUR

Not Available For Sale

Quantity Unit Price
from 1 0.0000 EUR
from 31 1.5000 EUR
from 100 0.5000 EUR
from 1000 0.2800 EUR
from 3000 0.2600 EUR
  • A 1.00 Manufacturer Name
  • A 1.01 Manufacturer Part No.
  • A 1.02 Description
  • A 1.03 Series
  • A 1.04 Dimension & Type
  • A 1.05 PU
  • A 1.06 Date Created
  • 3.01 Nominal Frequency (Fo)
  • 3.02 Supply Voltage (VDD)
  • 3.03 Input Current
  • O 3.04 Frequency Stability Over All *
  • O 3.05 Operating Temp. Range
  • 3.07 Output Logic
  • 3.08 Output Load
  • 3.09 “1” Level
  • 3.10 “0” Level
  • O 3.11 Symmetry
  • O 3.12 Rise / Fall Time
  • O 3.13 Output Disable / Enable Delay Time
  • O 3.14 Start-up Time

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

ALL
A 1.00 Manufacturer Name UTECH
A 1.01 Manufacturer Part No. QOS2013560K33C
A 1.02 Description Quartz Crystal Oscillator
A 1.03 Series QOS2
A 1.04 Dimension & Type MHz | SMD2520 (2.5 x 2.0 mm)
A 1.05 PU TR3000
A 1.06 Date Created 2026
OSCILLATOR
3.01 Nominal Frequency (Fo) 13.560000 MHz
3.02 Supply Voltage (VDD) 3.3
3.03 Input Current 7mA
O 3.04 Frequency Stability Over All * 25.0
O 3.05 Operating Temp. Range -40°C ~ +85°C
3.07 Output Logic HCMOS
3.08 Output Load 15 pF
3.09 “1” Level ≥ 90 % VDD
3.10 “0” Level -
O 3.11 Symmetry -
O 3.12 Rise / Fall Time -
O 3.13 Output Disable / Enable Delay Time -
O 3.14 Start-up Time -
