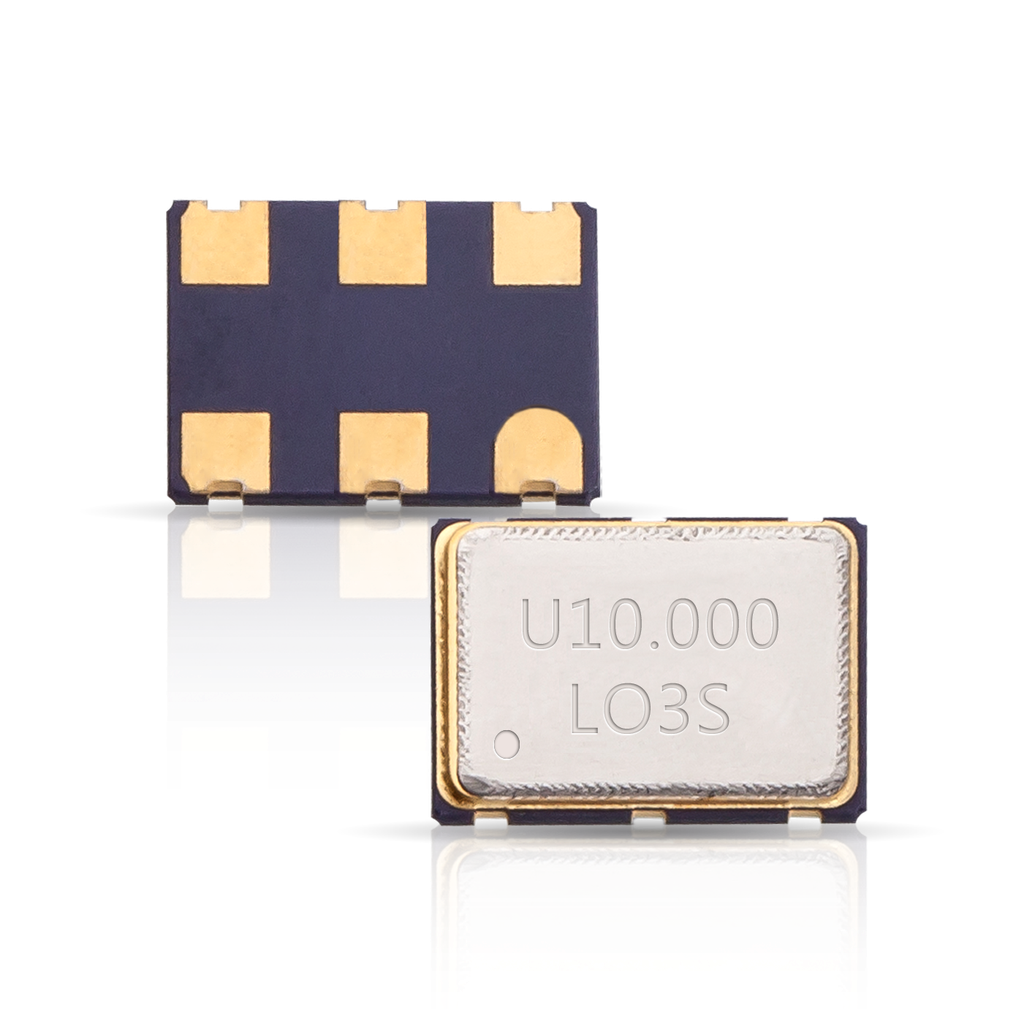

O-LVDS-SMD3225-M6-625.000000 MHz-1.8-50-4085

• A 1.00 Manufacturer Name
  • UTECH
• A 1.01 Manufacturer Part No. -
• A 1.02 Description
  • Quartz Crystal Oscillator
• A 1.03 Series SMD3225 OSC LVDS
• A 1.04 Dimension & Type
  • MHz | SMD3225 (3.2 x 2.5 mm)
• A 1.05 PU TR3000
• A 1.06 Date Created
  • 2026-04
• A 1.07 Last Update
  • -
• OL 3.01 Frequency (FL)
  • 625.000000 MHz
• OL 3.02 Type
  • SMD3225 OSC LVDS
• OL 3.03 Frequency tolerance (Overall）
  • ±50 ppm
• OL 3.04 Input Voltage (VDD)
  • 1.80 V (1.62 ~ 1.98 V)
• OL 3.05 Output load condition
  • 100 Ω
• OL 3.06 Input Current
  • 50 mA
• OL 3.07 Start-up Time
  • 10 mSec
• OL 3.08 Rise Time /Fall Time
  • 4 nSec
• OL 3.09 Operating temperature range
  • -40°C ~ +85°C
• OL 3.10 Storage temperature range
  • -55°C ~ +125°C
• OL 3.11 Duty Cycle
  • 45% / 55%
• OL 3.12 Output High
  • 1.40 V typ. / 1.60 V max.
• OL 3.13 Output Low
  • 1.10 V typ. / 0.90 V min.
• OL 3.14 Aging
  • ±3 ppm max / year (at +25°C±5°C)
• OL 3.15 RMS Phase Jitter
  • 1 pSec max. at 12 kHz to 20 MHz
• OL 3.16 High level input voltage
  • 70% VDD min.
• OL 3.17 Low level input voltage
  • 30% VDD max.
