O-VCTCXO-SMD2016-M4-48.000000 MHz-2.8~3.3-1.5-4085-CSW | TG2016SMN
EPSON
X1G005441031612
TG2016SMN 48.000000MHZ MCGNNM

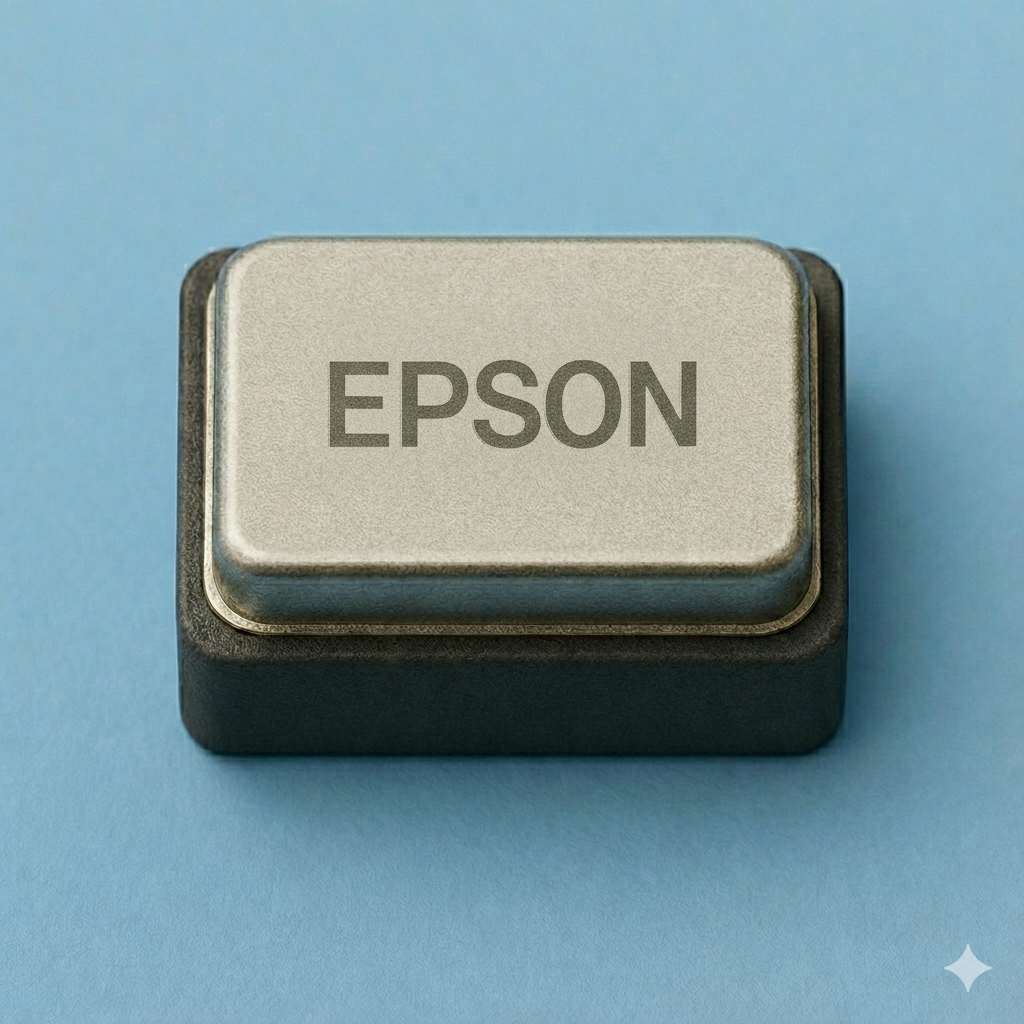

Case Size: Oscillator SMD2016-M4 (2.0 × 1.6 × 0.73 mm)
Series: TG2016SMN
Type: VCTCXO - CSW Output (Clipped Sine Wave)
Frequency: 48.000000 MHz
Supply Voltage (VDD): +2.8 ~ +3.3 VDC
Input Current: 2.0 mA max.
Frequency Tolerance (at +25°C): ±1.5 ppm
Frequency Stability vs Temperature Range: ±0.5 ppm
Frequency Stability Vs Supply Voltage (±5%): ±0.1 ppm
Frequency Stability Vs Load (±10%). ±0.1 ppm
Frequency control range: ±8.0 ppm to ±12.0 ppm
Symmetry: 50%±5%
Aging max.: ±1.5ppm
Output Logic / Output Load: CSW - Clipped Sine Wave
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +125°C
Start-up Time: ≤ 2 ms
Package Unit: 250 pcs/reel
Specifications
| 3.01 Nominal Frequency (Fo) | 48.000000 MHz |
| 3.02 Supply Voltage (VDD) | 2.8~3.3 |
| 3.03 Input Current | 2.0 mA |
| O 3.04 Frequency Stability Over All * | 1,5 |
| O 3.05 Operating Temp. Range | -40°C ~ +85°C |
| 3.07 Output Logic | - |
| 3.08 Output Load | - |
| 3.09 “1” Level | - |
| 3.10 “0” Level | Voltage (VDD): +2.8 ~ +3.3 VDC |
| O 3.11 Symmetry | - |
| O 3.12 Rise / Fall Time | - |
| O 3.13 Output Disable / Enable Delay Time | - |
| O 3.14 Start-up Time | Start-up Time: ≤ 2 ms |
