O-VCTCXO-SMD2016-M4-39.000000 MHz-2.8-2.7-4085-CSW
Manufacturer: Utech Electronics Technology Co., Ltd.

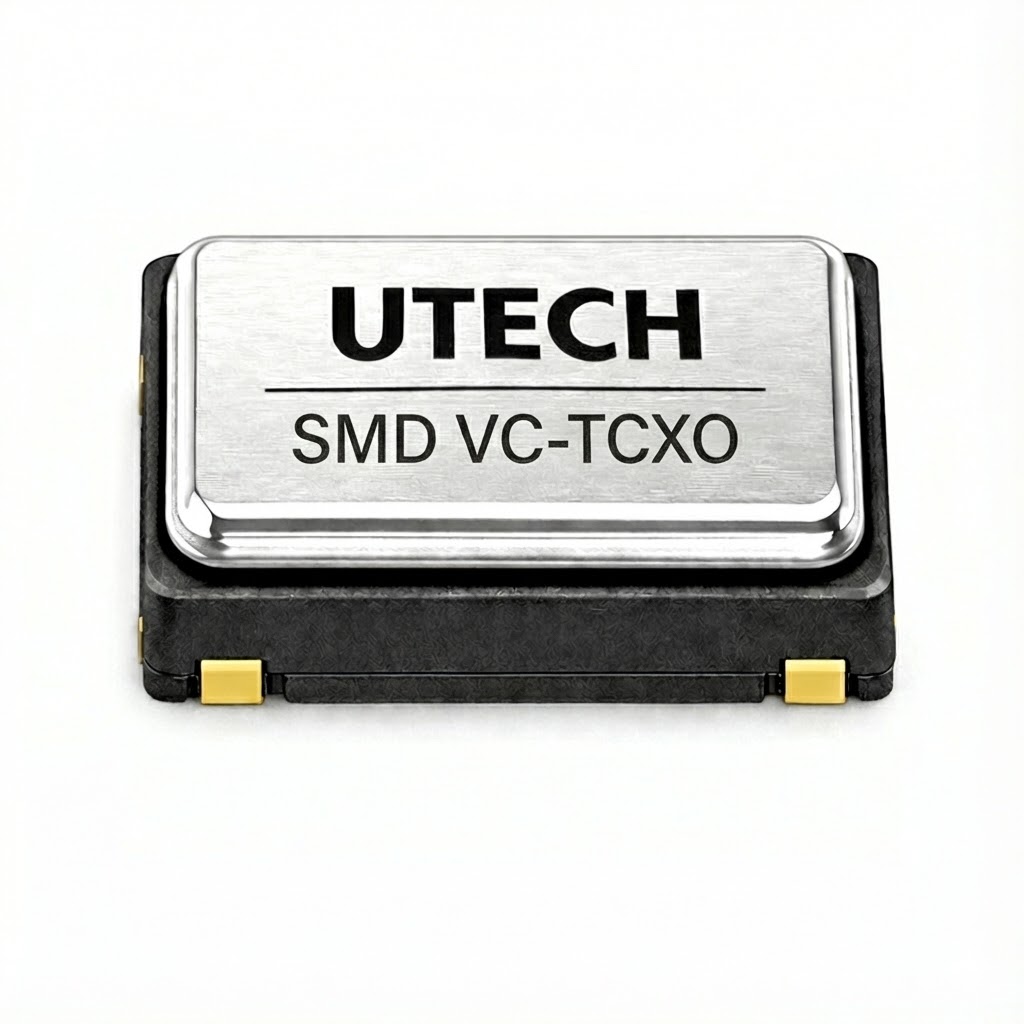

Type: Oscillator VCTCXO-SMD2016-M4
Frequency: 39.000000 MHz
Supply Voltage (VDD): +2.8 VDC ±5%
Input Current: 1.8 mA max.
Frequency Tolerance: ±2.7 ppm
... Frequency tolerance: ±1.5 ppm @+25°C
... Frequency/temperature characteristics: ±1.0 ppm
... Frequency/load coefficient: ±0.1 ppm
... Frequency/voltage coefficient: ±0.1 ppm
... Frequency aging: ±1.0 ppm
Frequency control range: ±8.0 ppm to ± 12.0 ppm at VC =1.4V±1.0V (VCC =2.8V)
Output Logic | Output Load: Clipped Sine Wave | 10kΩ / 10pF ±10%
Operating Temperature: -40°C to +85°C
Storage Temperature: -40°C to +90°C
Start-up Time: ≤ 1 ms
Package Unit: 1000pcs/reel
Specifications
| 3.01 Nominal Frequency (Fo) | 39.000000 MHz |
| 3.02 Supply Voltage (VDD) | 2.8 |
| 3.03 Input Current | 1.8 mA |
| O 3.04 Frequency Stability Over All * | 2,7 |
| O 3.05 Operating Temp. Range | -40°C ~ +85°C |
| 3.07 Output Logic | - |
| 3.08 Output Load | 10pF |
| 3.09 “1” Level | - |
| 3.10 “0” Level | Voltage (VDD): +2.8 VDC ±5% |
| O 3.11 Symmetry | - |
| O 3.12 Rise / Fall Time | - |
| O 3.13 Output Disable / Enable Delay Time | - |
| O 3.14 Start-up Time | Start-up Time: ≤ 1 ms |
