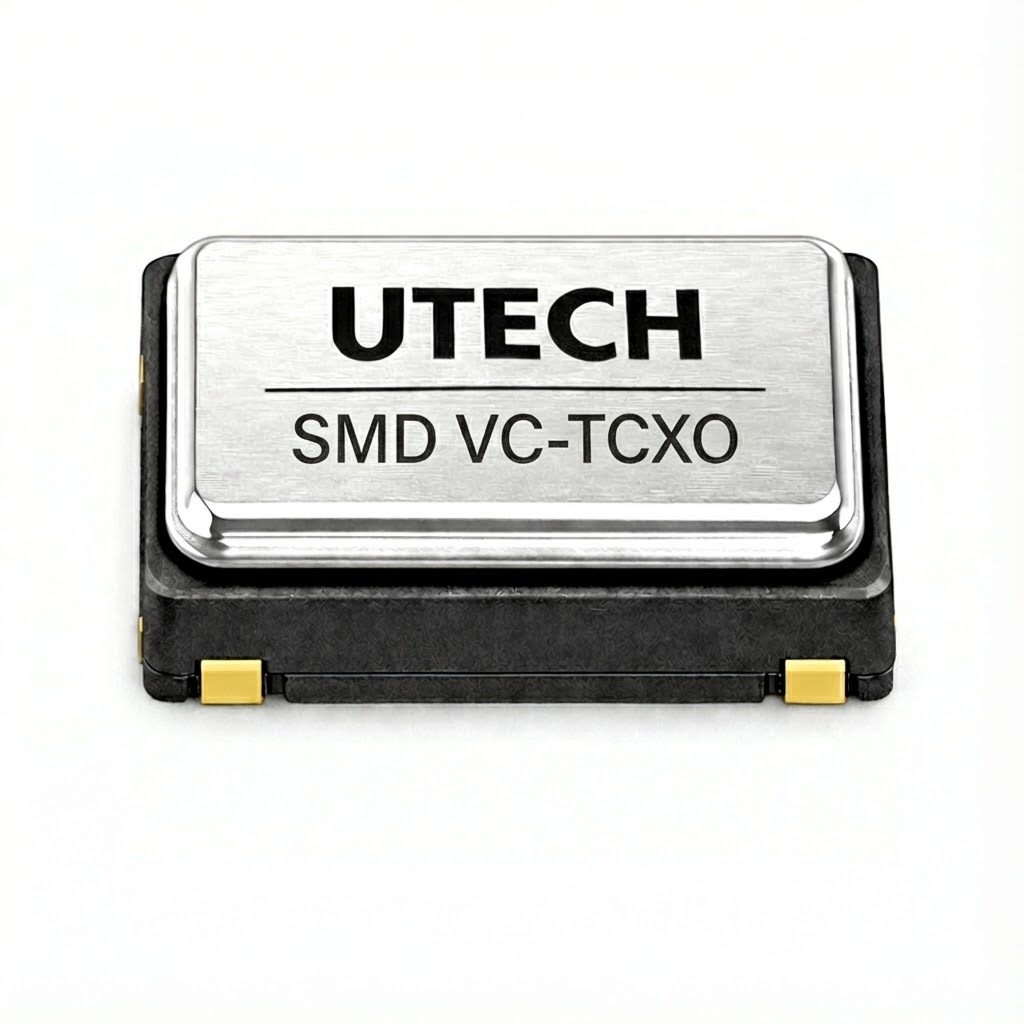

O-VCTCXO-SMD3225-M4-19.200000 MHz-3.3-2.5-3085-CSW
Manufacturer: Utech Electronics Technology Co., Ltd.
Series: Oscillator SMD3225-M4 / QZS3
Type: VCTCXO-SMD3225-M4
Frequency: 19.200000 MHz
Supply Voltage (VDD): +3.3 VDC ±5%
Input Current: 2.0 mA max.
Frequency Tolerance: ±1.5 ppm
Output Logic | Output Load: Clipped Sine Wave | 10kΩ / 10pF
Operating Temperature: -30°C to +85°C
Storage Temperature: -40°C to +85°C
Absolute Pulling Range (APR): ±20 ppm min., ±30ppm max.
Control Voltage Range: 1.65V ±1.0V
Phase Noise at 12,80 MHz:
-90dBc/Hz at 10 Hz
-115dBc/Hz at 100 Hz
-128dBc/Hz at 1 kHz
-145dBc/Hz at 10 kHz
-149dBc/Hz at 100 kHz
-150dBc/Hz at 1 MHz
Start-up Time: ≤ 2 ms
Package Unit: 1000pcs/reel
Specifications
| 3.01 Nominal Frequency (Fo) | 19.200000 MHz |
| 3.02 Supply Voltage (VDD) | 3.3 |
| 3.03 Input Current | 2.0 mA |
| O 3.04 Frequency Stability Over All * | 2,5 |
| O 3.05 Operating Temp. Range | -30°C ~ +85°C |
| 3.07 Output Logic | - |
| 3.08 Output Load | 10pF |
| 3.09 “1” Level | - |
| 3.10 “0” Level | Voltage (VDD): +3.3 VDC ±5% |
| O 3.11 Symmetry | - |
| O 3.12 Rise / Fall Time | - |
| O 3.13 Output Disable / Enable Delay Time | - |
| O 3.14 Start-up Time | Start-up Time: ≤ 2 ms |
