  2. O-TCXO-SMD2016-M4-48.000000 MHz-1.8-1.5-4085-CSW

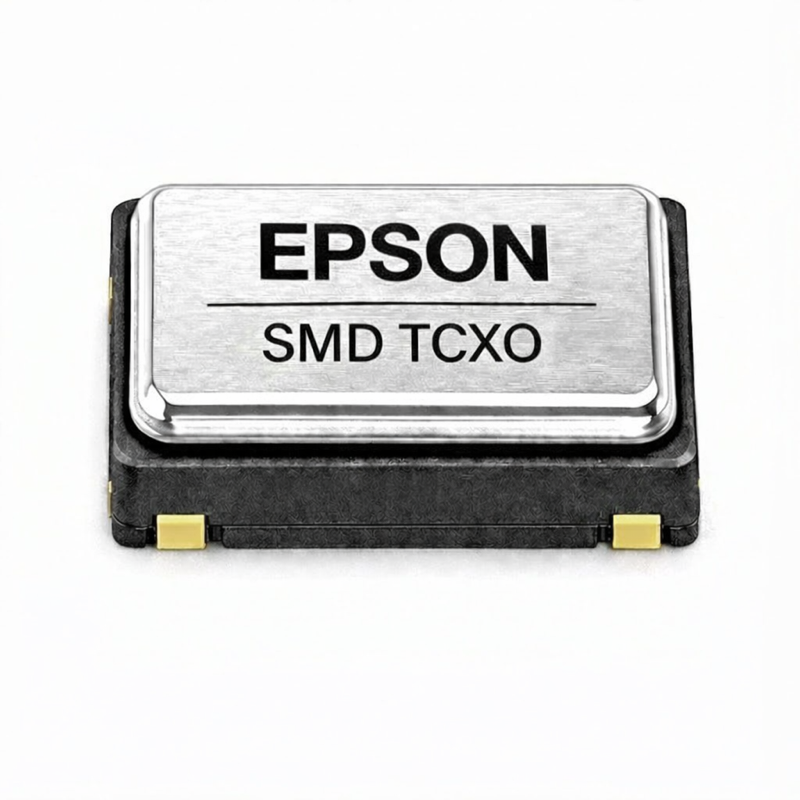

O-TCXO-SMD2016-M4-48.000000 MHz-1.8-1.5-4085-CSW

https://timingdevices.eu/web/image/product.template/11496/image_1920?unique=08364f6

EPSON
X1G005441021614
TG2016SMN 48.000000MHZ ECGNNM
TR1000L

TG2016SMN 48.0000M-ECGNNM

0.0000 EUR 0.0 EUR 0.0000 EUR

Not Available For Sale

Quantity Unit Price
from 1 0.0000 EUR
from 11 1.5000 EUR
from 250 0.8500 EUR
from 3000 0.3800 EUR
from 9000 0.3300 EUR
  • A 1.00 Manufacturer Name
  • A 1.02 Description
  • A 1.03 Series
  • A 1.05 PU
  • A 1.06 Date Created
  • T 3.01 Nominal Frequency (Fo)^
  • T 1.03 Supply Voltage (Vdd)
  • T 1.03 Supply Voltage (Vdd)
  • T 1.04 Input Current
  • T 1.05 Output Waveform
  • T 1.06a “1” Level
  • T 1.05 Output Waveform
  • T 1.05 Output Waveform
  • T 1.05 Output Waveform
  • T 1.05 Output Waveform
  • T 1.06a “1” Level
  • T 1.05 Output Waveform
  • T 1.05 Output Waveform
  • T 3.08 b Frequency Tolerance After Reflow (at +25℃)

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

ALL
A 1.00 Manufacturer Name EPSON
A 1.02 Description Temperature Compensated Crystal Oscillator
A 1.03 Series TG2016SMN
A 1.05 PU TR2000
A 1.06 Date Created 12.02.2026
TCXO
T 3.01 Nominal Frequency (Fo)^ 48.000000 MHz
T 1.03 Supply Voltage (Vdd) Fundamental
T 1.03 Supply Voltage (Vdd) 1.8 V
T 1.04 Input Current 2.0 mA max.
T 1.05 Output Waveform CSW - Clipped sine wave
T 1.06a “1” Level ±0.5 ppm
T 1.05 Output Waveform ±0.5 ppm @ -40°C ~ +85°C
T 1.05 Output Waveform -40°C ～ +85℃
T 1.05 Output Waveform ±0.1 ppm max.
T 1.05 Output Waveform ±0.1 ppm max (Load ±10%)
T 1.06a “1” Level 15 pF
T 1.05 Output Waveform ±1.5 ppm at +25°C first year, ±5.0 ppm at +25°C 10 years
T 1.05 Output Waveform 45% ~ 55%
T 3.08 b Frequency Tolerance After Reflow (at +25℃) ±1.5 ppm
