  2. O-TCXO-SMD5032-M4-20.000000 MHz-3.3-2.5-3085-CMOS

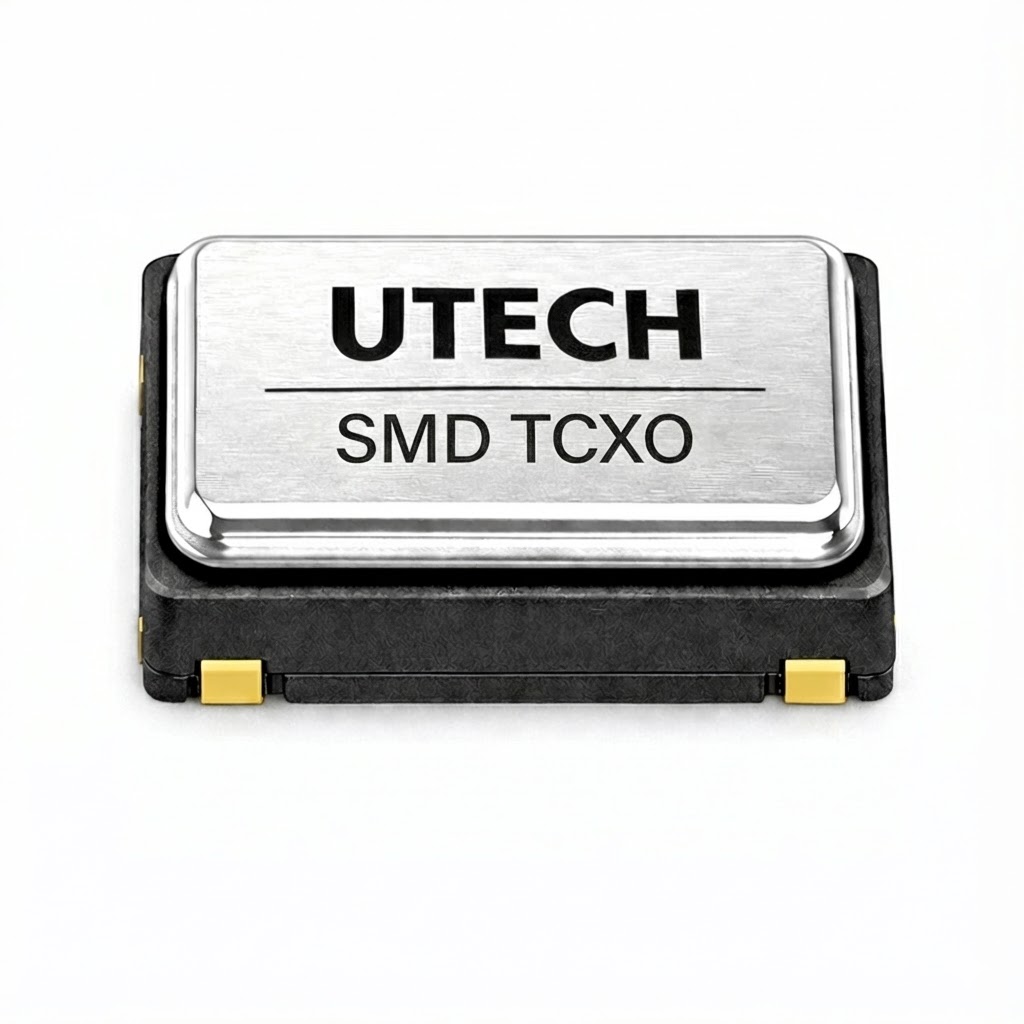

O-TCXO-SMD5032-M4-20.000000 MHz-3.3-2.5-3085-CMOS

https://timingdevices.eu/web/image/product.template/8201/image_1920?unique=ac0e25c

'-
Manufacturer: Utech Electronics Technology Co., Ltd.
Series: Oscillator SMD5032-M4
Type: TCXO-SMD5032-M4
Frequency: 20.000000 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Input Current: 6 mA max.
Frequency Tolerance: ±2.5 ppm
Output Logic / Output Load: CMOS / 15 pF
Operating Temperature: -30°C to +85°C
Storage Temperature: -55°C to +125°C
Phase Noise at 12,80 MHz: -125dBc/Hz at 100 Hz, -145dBc/Hz at 1 kHz, -150dBc/Hz at 10 kHz
Start-up Time: ≤ 2 ms
Package Unit: 1000pcs/reel

0.0000 EUR 0.0 EUR 0.0000 EUR

Not Available For Sale

  • A 1.00 Manufacturer Name
  • A 1.02 Description
  • A 1.05 PU
  • A 1.06 Date Created
  • A 1.07 Last Update
  • T 1.05 Output Waveform
  • T 1.05 Output Waveform
  • T 1.05 Output Waveform
  • T 1.06a “1” Level
  • T 1.05 Output Waveform
  • T 3.01 Nominal Frequency (Fo)^
  • T 1.03 Supply Voltage (Vdd)
  • T 1.03 Supply Voltage (Vdd)
  • T 1.04 Input Current
  • T 1.05 Output Waveform
  • T 1.06 a“0” Level
  • T 1.06a “1” Level
  • T 1.05 Output Waveform
  • T 1.06a “1” Level
  • T 1.05 Output Waveform
  • T 1.05 Output Waveform

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

ALL
A 1.00 Manufacturer Name UTECH
A 1.02 Description Temperature Compensated Crystal Oscillator
A 1.05 PU TR3000
A 1.06 Date Created 17.06.2025
A 1.07 Last Update 2025-07-18
TCXO
T 1.05 Output Waveform -40°V ～ +85°C
T 1.05 Output Waveform ±0.2 ppm max
T 1.05 Output Waveform ±0.3 ppm max
T 1.06a “1” Level 15 pF
T 1.05 Output Waveform ±1.0 ppm/year max
T 3.01 Nominal Frequency (Fo)^ 38.400000 MHz
T 1.03 Supply Voltage (Vdd) Fundamental
T 1.03 Supply Voltage (Vdd) 3.0V±5%
T 1.04 Input Current 6.0 mA max
T 1.05 Output Waveform CMOS
T 1.06 a“0” Level 0.2 * Vdd max
T 1.06a “1” Level 0.8 * Vdd min
T 1.05 Output Waveform 45% ~ 55%
T 1.06a “1” Level ±1.0 ppm max
T 1.05 Output Waveform 2.5 ppm
T 1.05 Output Waveform -40°C ～ +85℃
