  2. O-SMD2520-M4-50.000000 MHz-1.6~3.6-50-4085 | EPSON SG-210STF 50.000000MHZ L TR3000

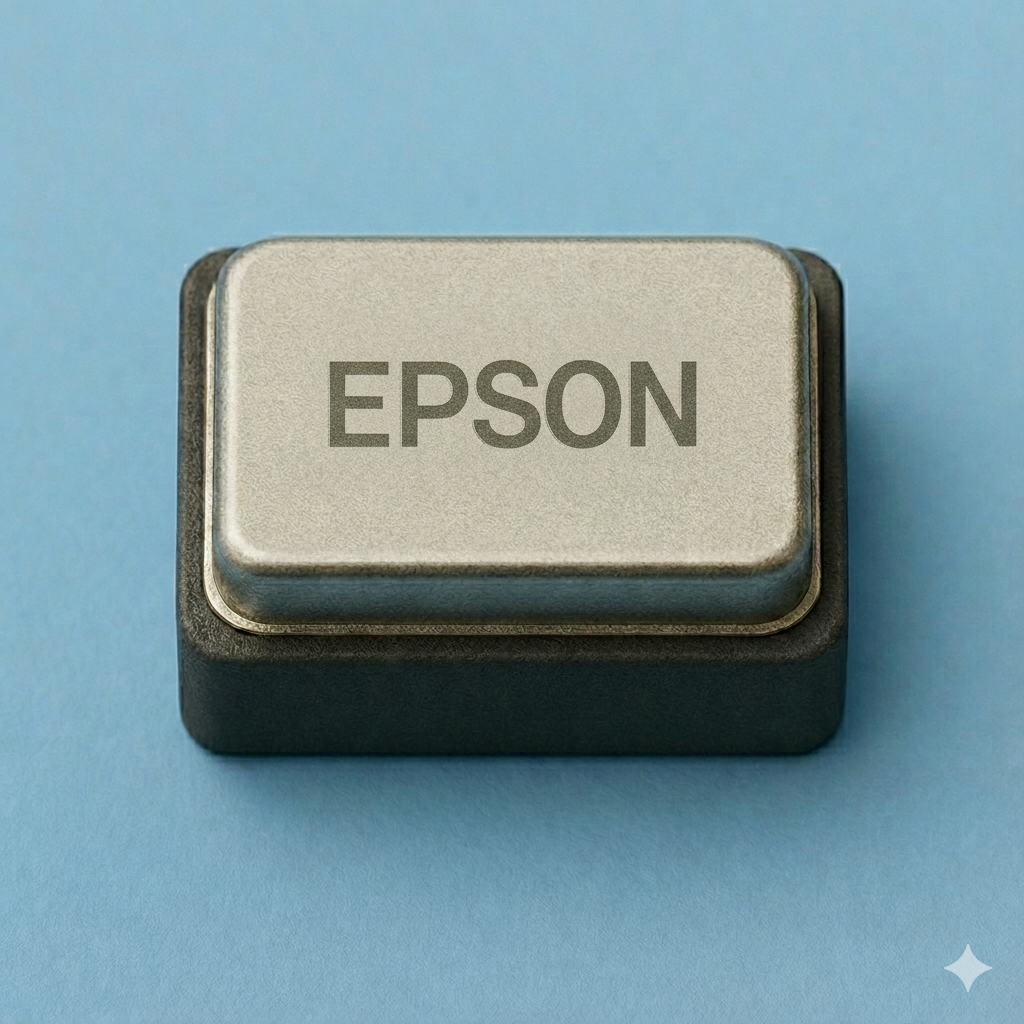

O-SMD2520-M4-50.000000 MHz-1.6~3.6-50-4085 | EPSON SG-210STF 50.000000MHZ L TR3000

https://timingdevices.eu/web/image/product.template/11493/image_1920?unique=1ad5b68

EPSON
SG-210STF 50.000000 MHz L
X1G0041710047xx
TR3000

0.0000 EUR 0.0 EUR 0.0000 EUR

Not Available For Sale

Quantity Unit Price
from 1 0.0000 EUR
from 31 1.5000 EUR
from 100 0.5000 EUR
from 1000 0.2800 EUR
from 3000 0.2600 EUR
  • A 1.00 Manufacturer Name
  • A 1.01 Manufacturer Part No.
  • A 1.02 Description
  • A 1.03 Series
  • A 1.04 Dimension & Type
  • A 1.05 PU
  • A 1.06 Date Created
  • A 1.07 Last Update
  • 3.01 Nominal Frequency (Fo)
  • 3.02 Supply Voltage (VDD)
  • 3.03 Input Current
  • O 3.04 Frequency Stability Over All *
  • O 3.05 Operating Temp. Range
  • 3.07 Output Logic
  • 3.08 Output Load
  • 3.09 “1” Level
  • 3.10 “0” Level
  • O 3.11 Symmetry
  • O 3.12 Rise / Fall Time
  • O 3.13 Output Disable / Enable Delay Time
  • O 3.14 Start-up Time

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

ALL
A 1.00 Manufacturer Name EPSON
A 1.01 Manufacturer Part No. X1G004171004700
A 1.02 Description Quartz Crystal Oscillator
A 1.03 Series SG-210STF
A 1.04 Dimension & Type MHz | SMD2520 (2.5 x 2.0 mm)
A 1.05 PU TR3000
A 1.06 Date Created 2026-02
A 1.07 Last Update 2026-02
OSCILLATOR
3.01 Nominal Frequency (Fo) 50.000000 MHz
3.02 Supply Voltage (VDD) 1.60 ~ 3.63 V
3.03 Input Current 2.6 mA max.
O 3.04 Frequency Stability Over All * 50
O 3.05 Operating Temp. Range -40°C ~ +85°C
3.07 Output Logic CMOS
3.08 Output Load 15 pF
3.09 “1” Level ≥ 90 % VDD
3.10 “0” Level -
O 3.11 Symmetry 45 / 55
O 3.12 Rise / Fall Time Fall time: 3nsec Max (20% to 80%)
O 3.13 Output Disable / Enable Delay Time -
O 3.14 Start-up Time Start-up Time: ≤ 3 ms
