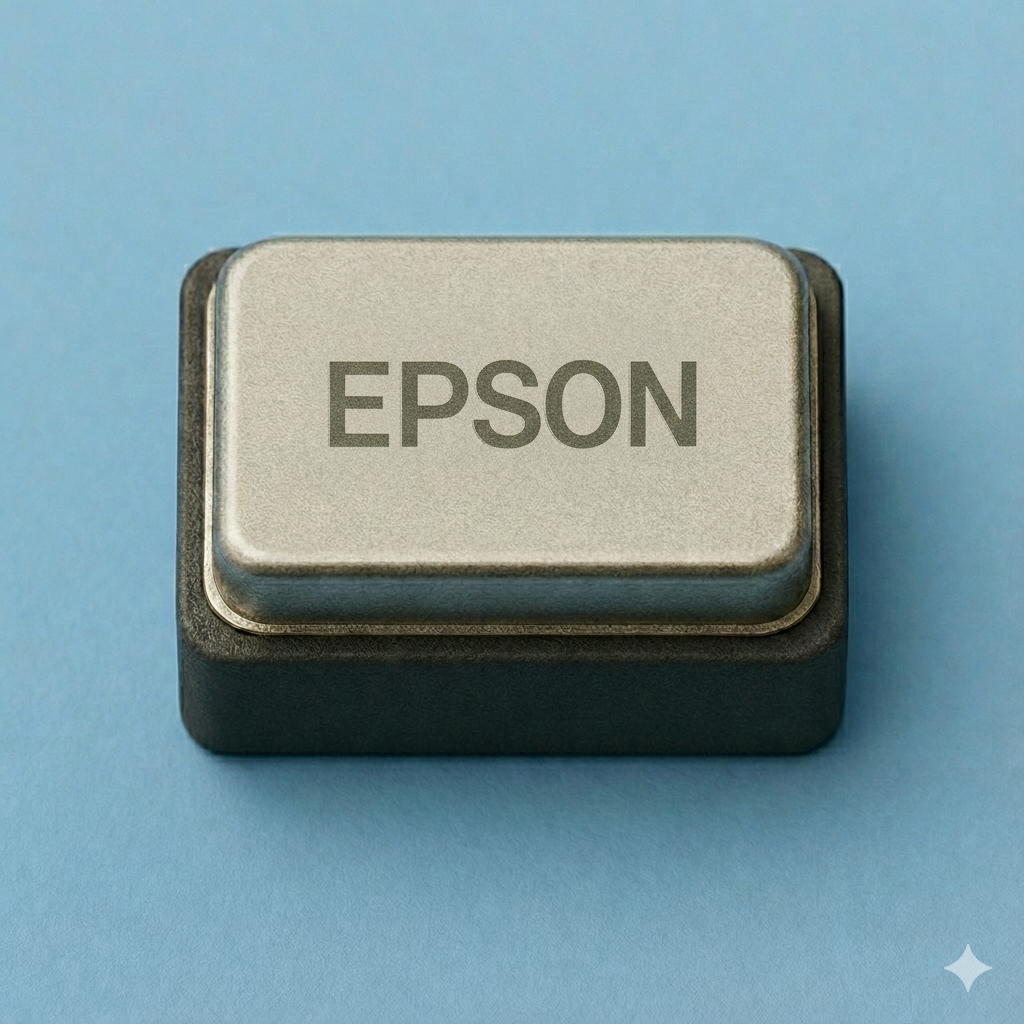

O-SMD3225-M4-16.000000 MHz-3.3-50-4085 | Epson SG3225CAN TJGA
Epson Electronics
X1G005961002215
SG3225CAN 16.000000MHZ TJGA
Typ: SMD-Oscillator SG3225CAN TJA
Case size: SMD 3.2 x 2.5 x 0.105
Frequency: 16.000000 MHz
Power Supply Voltage: 3.3 Volt
Frequency Stability: ±50 ppm
Operating Temp.: -40°C/+85°C
Package Unit: 2000 pcs/reel
Specifications
| 3.01 Nominal Frequency (Fo) | 16.000000 MHz |
| 3.02 Supply Voltage (VDD) | 3.3 |
| 3.03 Input Current | - |
| O 3.04 Frequency Stability Over All * | 50 |
| O 3.05 Operating Temp. Range | -32°C ~ +25°C |
| 3.07 Output Logic | - |
| 3.08 Output Load | - |
| 3.09 “1” Level | - |
| 3.10 “0” Level | Voltage: 1.6 to 3.6 Volt |
| O 3.11 Symmetry | - |
| O 3.12 Rise / Fall Time | - |
| O 3.13 Output Disable / Enable Delay Time | - |
| O 3.14 Start-up Time | - |
