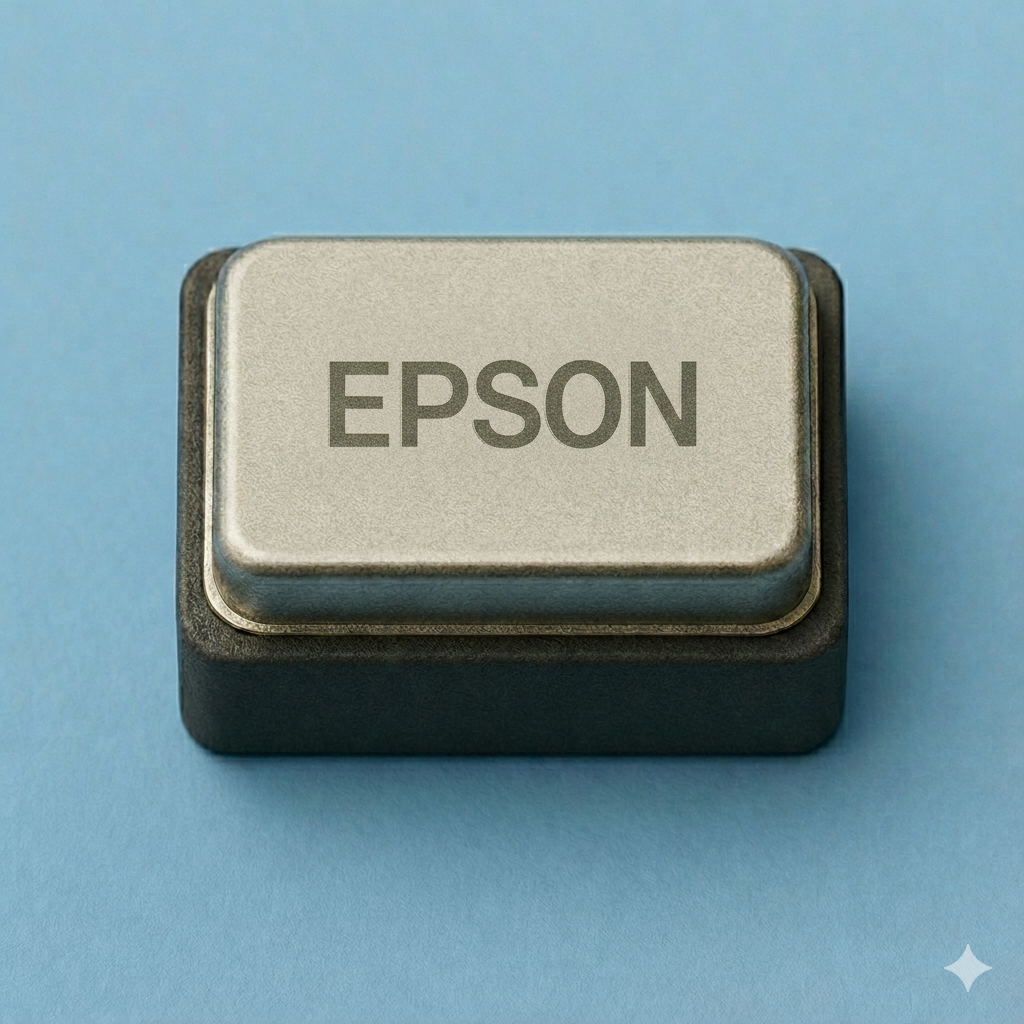

O-SMD-SG-636PCE-16.000000 MHz-3.3-100-2070 | Epson SG-636PCE C
Manufacturer: Epson Electronics
Part No.: Q33636xx2xxxx00
Typ: SMD-Oscillator SG-636PCE C
Case size: SMD 10.5 x 5.8
Frequency: 16.000000 MHz
Power Supply Voltage: 3.3 Volt
Frequency Stability: ±100 ppm
Operating Temp.: -20°C/+70°C
Output Load (HCOMS): 30pF max.
Specifications
| 3.01 Nominal Frequency (Fo) | 16.000000 MHz |
| 3.02 Supply Voltage (VDD) | 3.3 |
| 3.03 Input Current | - |
| O 3.04 Frequency Stability Over All * | 100 |
| O 3.05 Operating Temp. Range | -20°C ~ +70°C |
| 3.07 Output Logic | - |
| 3.08 Output Load | 30pF |
| 3.09 “1” Level | - |
| 3.10 “0” Level | - |
| O 3.11 Symmetry | - |
| O 3.12 Rise / Fall Time | - |
| O 3.13 Output Disable / Enable Delay Time | - |
| O 3.14 Start-up Time | - |
