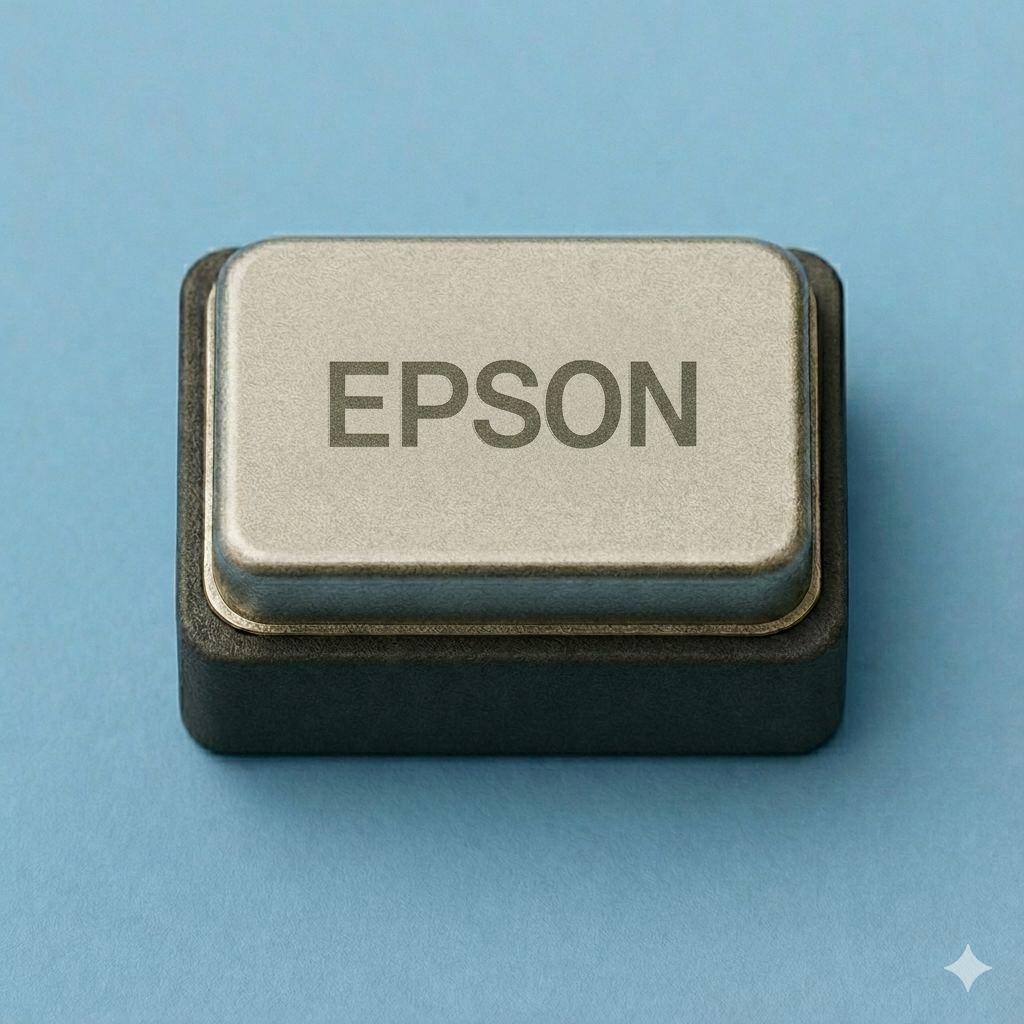

O-SMD2520-M4-50.000000 MHz-1.8-50-4085 | Epson SG-210SED
Manufacturer: Epson Electronics
Part No.: X1G002941000612
Typ: SMD-Oscillator SG-210SED
Case size: SMD2520-M4
Frequency: 50.000000 MHz
Power Supply Voltage: 1.8 Volt (1.6 ~ 2.2 Volt)
Frequency Stability: ±50 ppm
Operating Temp.: -40°C/+85°C
Output Load (HCOMS): 30pF max.
Package Unit: 250/reel
Specifications
| 3.01 Nominal Frequency (Fo) | 50.000000 MHz |
| 3.02 Supply Voltage (VDD) | 1,8 |
| 3.03 Input Current | - |
| O 3.04 Frequency Stability Over All * | 50 |
| O 3.05 Operating Temp. Range | -40°C ~ +85°C |
| 3.07 Output Logic | - |
| 3.08 Output Load | 30pF |
| 3.09 “1” Level | - |
| 3.10 “0” Level | - |
| O 3.11 Symmetry | - |
| O 3.12 Rise / Fall Time | - |
| O 3.13 Output Disable / Enable Delay Time | - |
| O 3.14 Start-up Time | - |
