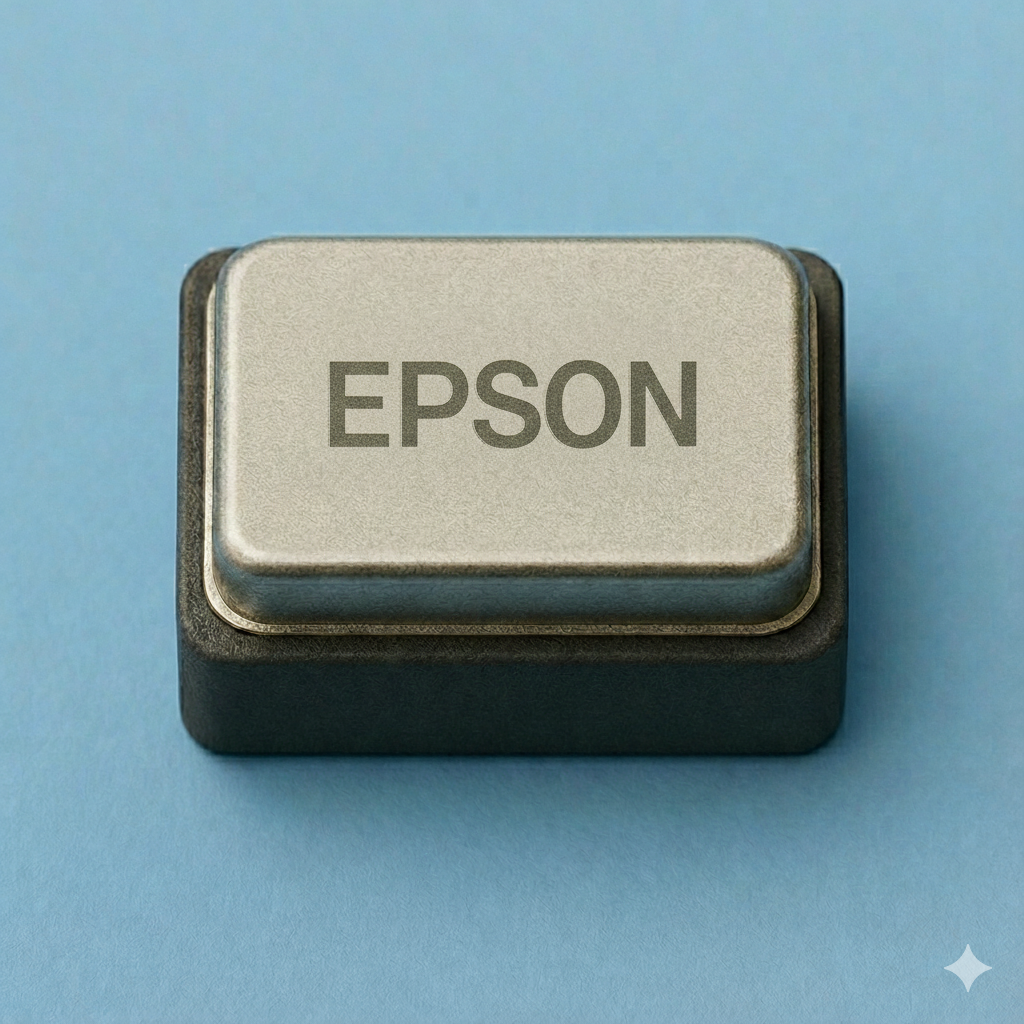

O-SMD3225-M4-16.000000 MHz-2.7~3.6-100-2070 | Epson SG-310S CF
'-
Part No.: Q33310F70029700
-
Manufacturer: Epson Electronics
-
Typ: SMD-Oscillator SG-310S CF
Case size: SMD3225-M4
Frequency: 10.600000 MHz
Power Supply Voltage: 2.7 ~ 3.6 Volt, 3.3 V typ.
Frequency Stability: ±100 ppm
Operating Temp.: -20°C/+70°C
Output Load (HCOMS): 30pF max., 15pF typ.
-
Package Unit: 2000pcs/reel
-
Q33310F70029700 (2000 pcs in package)
Q3331OF70029701 (samples)
Q3331OF70029711
Q33310F70029712 (250 pcs in package)
Q33310F70029714 (1000 pcs in package)
Specifications
| 3.01 Nominal Frequency (Fo) | 16.000000 MHz |
| 3.02 Supply Voltage (VDD) | 2.7 ~ 3.6 |
| 3.03 Input Current | - |
| O 3.04 Frequency Stability Over All * | 100 |
| O 3.05 Operating Temp. Range | -20°C ~ +70°C |
| 3.07 Output Logic | - |
| 3.08 Output Load | 30pF |
| 3.09 “1” Level | - |
| 3.10 “0” Level | Voltage: 2.7 ~ 3.6 Volt |
| O 3.11 Symmetry | - |
| O 3.12 Rise / Fall Time | - |
| O 3.13 Output Disable / Enable Delay Time | - |
| O 3.14 Start-up Time | - |
