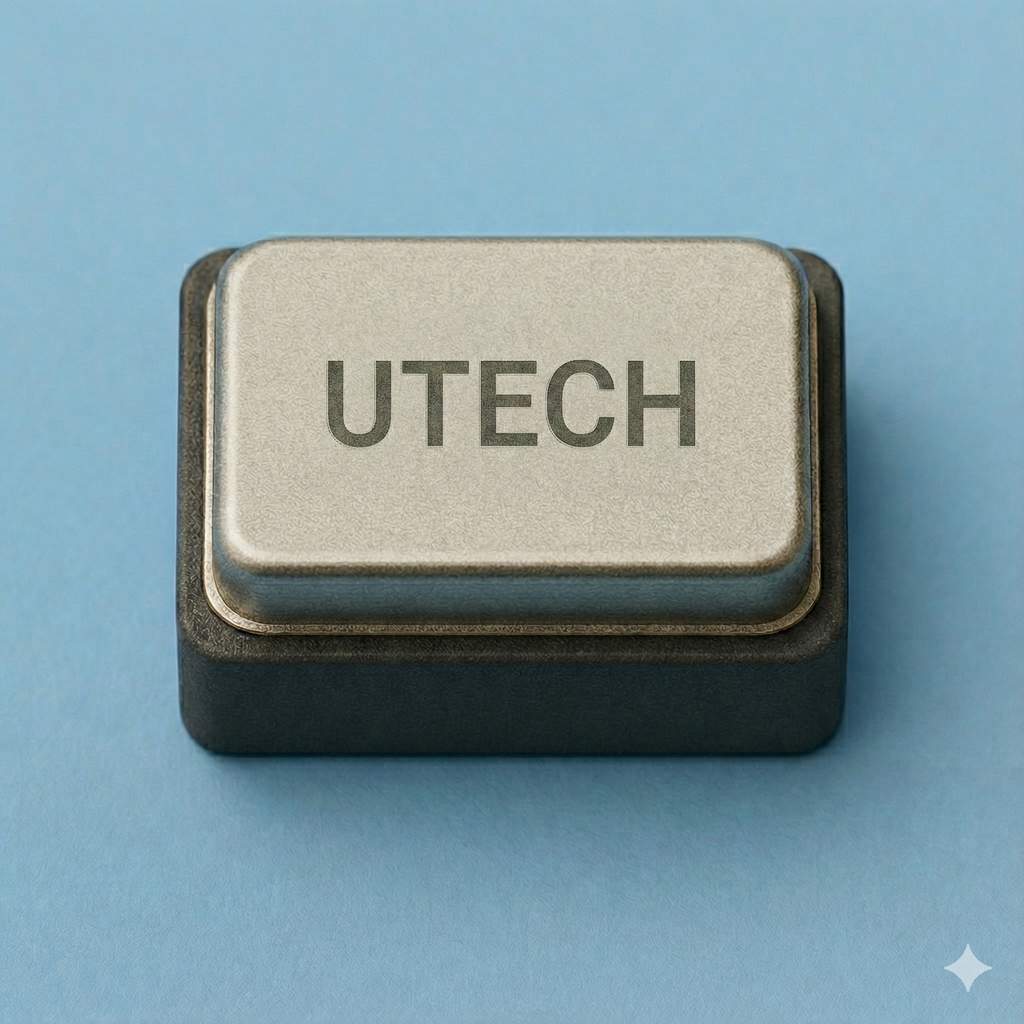

O-SMD2520-M4-20.000000 MHz-3.3-45-40125
Manufacturer: UTECH Electronics Technology Co., Ltd.
Series: Oscillator SMD2520-M4
Dimension (mm): 2.5 x 2.0 x 0.90
Frequency: 20.000000 MHz
Supply Voltage (VDD): +3.3 VDC ±10%
Frequency Tolerance: ±45 ppm OA
Operating Temperature: -40°C to +125°C
Storage Temperature: -55°C to +125°C
E/D: High = active
Package Unit: 3000 pcs/reel
Specifications
| 3.01 Nominal Frequency (Fo) | 20.000000 MHz |
| 3.02 Supply Voltage (VDD) | 3.3 |
| 3.03 Input Current | - |
| O 3.04 Frequency Stability Over All * | 45 |
| O 3.05 Operating Temp. Range | -40°C ~ +125°C |
| 3.07 Output Logic | - |
| 3.08 Output Load | - |
| 3.09 “1” Level | ≥ 90 % VDD |
| 3.10 “0” Level | - |
| O 3.11 Symmetry | - |
| O 3.12 Rise / Fall Time | - |
| O 3.13 Output Disable / Enable Delay Time | - |
| O 3.14 Start-up Time | - |
