  2. Q-SMD3215-M2-32.768 kHz-7-20-4085

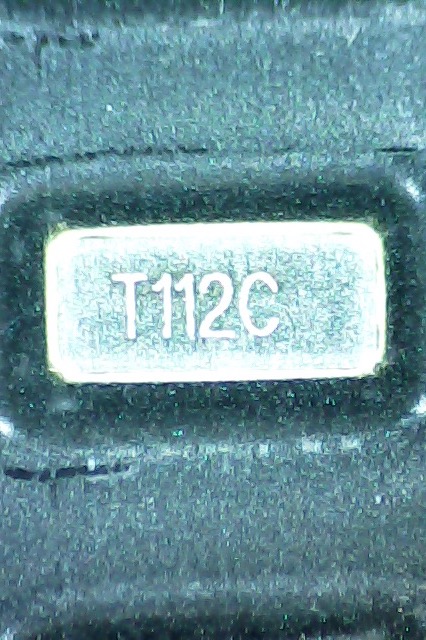

Q-SMD3215-M2-32.768 kHz-7-20-4085

https://timingdevices.eu/web/image/product.template/11201/image_1920?unique=f077820

Manufacturer: SII SEIKO INSTRUMENTS
Case Size: 3.2 x 1.5 x 0.85mm | SMD3215-M2
Frequency: 32.768 kHz
Mode: XY
Load Capacitance: 7.0 pF
Tolerance at +25 °C: ±20 ppm
Tolerance over Temp.: f (ppm) = TC · (25 °C - T)²
……[TC: -0,030ppm/°C² typ., -0,040ppm/°C² max.]
ESR max.: 70000 Ohm
Operating Temp.: -40°C/+85°C
Storage Temp.: -55°C/+125°C

Package Unit: 3000pcs/reel

0.0000 EUR 0.0 EUR 0.0000 EUR

Not Available For Sale

Quantity Unit Price
from 1 0.0000 EUR
from 31 0.4500 EUR
from 100 0.4000 EUR
from 1000 0.1800 EUR
from 3000 0.1400 EUR
  • A 1.00 Manufacturer Name
  • A 1.01 Manufacturer Part No.
  • A 1.02 Description
  • A 1.03 Series
  • A 1.04 Dimension & Type
  • A 1.05 PU
  • A 1.06 Date Created
  • A 1.07 Last Update
  • Q 3.09 Shunt Capacitance C0 (pf max.)
  • Q 3.10 Motional Capacitance C1 (fF max.)
  • Q 3.01 Nominal frequency (Fo)
  • Q 3.02 Oscillation Mode
  • Q 3.15 Trim Sensitivity Over Load (Ts)
  • Q 3.03 Load Capacitance (CL)
  • Q 3.04 Freq. Tol. max. (at +25℃)
  • Q 3.05 Freq. Stability Vs Temp. max.
  • Q 3.06 Operating Temp. Range
  • Q 3.07 Storage Temp. Range

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

ALL
A 1.00 Manufacturer Name SEIKO
A 1.01 Manufacturer Part No. -
A 1.02 Description Quartz Crystal Resonator
A 1.03 Series SC-20S
A 1.04 Dimension & Type kHz | SMD3215 (3.2 x 1.5 mm)
A 1.05 PU TR3000
A 1.06 Date Created 2026-01
A 1.07 Last Update 2026-01
QUARZ
Q 3.09 Shunt Capacitance C0 (pf max.) 1.3
Q 3.10 Motional Capacitance C1 (fF max.) -
Q 3.01 Nominal frequency (Fo) 32.768 kHz
Q 3.02 Oscillation Mode Tuning Fork XY
Q 3.15 Trim Sensitivity Over Load (Ts) -
Q 3.03 Load Capacitance (CL) 7.0 pF
Q 3.04 Freq. Tol. max. (at +25℃) 20 ppm
Q 3.05 Freq. Stability Vs Temp. max. (-0.030±10%)×10-6/℃2
Q 3.06 Operating Temp. Range -40°C ~ +85°C
Q 3.07 Storage Temp. Range -55°C ~ +125°C
