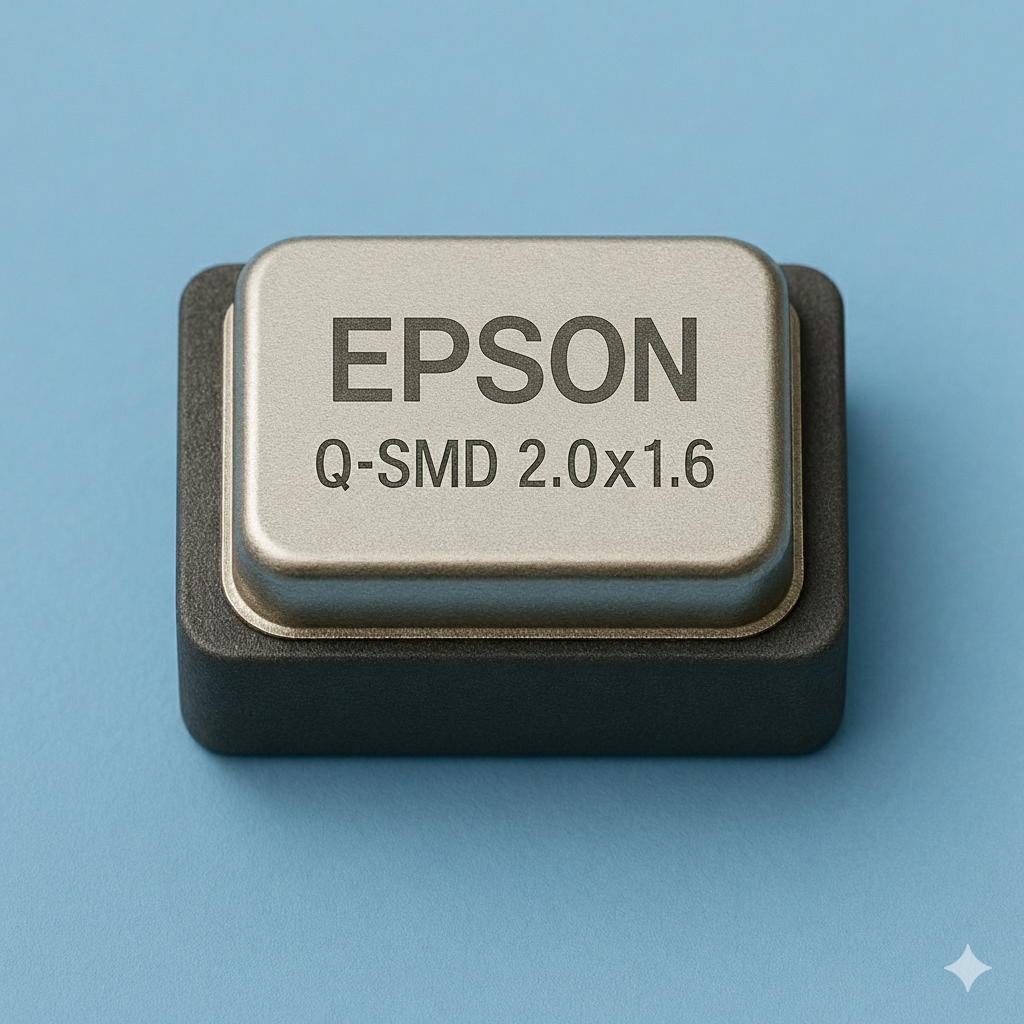

Q-SMD2016-M4-48.000000 MHz-FU-11-10/12-3085 (ESR22R)

• A 1.00 Manufacturer Name
  • EPSON
• A 1.01 Manufacturer Part No. -
• A 1.02 Description
  • Quartz Crystal Resonator
• A 1.04 Dimension & Type
  • MHz | SMD2016 (2.0 x 1.6 mm)
• Q 3.01 Nominal frequency (Fo) 48.000000 MHz
• Q 3.02 Oscillation Mode Fundamental AT
• Q 3.03 Load Capacitance (CL) 11.0 pF
• Q 3.04 Freq. Tol. max. (at +25℃) ±10 ppm
• Q 3.05 Freq. Stability Vs Temp. max.: ±12 ppm
• Q 3.06 Operating Temp. Range -30°C ~ +85°C
• Q 3.07 Storage Temp. Range -55°C ~ +125°C
• Q 3.09 Shunt Capacitance C0 (pf max.) 1.0
• Q 3.10 Motional Capacitance C1 (fF max.) 3.0
• Q 3.11 Drive Level (Typical) 10 µW
• Q 3.12 Drive Level (Max.) 200 µW
• Q 3.15 Aging ±1 ppm max first year
• Q 1.4 Version -
