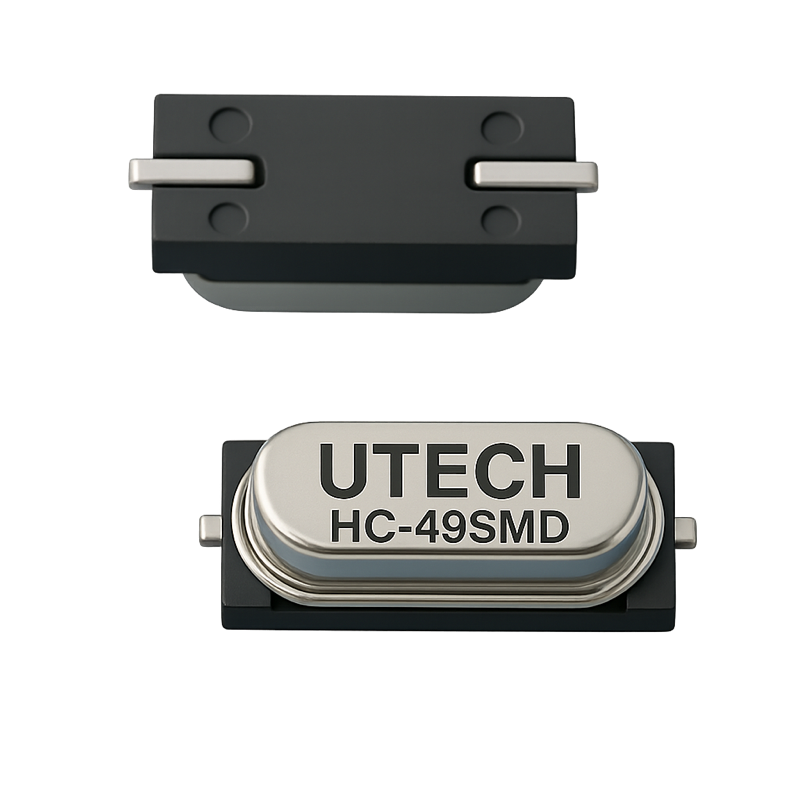

Q-HC-49SMD-13.575625 MHz-FU-12-30/50-2070

https://timingdevices.eu/web/image/product.template/8266/image_1920?unique=e35b5b5

Manufacturer: UTECH Electronics Tech. Co., Ltd.

Series: QRSD
Case size: HC-49SMD3 (11.40 x 4.70 x 4.20)
Frequency: 13.575625 MHz
Mode: fund. AT
Load Capacitance: 12.0 pF
Tolerance at +25°C: ±30 ppm
Tolerance over Temp.: ±50 ppm
Aging: ±3 ppm max. first year, ±10 ppm after 8 years
ESR max.: 40 Ohm

Operating Temp.: -20°C/+70°C

Package Unit: 1000 pcs/reel

0.0000 EUR 0.0 EUR 0.0000 EUR

Not Available For Sale

  • A 1.00 Manufacturer Name
  • A 1.01 Manufacturer Part No.
  • A 1.02 Description
  • A 1.04 Dimension & Type
  • Q 3.08 Equivalent Res. (ESR)
  • Q 3.15 Aging
  • Q 3.01 Nominal frequency (Fo)
  • Q 3.02 Oscillation Mode
  • Q 3.03 Load Capacitance (CL)
  • Q 3.04 Freq. Tol. max. (at +25℃)
  • Q 3.05 Freq. Stability Vs Temp. max.
  • Q 3.06 Operating Temp. Range
  • Q 3.07 Storage Temp. Range
  • Q 3.09 Shunt Capacitance C0 (pf max.)
  • Q 3.11 Drive Level (Typical)
  • Q 3.12 Drive Level (Max.)
  • Q 3.13 Insulation Resistance
  • Q 3.14 Air-tightness
  • Q 1.4 Version

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

ALL
A 1.01 Manufacturer Part No. - or QRSD013575J12A
A 1.00 Manufacturer Name UTECH
A 1.02 Description Quartz Crystal Resonator
A 1.04 Dimension & Type MHz | 49SMD
QUARZ
Q 3.08 Equivalent Res. (ESR) 40
Q 3.15 Aging -
Q 3.01 Nominal frequency (Fo) 13.575625 MHz
Q 3.02 Oscillation Mode Fundamental AT
Q 3.03 Load Capacitance (CL) 12.0 pF
Q 3.04 Freq. Tol. max. (at +25℃) 30 ppm
Q 3.05 Freq. Stability Vs Temp. max. 50 ppm
Q 3.06 Operating Temp. Range -20°C ~ +70°C
Q 3.07 Storage Temp. Range -55°C ~ +125°C
Q 3.09 Shunt Capacitance C0 (pf max.) -
Q 3.11 Drive Level (Typical) -
Q 3.12 Drive Level (Max.) -
Q 3.13 Insulation Resistance -
Q 3.14 Air-tightness -
Uncategorized
Q 1.4 Version -
