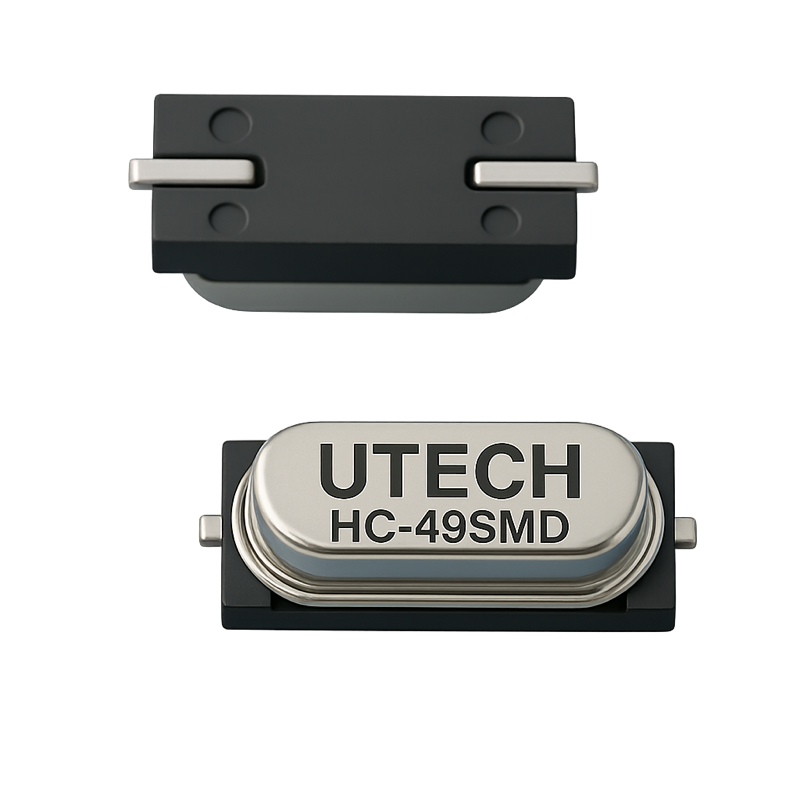

Q-HC-49SMD-10.368000 MHz-FU-10-10/10-1060

https://timingdevices.eu/web/image/product.template/8253/image_1920?unique=e35b5b5


Manufacturer: UTECH Electronics Tech. Co., Ltd.

Series: QRSD
Case size: HC-49SMD3 (11.40 x 4.70 x 4.20)
Frequency: 10.368000 MHz
Mode: fund. AT
Load Capacitance: 10 pF
Tolerance at +25°C: ±10 ppm
Tolerance over Temp.: ±10 ppm
Aging: ±3 ppm max. first year, ±10 ppm after 8 years
ESR max.: 40 Ohm

Condition of unwanted responce: RN/Rr < 2.5
Shunt Capacitance: C0 = 2.4 pF ±20%
Motional Capacitance: C1 = 9.4 fF ±15%
Pulling Sensitivity: S = 31,0 ppm/pF ±20%

Operating Temp.: -10°C/+60°C

Package Unit: 1000pcs/reel

0.0000 EUR 0.0 EUR 0.0000 EUR

Not Available For Sale

  • A 1.00 Manufacturer Name
  • A 1.01 Manufacturer Part No.
  • A 1.02 Description
  • A 1.03 Series
  • A 1.04 Dimension & Type
  • A 1.05 PU
  • A 1.06 Date Created
  • A 1.07 Last Update
  • Q 3.01 Nominal frequency (Fo)
  • Q 3.02 Oscillation Mode
  • Q 3.03 Load Capacitance (CL)
  • Q 3.04 Freq. Tol. max. (at +25℃)
  • Q 3.05 Freq. Stability Vs Temp. max.
  • Q 3.06 Operating Temp. Range
  • Q 3.07 Storage Temp. Range
  • Q 3.08 Equivalent Res. (ESR)
  • Q 3.09 Shunt Capacitance C0 (pf max.)
  • Q 3.10 Motional Capacitance C1 (fF max.)
  • Q 3.11 Drive Level (Typical)
  • Q 3.12 Drive Level (Max.)
  • Q 3.13 Insulation Resistance
  • Q 3.14 Air-tightness
  • Q 3.15 Aging
  • Q 1.4 Version

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

ALL
A 1.01 Manufacturer Part No. - or QRSD010368C10A
A 1.00 Manufacturer Name UTECH
A 1.02 Description Quartz Crystal Resonator
A 1.03 Series QRSD
A 1.04 Dimension & Type MHz | 49SMD
A 1.05 PU TR1000
A 1.06 Date Created -
A 1.07 Last Update -
QUARZ
Q 3.01 Nominal frequency (Fo) 10.368000 MHz
Q 3.02 Oscillation Mode Fundamental AT
Q 3.03 Load Capacitance (CL) 10.0 pF
Q 3.04 Freq. Tol. max. (at +25℃) 10 ppm
Q 3.05 Freq. Stability Vs Temp. max. 10 ppm
Q 3.06 Operating Temp. Range -10°C ~ +60°C
Q 3.07 Storage Temp. Range -55°C ~ +125°C
Q 3.08 Equivalent Res. (ESR) 40
Q 3.09 Shunt Capacitance C0 (pf max.) 5 pF max.
Q 3.10 Motional Capacitance C1 (fF max.) -
Q 3.11 Drive Level (Typical) 10 µW
Q 3.12 Drive Level (Max.) 500 µW
Q 3.13 Insulation Resistance More than 50 MΩ @ DC 100V
Q 3.14 Air-tightness Less than 1´10-9 Pa m3/s (Helium leak detector)
Q 3.15 Aging ±3 ppm max first year
Uncategorized
Q 1.4 Version -
