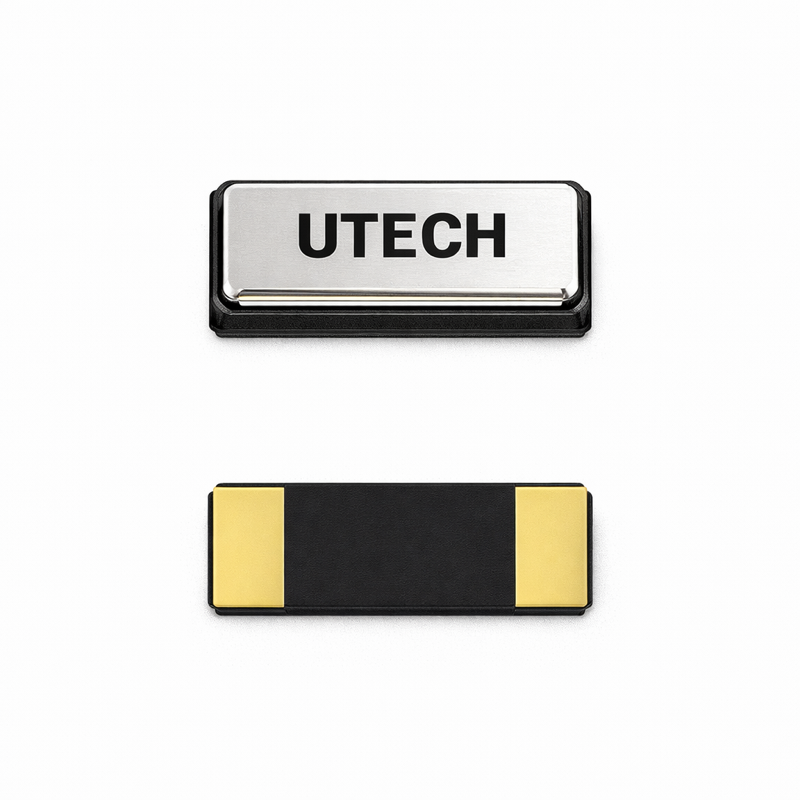

Q-SMD2012-C2-32.768 kHz-6-20-4085

https://timingdevices.eu/web/image/product.template/8393/image_1920?unique=e35b5b5

UTECH Electronics Technology Co., Ltd.

Case Size: SMD2012-C2
Frequency: 32.768 kHz
Mode: XY-Cut
Load Capacitance: 6.0 pF
Tolerance at +25 °C: ±20 ppm
Tolerance over Temp.: f (ppm) = TC · (25 °C - T)²
……[TC: -0,030ppm/°C² typ., -0,040ppm/°C² max.]
ESR max.: 90000 Ohm
Operating Temp.: -40°C/+85°C

Package Unit: 3000pcs/reel

0.0000 EUR 0.0 EUR 0.0000 EUR

Not Available For Sale

Quantity Unit Price
from 1 0.0000 EUR
from 31 0.5000 EUR
from 100 0.4500 EUR
from 1000 0.1500 EUR
from 3000 0.1300 EUR
  • A 1.00 Manufacturer Name
  • A 1.01 Manufacturer Part No.
  • A 1.02 Description
  • A 1.04 Dimension & Type
  • Q 3.08 Equivalent Res. (ESR)
  • Q 3.15 Aging
  • Q 3.01 Nominal frequency (Fo)
  • Q 3.02 Oscillation Mode
  • Q 3.03 Load Capacitance (CL)
  • Q 3.04 Freq. Tol. max. (at +25℃)
  • Q 3.05 Freq. Stability Vs Temp. max.
  • Q 3.06 Operating Temp. Range
  • Q 3.07 Storage Temp. Range
  • Q 3.09 Shunt Capacitance C0 (pf max.)
  • Q 3.11 Drive Level (Typical)
  • Q 3.12 Drive Level (Max.)
  • Q 3.13 Insulation Resistance
  • Q 3.14 Air-tightness
  • Q 1.4 Version

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

ALL
A 1.01 Manufacturer Part No. - or QTS2032768J06T
A 1.00 Manufacturer Name UTECH
A 1.02 Description Quartz Crystal Resonator
A 1.04 Dimension & Type kHz | SMD2012 (2.0 x 1.2 mm)
QUARZ
Q 3.08 Equivalent Res. (ESR) 0
Q 3.15 Aging -
Q 3.01 Nominal frequency (Fo) 32.768 kHz
Q 3.02 Oscillation Mode XY
Q 3.03 Load Capacitance (CL) 6.0 pF
Q 3.04 Freq. Tol. max. (at +25℃) 20 ppm
Q 3.05 Freq. Stability Vs Temp. max. -
Q 3.06 Operating Temp. Range -40°C ~ +85°C
Q 3.07 Storage Temp. Range -
Q 3.09 Shunt Capacitance C0 (pf max.) -
Q 3.11 Drive Level (Typical) -
Q 3.12 Drive Level (Max.) -
Q 3.13 Insulation Resistance -
Q 3.14 Air-tightness -
Uncategorized
Q 1.4 Version -
