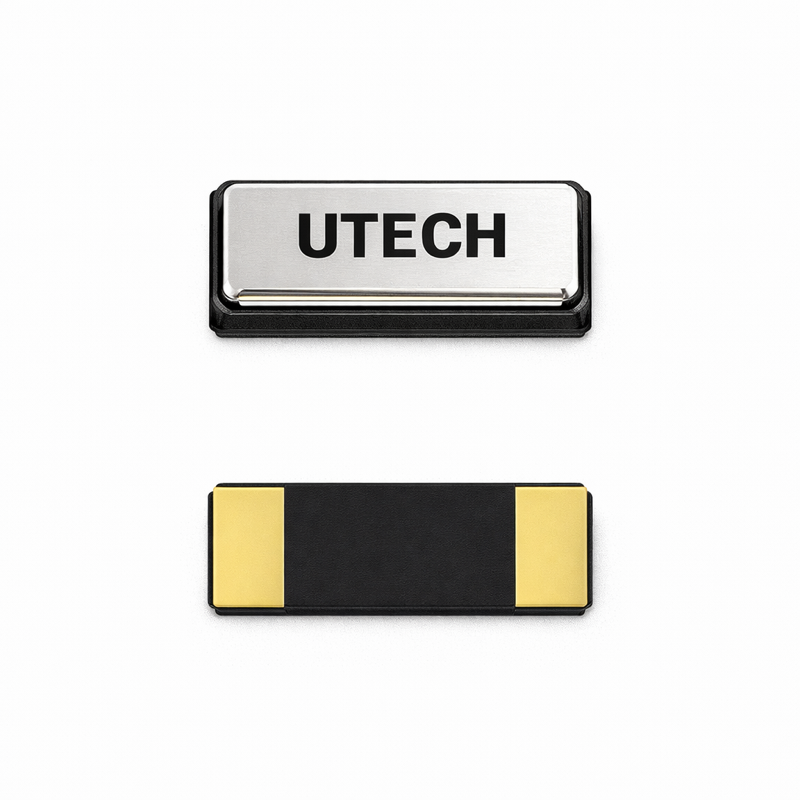

Q-SMD2012-C2-32.768 kHz-7-20-4085

Q-SMD2012-C2-32.768 kHz-7-20-4085

SUZHOU UTECH TECHNOLOGY CO.,LTD
Package Unit: 3000pcs/reel

Quantity	Unit Price
from 1	0.0000 EUR
from 31	0.5000 EUR
from 100	0.4500 EUR
from 1000	0.1500 EUR
from 3000	0.1300 EUR

A 1.00 Manufacturer Name
- UTECH
A 1.01 Manufacturer Part No.
A 1.02 Description
- Quartz Crystal Resonator
A 1.03 Series
A 1.04 Dimension & Type
- kHz | SMD2012 (2.0 x 1.2 mm)
A 1.05 PU
A 1.06 Date Created
- -
A 1.07 Last Update
- -
Q 3.01 Nominal frequency (Fo)
Q 3.02 Oscillation Mode
Q 3.03 Load Capacitance (CL)
Q 3.04 Freq. Tol. max. (at +25℃)
Q 3.05 Freq. Stability Vs Temp. max.
Q 3.06 Operating Temp. Range
Q 3.07 Storage Temp. Range
Q 3.08 Equivalent Res. (ESR)
Q 3.09 Shunt Capacitance C0 (pf max.)
Q 3.10 Motional Capacitance C1 (fF max.)
Q 3.11 Drive Level (Typical)
Q 3.12 Drive Level (Max.)
Q 3.13 Insulation Resistance
Q 3.14 Air-tightness
Q 3.15 Aging
Q 1.4 Version

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

ALL
A 1.01 Manufacturer Part No.	- or QTS2032768J07T
A 1.00 Manufacturer Name	UTECH
A 1.02 Description	Quartz Crystal Resonator
A 1.03 Series	QTS2
A 1.04 Dimension & Type	kHz \| SMD2012 (2.0 x 1.2 mm)
A 1.05 PU	TR3000
A 1.06 Date Created	-
A 1.07 Last Update	-

QUARZ
Q 3.01 Nominal frequency (Fo)	32.768 kHz
Q 3.02 Oscillation Mode	XY
Q 3.03 Load Capacitance (CL)	7.0 pF
Q 3.04 Freq. Tol. max. (at +25℃)	20 ppm
Q 3.05 Freq. Stability Vs Temp. max.	-
Q 3.06 Operating Temp. Range	-40°C ~ +85°C
Q 3.07 Storage Temp. Range	-40°C ~ +85°C
Q 3.08 Equivalent Res. (ESR)	-
Q 3.09 Shunt Capacitance C0 (pf max.)	1.3 pF
Q 3.10 Motional Capacitance C1 (fF max.)	-
Q 3.11 Drive Level (Typical)	1.0 µW max.
Q 3.12 Drive Level (Max.)	1.0 µW max.
Q 3.13 Insulation Resistance	More than 500 MΩ @ DC 100V
Q 3.14 Air-tightness	Less than 1´10-9 Pa m3/s (Helium leak detector)
Q 3.15 Aging	±3 ppm max first year

Uncategorized
Q 1.4 Version	-
