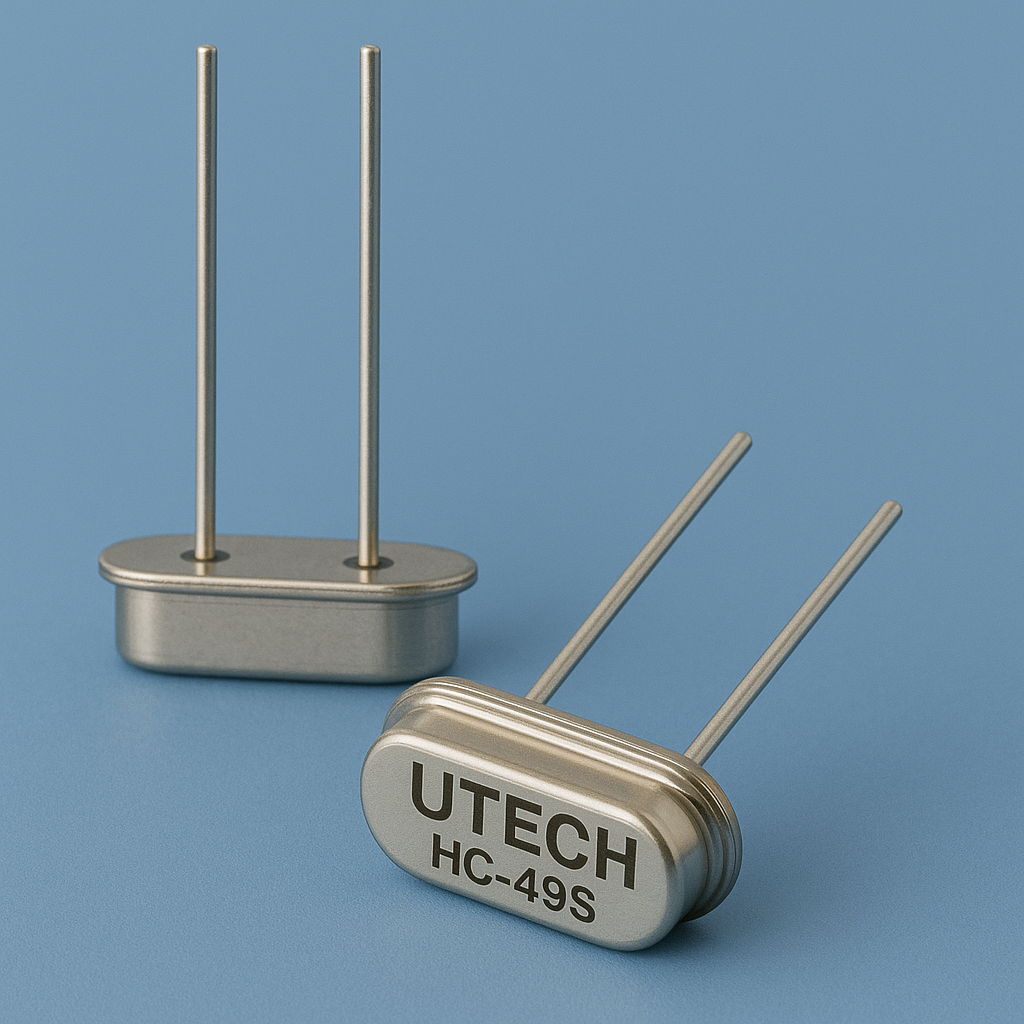

Q-HC-49S-26.000000 MHz-FU-17-10/15-2070 - Special Aging (bulk)

https://timingdevices.eu/web/image/product.template/8221/image_1920?unique=29695f4

'-
UTECH, HC-49/S, 26,000000 MHz, fund. AT, CL: 17pF,
Tolerance at +25°C: ±10ppm, Tolerance over Temp.: ±15ppm,
Aging: max. ±10 ppm over 11 years, “over all tolerance” = ±35ppm max.,
ESR max.: 15 Ohm, Operating Temp.: -20/+70°C, bulk

0.0000 EUR 0.0 EUR 0.0000 EUR

Not Available For Sale

  • A 1.00 Manufacturer Name
  • A 1.01 Manufacturer Part No.
  • A 1.02 Description
  • A 1.04 Dimension & Type
  • Q 3.01 Nominal frequency (Fo)
  • Q 3.02 Oscillation Mode
  • Q 3.03 Load Capacitance (CL)
  • Q 3.04 Freq. Tol. max. (at +25℃)
  • Q 3.05 Freq. Stability Vs Temp. max.:
  • Q 3.06 Operating Temp. Range
  • Q 3.07 Storage Temp. Range
  • Q 3.08 Equivalent Res. (ESR)
  • Q 3.09 Shunt Capacitance C0 (pf max.)
  • Q 3.11 Drive Level (Typical)
  • Q 3.12 Drive Level (Max.)
  • Q 3.13 Insulation Resistance
  • Q 3.14 Air-tightness
  • Q 3.15 Aging
  • Q 1.4 Version

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

ALL
A 1.00 Manufacturer Name UTECH
A 1.01 Manufacturer Part No. -
A 1.02 Description Quartz Crystal Resonator
A 1.04 Dimension & Type -
QUARZ
Q 3.01 Nominal frequency (Fo) 26.000000 MHz
Q 3.02 Oscillation Mode Fundamental
Q 3.03 Load Capacitance (CL) 17.0 pF
Q 3.04 Freq. Tol. max. (at +25℃) 10 ppm
Q 3.05 Freq. Stability Vs Temp. max.: 15 ppm
Q 3.06 Operating Temp. Range -20°C ~ +70°C
Q 3.07 Storage Temp. Range -55°C ~ +125°C
Q 3.08 Equivalent Res. (ESR) 15
Q 3.09 Shunt Capacitance C0 (pf max.) -
Q 3.11 Drive Level (Typical) -
Q 3.12 Drive Level (Max.) -
Q 3.13 Insulation Resistance -
Q 3.14 Air-tightness -
Q 3.15 Aging -
Uncategorized
Q 1.4 Version -
